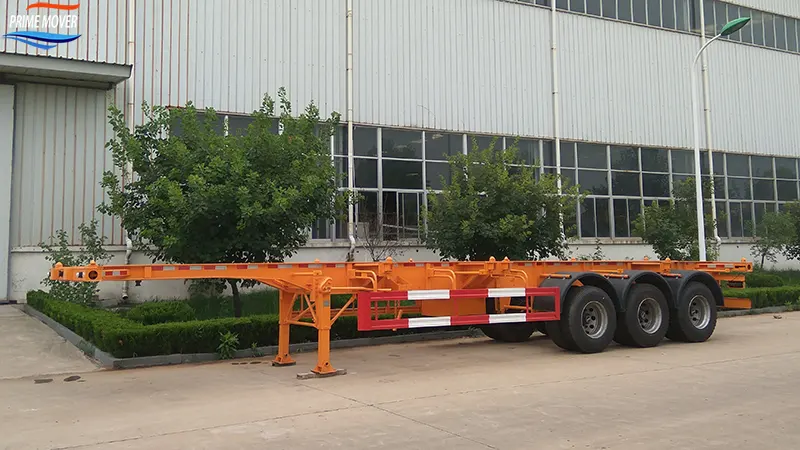

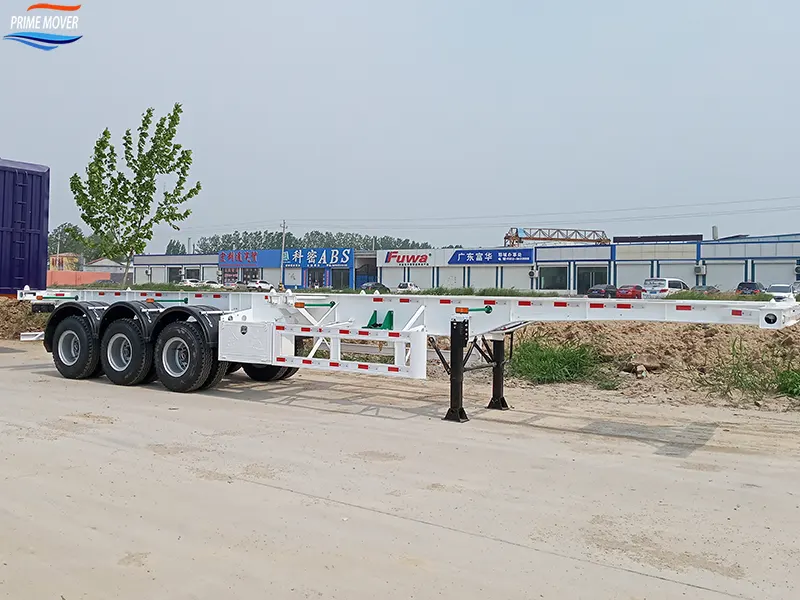

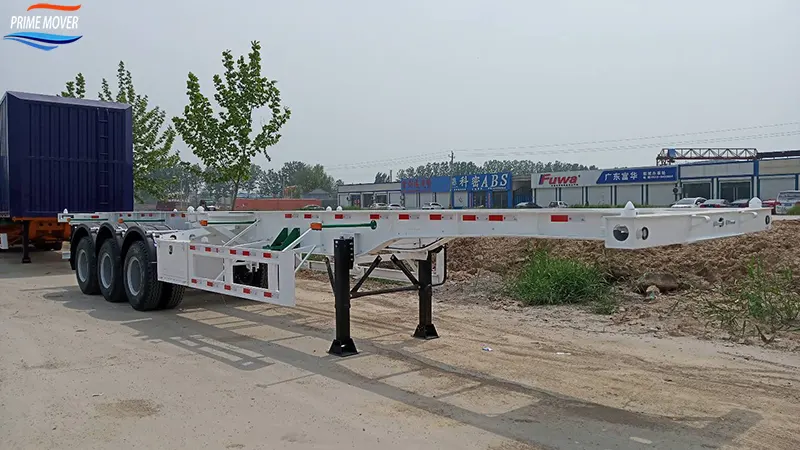

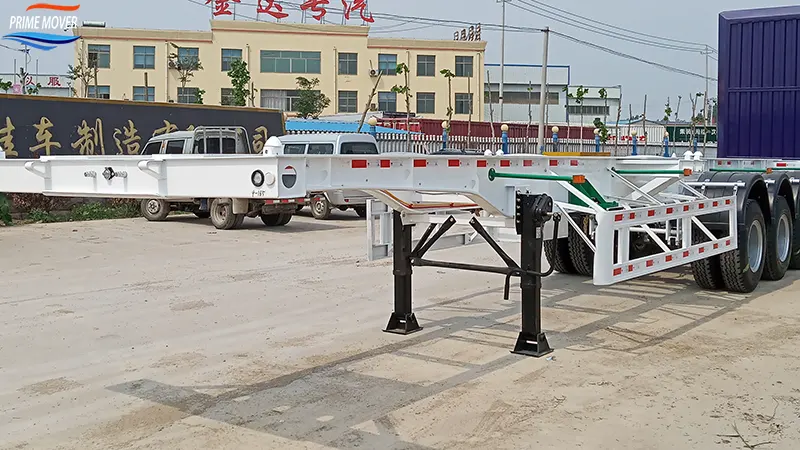

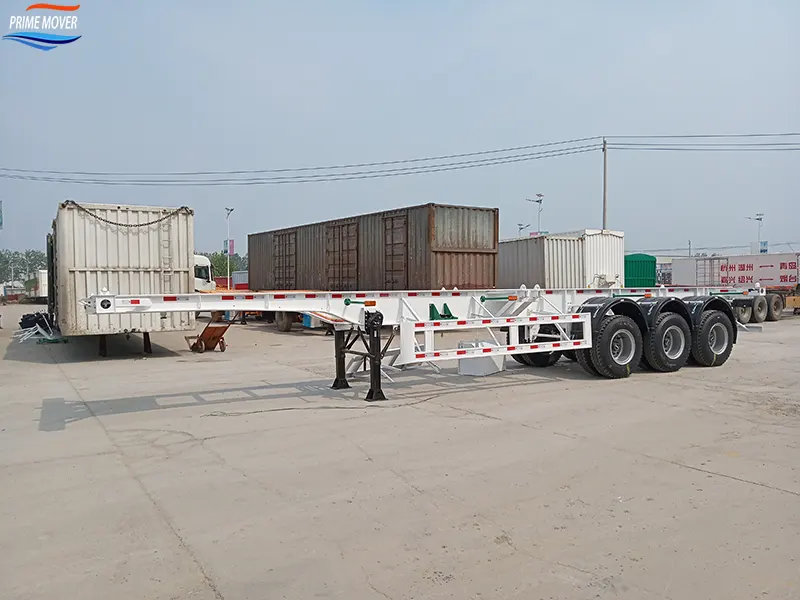

40-Foot Standard Container Skeleton Semi-Trailer – The Intermodal Transport Backbone

Purpose-built for ISO container logistics with lightweight skeleton design and multi-container versatility

Product Overview

Prime Mover Industries introduces its 40-Foot Standard Container Skeleton Semi-Trailer – a purpose-built intermodal transport solution engineered for the efficient movement of ISO containers across the global logistics network. Unlike conventional flatbed trailers, this skeleton-type chassis features an exposed steel frame construction with no floor or side walls, delivering a 30–40% weight reduction compared to standard flatbeds while maintaining the structural strength required for heavy container loads.

Designed specifically for the logistics ecosystem supporting ships, ports, highways, bridges, tunnels, and multimodal transport, this 40-foot skeleton semi-trailer is the workhorse of intermodal freight – capable of transporting one 40ft container, two 20ft containers, or a single 20ft container with equal efficiency. Its barebones design enables rapid loading and unloading, seamless modal transfers between sea, rail, and road transport, and the direct transfer of goods from the consignor's warehouse to the consignee's warehouse without intermediate unpacking.

With the global intermodal container chassis market valued at approximately $1.4 billion in 2024 and projected to reach $2 billion by 2030 at a CAGR of 6.5% , the 40-foot skeleton semi-trailer remains the most widely deployed chassis type in international container logistics. Prime Mover Industries delivers this essential equipment with the quality, durability, and customization that fleet operators demand.

Key Specifications

Specification	Details
Model	TSC-40-3A Standard Skeleton
Overall Length	12,400 – 12,500 mm
Overall Width	2,480 – 2,500 mm
Overall Height	1,410 – 1,550 mm
Tare Weight	Approx. 5,300 – 5,800 kg
Max. Payload	40,000 – 70,000 kg
Number of Axles	3 (tri-axle configuration)
Axle Capacity	3 × 13 tons
Main Beam Material	High-tensile Q345B steel
Main Beam Specification	500mm height; top flange 14–16mm; bottom flange 16–18mm; web 6–10mm
King Pin	JOST, 2″ (50mm) or 3.5″ (90mm), bolted
Landing Gear	JOST D200T / E100, 28-ton capacity, two-speed

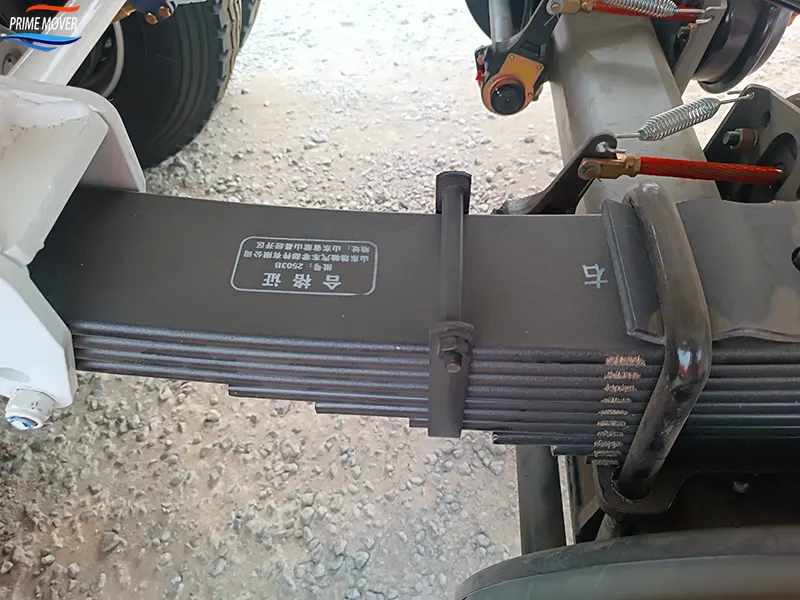

Suspension	Mechanical leaf spring (standard) – Air suspension optional
Axle Brand	FUWA / BPW / customer-specified
Tires	12R22.5 tubeless, 12 units
Brake System	Dual-line pneumatic air brake, WABCO relay valve
Twist Locks	12 ISO retractable units (supports 1×40ft or 2×20ft containers)
Electrical System	24V LED lighting, 7-pin ISO 1185 socket
Certifications	ISO 9001, ISO/TS16949, CCC, ECE, GCC, DOT, CE

Design Philosophy – Strength Through Simplicity

The Skeleton Advantage: Lightweight Without Compromise

The defining feature of our 40-foot container skeleton semi-trailer is its barebones design. By eliminating the floor, side walls, and unnecessary structural elements found on conventional flatbeds, the skeleton chassis achieves a tare weight of just 5,300–5,800 kg – significantly lighter than standard flatbed trailers.

This weight reduction delivers three critical advantages:

• Increased payload capacity – More of the gross vehicle weight can be allocated to container cargo
• Improved fuel efficiency – Lighter trailers require less energy to move, reducing operating costs
• Enhanced maneuverability – Reduced weight improves handling, particularly in tight port and yard environments

The reduced deadweight does not come at the expense of strength. Our skeleton chassis is engineered with high-tensile steel and precision welding to maintain the structural integrity required for heavy container transport.

High-Tensile Steel Chassis Construction

The backbone of our skeleton semi-trailer is a robust chassis fabricated from high-tensile Q345B low-alloy steel. The main beams are welded into an I-section using automatic submerged-arc welding processes – a technique that delivers superior weld penetration, consistency, and strength compared to manual welding.

Key chassis specifications:

• Beam height: 500mm
• Top flange: 14–16mm thickness
• Bottom flange: 16–18mm thickness
• Web: 6–10mm thickness

The integral long beam at the position of the intermediate container locking device improves the carrying capacity of the container locking system, ensuring secure container retention under all operating conditions.

ISO Container Securing System

At the heart of the skeleton trailer's functionality is its ISO-standard container securing system. Our trailers are equipped with 12 ISO retractable twist locks, with four units in fasten mode and eight units in up-down mode.

This twist lock configuration enables:

• One 40ft container – using all 12 locks
• Two 20ft containers – using 4 locks per container
• Central locks that can be laid down when not in use

The ISO-standard twist locks are compatible with containers worldwide and feature an additional protection switch to prevent accidental operation. Reinforced corner castings handle heavy loads, ensuring secure container retention even under extreme conditions.

Premium Component Integration

We equip every 40-foot skeleton semi-trailer with world-class components from trusted global brands:

Component	Specification	Brand
King Pin	2″ or 3.5″, bolted	JOST
Landing Gear	28-ton, two-speed	JOST D200T / E100
Axles	13-ton capacity	FUWA / BPW
Brake System	Dual-line pneumatic	WABCO relay valve
Brake Chambers	T30/30 spring brake	WABCO / local brand
Tires	12R22.5 tubeless	Premium brand
Electrical	24V LED lighting	7-pin ISO 1185

These premium components ensure reliable performance, easy parts availability, and reduced total cost of ownership over the trailer's lifetime.

Applications – The Intermodal Transport Ecosystem

The 40-foot standard container skeleton semi-trailer serves as the critical link in the global intermodal transport chain:

Setting	Application
Ports & Terminals	Ship-to-shore container transfer, yard shifting, terminal operations
Highways	Long-distance container haulage between ports and inland destinations
Rail Interchange	Container transfer between road and rail modes
Bridges & Tunnels	Container transport through restricted infrastructure
Warehouses & Distribution Centers	Direct container delivery from consignor to consignee
Cross-Docking Facilities	Rapid container transfer and sorting operations
Intermodal Yards	Container staging and transfer between transport modes

The skeleton trailer enables seamless modal transfers – goods are loaded into a container at the consignor's warehouse and transported via skeleton trailer to the interchange station, where the entire container can be unloaded without removing the goods. This eliminates the need for intermediate unpacking and repacking, reducing handling costs and cargo damage risks.

3-Axle Configuration – Stability for Heavy Container Loads

The tri-axle configuration with three 13-ton axles delivers superior load distribution and stability for heavy container transport:

Feature	Benefit for Container Transport
Weight Distribution	Three axles distribute the 40–70 ton payload evenly, reducing stress on individual components and road surfaces
Road Stability	Enhanced stability for tall, heavy containers – critical for highway and bridge transport
Braking Performance	Dual-line air brake system with WABCO valves across all three axles delivers superior stopping power
Tire Longevity	Load spread across 12 tires, reducing per-tire wear and extending service life
Regulatory Compliance	Tri-axle configuration meets weight distribution requirements in most jurisdictions

The wheelbase configuration of 7,545mm + 1,310mm + 1,310mm ensures optimal weight distribution and handling characteristics for 40-foot container operations.

Optional Front Axle Lift

For enhanced maneuverability in limited working areas, an optional front axle lift is available. When the front axle is lifted:

• Turning radius is reduced – making it much easier to navigate in tight port and yard spaces
• Tire wear is reduced – when running without payload, tire contact with the ground is minimized
• Fuel efficiency is improved – reduced rolling resistance during empty operation

Customization Options

Prime Mover Industries offers comprehensive customization to match your specific operational requirements:

• Axle configuration – 2-axle, 3-axle (standard), or 4-axle options
• Axle brands – FUWA (standard), BPW, or customer-specified
• Suspension – Mechanical leaf spring (standard) or air suspension
• King pin – 2″ (50mm) or 3.5″ (90mm), bolted or welded
• Twist locks – 4, 8, or 12 sets (lifting or screw type)
• Tire specifications – 12R22.5, 11.00R20, or 315/80R22.5
• Brake system – Standard dual-line or EBS with optional ABS
• Lighting – Standard incandescent or LED package
• Landing gear – JOST or Chinese brand
• Color – Any RAL code
• Container compatibility – 20ft, 40ft, 45ft, or dual-container configurations
• Additional features – Toolboxes, spare wheel holder, front axle lift system

Quality Assurance & Certifications

Every Prime Mover Industries 40-foot container skeleton semi-trailer is manufactured to the highest quality standards:

• ISO 9001:2015 – Quality Management System
• ISO/TS16949 – Automotive Industry Quality Management
• CCC – China Compulsory Certification
• ECE – European safety and lighting compliance
• GCC – Gulf Cooperation Council market approval
• DOT – US Department of Transportation compliance
• CE – European conformity marking

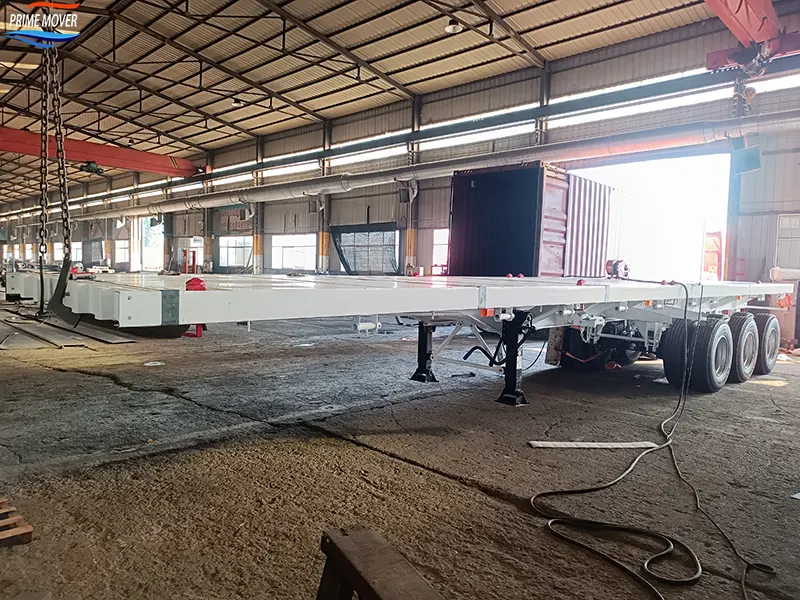

• 100% factory inspection – Every unit undergoes dimensional verification, load testing, and brake system validation
• Third-party inspection – Available via BV, SGS, or TÜV at customer request

Why Choose Prime Mover Industries?

Advantage	Benefit
Skeleton Design Expertise	Purpose-engineered lightweight chassis – 30–40% lighter than standard flatbeds
High-Tensile Steel Construction	Q345B steel with automatic submerged-arc welding for superior strength and durability
ISO Container Compatibility	12 ISO twist locks supporting 1×40ft or 2×20ft containers
Premium Components	JOST kingpin/landing gear, WABCO brakes, FUWA/BPW axles – lower TCO
Proven Durability	Designed for demanding port, highway, and intermodal operations
Global Export Track Record	Shipped to customers across 5 continents
Short Lead Times	25–35 days for standard orders
Competitive Pricing	Advanced manufacturing with cost-efficient production
Comprehensive Support	Spare parts availability and responsive after-sales service

Technical Specifications Summary

Parameter	Value
Length	12,400 – 12,500 mm
Width	2,480 – 2,500 mm
Height	1,410 – 1,550 mm
Tare Weight	~5,300 – 5,800 kg
Max Payload	40,000 – 70,000 kg
Axles	3 × 13T (FUWA/BPW)
Suspension	Mechanical / Air (optional)
Main Beam	Q345B high-tensile steel, I-section
King Pin	JOST 2″ or 3.5″
Brake System	WABCO dual-line
Twist Locks	12 ISO retractable
Tires	12R22.5 (12 pcs)
Certifications	ISO 9001, ISO/TS16949, CCC, ECE, GCC, DOT, CE
