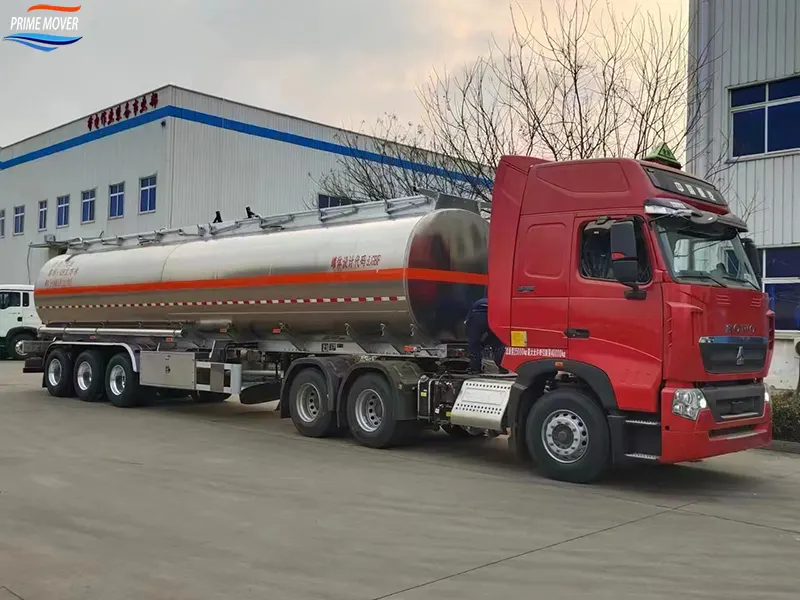

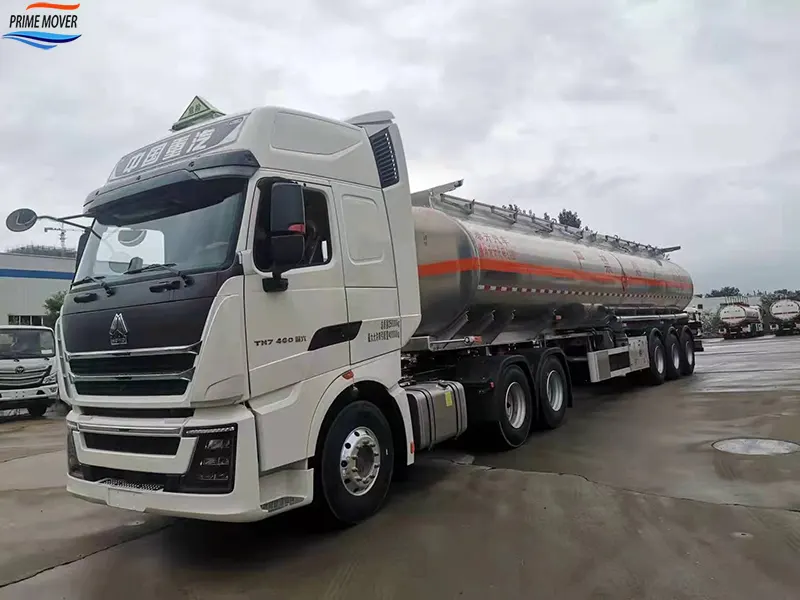

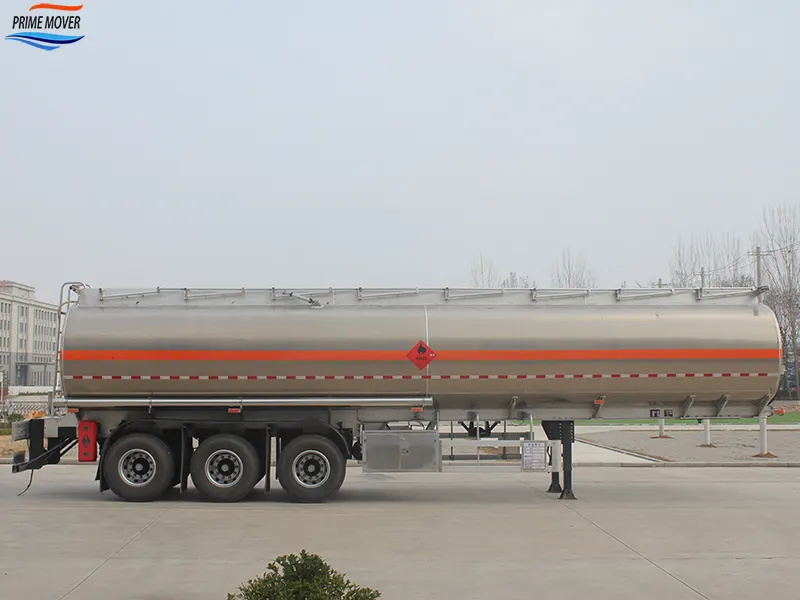

Aluminum Alloy Oil Tanker Semi-Trailer – Lightweight Liquid Transport Solution

Engineered for fuel transport with lightweight aluminum construction, superior corrosion resistance, and multi-compartment versatility

Product Overview

Prime Mover Industries presents its Aluminum Alloy Oil Tanker Semi-Trailer – a modern, lightweight liquid transport solution engineered for the safe and efficient movement of petroleum products, chemicals, and food-grade liquids. Compared to traditional carbon steel tankers, aluminum alloy tanker trailers deliver significant weight savings – reducing overall vehicle weight while maintaining excellent strength and corrosion resistance.

Liquid tanker semi-trailers are new-type, high-standard, lightweight tankers made of stainless steel and aluminum alloy, including oil tankers, chemical liquid carriers, flammable liquid carriers, food tankers, and asphalt tankers. Aluminum alloy offers stable chemical properties and natural oxidation resistance, making it ideal for transporting liquids prone to causing rust in steel tanks. The corrosion resistance of aluminum alloy is more than 70% higher than that of ordinary carbon steel, greatly reducing maintenance costs.

Aluminum alloy tank semi-trailers occupy a critical role across liquid bulk logistics, offering a combination of structural lightness, corrosion resistance, and formability that aligns with modern operational and regulatory demands. The global aluminum alloy tank semi-trailer market was valued at USD 2.16 billion in 2025 and is projected to grow to USD 2.25 billion in 2026.

Vehicle Parameters

Basic Specifications

Parameter	Specification
Overall Length	10,500 – 12,500 mm (customizable)
Overall Width	2,500 mm
Overall Height	3,500 – 3,980 mm
Total Weight (GVW)	40,000 kg
Curb Weight (Tare Weight)	6,000 – 7,500 kg (depending on configuration)
Rated Payload	30 – 40 tons
Tank Volume	30,000 – 50,000 liters (customizable up to 60,000L)
Number of Axles	2 – 4 axles (3-axle standard)
Axle Capacity	3 × 13 tons (FUWA / BPW / customer-specified)

Tank Specifications

Component	Specification
Tank Material	High-strength aluminum alloy (5454 / 5182 / 5052)
Tank Body Thickness	5 – 6 mm
End Plate Thickness	6 – 7 mm (hydro-formed dished ends)
Tank Shape	Elliptical / Round
Compartment Configuration	1 – 9 compartments (2–6 compartments standard, customizable)
Anti-Surge Baffles	Corrugated baffles every 2 meters
Manhole Cover	Aluminum alloy European-standard manhole (20″ and 16″)
Bottom Valve	Aluminum alloy emergency shut-off valve
Discharge Valve	Aluminum alloy discharge valve

Chassis & Suspension

Component	Specification
Main Beam Material	Q345B high-strength low-alloy steel
Suspension	Mechanical leaf spring (standard) – Air suspension optional
Leaf Spring	10 layers × 90mm × 13mm
Axle Brand	FUWA / BPW (13–16 ton capacity per axle)
Tires	12R22.5 (12 pcs for 3-axle configuration)
King Pin	JOST, 2″ or 3.5″, bolt-in type

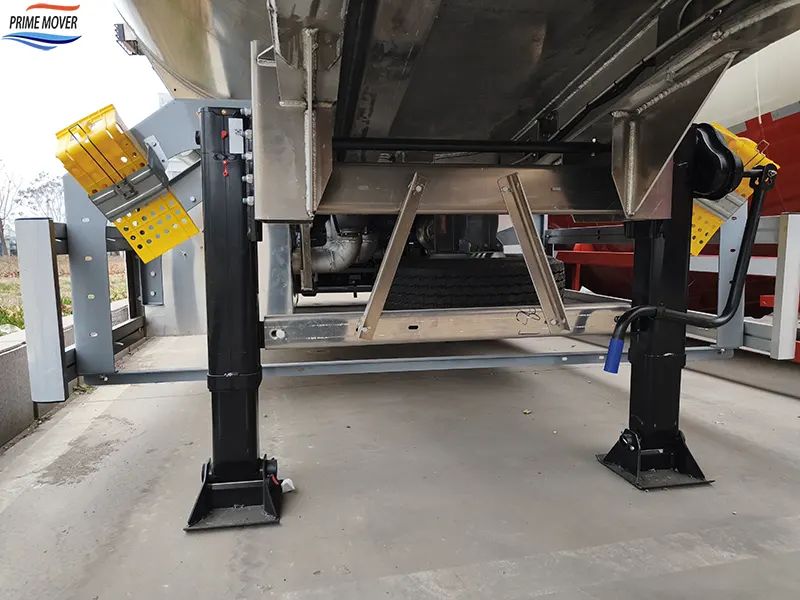

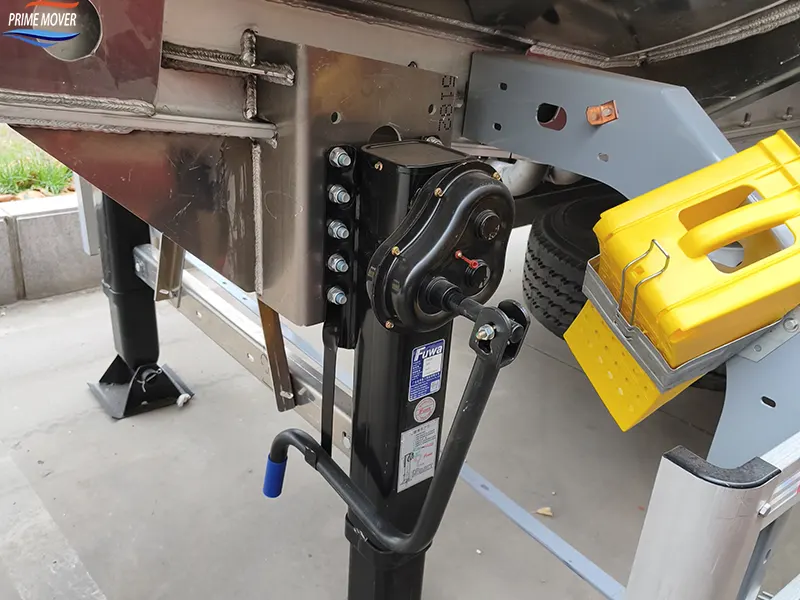

Landing Gear	JOST, 28-ton capacity, two-speed

Brake & Electrical Systems

Component	Specification
Brake System	WABCO air brake system
ABS	WABCO ABS braking system (standard)
Electrical System	24V lighting system
Anti-Static System	Anti-static grounding cable

Surface Treatment & Finish

Process	Specification
Tank Interior	Smooth inner surface – no internal coating required
Tank Exterior	Natural aluminum finish – no painting required

Certifications

Certification	Details
ISO 9001:2015	Quality Management System
ISO/TS16949	Automotive Industry Quality Management
CCC	China Compulsory Certification
ECE	European safety and lighting compliance
GCC	Gulf Cooperation Council market approval
DOT	US Department of Transportation compliance
CE	European conformity marking
ADR	European Agreement concerning the International Carriage of Dangerous Goods

3. Application Fields

The Aluminum Alloy Oil Tanker Semi-Trailer is the preferred solution for industries requiring lightweight, corrosion-resistant liquid transport.

Petroleum & Fuel Transport

• Gasoline, diesel, and jet fuel – Distribution from refineries to fuel stations
• Crude oil – Long-distance transport from oil fields to refineries
• Kerosene and lubricants – Industrial and aviation fuel delivery
• Fuel oil – Industrial and marine fuel distribution

Chemical Transport

Aluminum alloy tankers can transport a variety of non-corrosive chemicals and solvents. The natural oxidation resistance of aluminum makes it ideal for transporting liquids prone to causing rust in steel tanks.

• Methanol, ethanol, and ethylene glycol
• Hydrogen peroxide solution
• Non-corrosive chemicals and solvents – Where aluminum alloy offers safer, cleaner transport

Food-Grade Liquid Transport

Aluminum tanker trailers are ideal for transporting food-grade liquids, as the smooth inner surface enhances unloading efficiency and makes cleaning easier.

• Edible oils – Palm oil, cooking oil, vegetable oil
• Milk and dairy products
• Beverages – Juice, syrup, liquid sugar
• Drinking water – No odor, no harmful substances precipitated

Other Liquid Transport Applications

• Bulk cement
• Liquid asphalt / bitumen
• Waste liquids and industrial fluids

4. Key Advantages

Up to 35% Lighter Than Carbon Steel

Aluminum is about one-third the density of steel, significantly reducing the trailer's tare weight. An aluminum alloy tanker trailer can be up to 35% lighter than traditional carbon steel trailers. For a 45-cubic-meter tank, the mass is reduced by over 3 tons compared to a carbon steel tank. This weight savings translates directly to higher legally allowable payload, reduced trips for the same transport volume, and better revenue per kilometer.

Superior Corrosion Resistance – 70% Higher Than Carbon Steel

Aluminum naturally forms an oxide layer that prevents corrosion. The corrosion resistance of aluminum alloy is more than 70% higher than that of ordinary carbon steel. Unlike steel tanks, aluminum tanks do not require extensive internal coatings or anti-corrosion treatments, reducing long-term maintenance costs. The tank body requires no painting – the natural aluminum finish is both functional and aesthetically pleasing.

Significant Fuel Savings

According to the European Aluminum Association, every time the total mass of a vehicle is reduced by 1 ton, the vehicle saves 0.6L of diesel per 100km. For an aluminum alloy tanker with a 45-cubic-meter capacity, with an annual operating range of 120,000km, at least 1,100L of diesel can be saved each year. A lighter trailer also results in reduced tire wear and lower engine strain.

Longer Service Life

The typical service life of an aluminum alloy semi-trailer truck is 15–20 years – significantly longer than carbon steel alternatives. The corrosion-resistant aluminum structure offers longer service life and lower maintenance compared to carbon steel flatbed semi-trailers or stainless steel trailers.

Multi-Compartment Versatility

Available with 2 to 9 compartments, our tankers can transport different liquids simultaneously in a single trip – maximizing operational efficiency and reducing logistics costs.

Safety-First Engineering

• Anti-surge baffles – Corrugated baffles every 2 meters mitigate liquid surge during braking, reducing inertial impact on the vehicle chassis
• Emergency shut-off valves – Quickly close in case of emergency to prevent liquid leaks
• Overfill prevention devices – Stop spills during loading or transportation
• Static eliminators – Prevent fire or explosion risks from static build-up
• Fire-retardant exhaust cap and anti-static grounding cable
• Low center of gravity design – Square cross-section reduces center of gravity by 100mm, increasing roll angle to 30 degrees (>23 degrees standard) to effectively prevent rollover
• Anti-rollover safety and stability system – Monitors vehicle driving status in real time and applies braking force to specific wheels when the system detects the vehicle is about to lose control

Low Maintenance Costs

The enhanced corrosion resistance greatly reduces maintenance costs. The smooth inner surface makes cleaning easier – an essential feature for fuel and food-grade transport.

Quick Return on Investment

Aluminum tank trailers can recover investment costs in a short time and create more economic revenue and comprehensive benefits than carbon steel tank trucks.

How to Use – Operating Guide

Safe and efficient operation of an aluminum alloy oil tanker semi-trailer requires following proper procedures.

Pre-Operation Checks

Before each use, conduct a thorough inspection:

• Tank integrity – Inspect the tank shell for cracks, dents, corrosion, or leaks
• Weld seams – Check weld seams and reinforcements for structural integrity
• Valves and fittings – Ensure all valves, including the bottom discharge valve and emergency shut-off valve, are functioning properly
• Hoses and connections – Check for wear, cracks, or loose connections
• Manhole cover – Ensure the manhole cover is securely sealed
• Static discharge device – Verify proper grounding connection
• Tires – Check tire pressure and inspect for damage
• Brakes and lights – Test brake performance and ensure all lights are functioning

Loading Procedure

• Position the trailer on level, stable ground
• Connect static discharge – Ground the trailer before loading
• Open manhole cover – Ensure proper ventilation
• Load the liquid – Follow proper loading procedures for the specific cargo
• Monitor fill levels – Do not overfill; leave appropriate vapor space
• Secure manhole cover – Close and seal after loading
• Inspect for leaks – Check all seals and connections

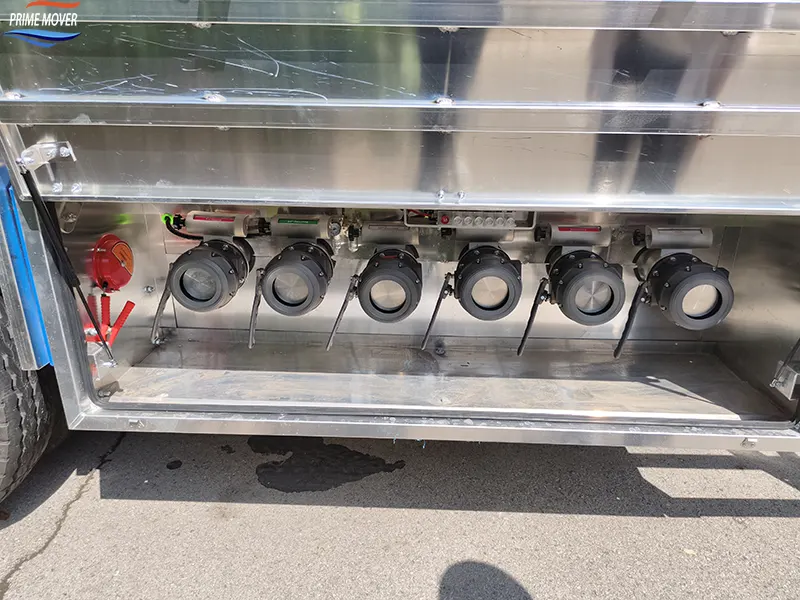

Unloading Procedure

• Position the trailer at the unloading point
• Connect static discharge – Ground the trailer before unloading
• Connect discharge hose – Securely attach to the discharge valve
• Open discharge valve – Control flow rate to prevent surging
• Monitor unloading – Ensure complete discharge
• Close valve – Securely close after unloading
• Disconnect and stow – Properly store hoses and equipment

Critical Safety Rules

• Always ground the trailer before loading or unloading flammable liquids
• Never smoke or use open flames near the tanker
• Never overfill – always leave appropriate vapor space
• Never transport incompatible materials – ensure cargo is compatible with aluminum alloy
• Never leave valves open when not in use
• Never exceed rated payload capacity

Maintenance & Care

Regular maintenance is critical for aluminum alloy tanker trailers as it directly impacts safety, product purity, and longevity. Up to 50% of operational failures can be attributed to inadequate maintenance.

Tank Inspections

Visual Inspection for Cracks and Weld Integrity:

• Regularly inspect the tank shell for cracks, dents, corrosion, or leaks
• Check weld seams and reinforcements for structural integrity
• Test the pump operation and pressure
• Check for oil leaks or abnormal noise
• Ensure all filters and strainers are clean

Cleaning and Residue Removal

• To ensure the cleanliness of the oil tank, the oil tank and the oil delivery system should be cleaned regularly
• The inner and outer joints of the oil delivery hose should be regularly smeared with lubricating oil
• For washing aluminum, use water and a suitable cleaner
• Remove all accumulated dirt and grime
• Use mineral spirits paint thinner (or its equivalent) to remove grease and oil from all surfaces

Valve, Pump, and Hose Inspection

• Strictly follow the pump's operation and maintenance instructions
• Inspect valves and hoses for wear
• Regularly inspect the delivery system components

Lubrication Schedule

It is recommended to lubricate the moving parts of an oil tank semi-trailer at regular intervals, such as every 10,000 to 15,000 miles or every six months.

Regular Inspections

Daily/Pre-Operation:

• Conduct regular inspections of the trailer to check for any signs of wear, damage, or leaks
• Inspect the tractor, the semi-trailer, and semi-trailer parts periodically for damage or signs of pending failure
• Damaged or broken parts must be repaired or replaced at once

Monthly:

• Check tire pressure at room temperature; if below standard, replenish promptly
• Inspect tires for cracks and abnormal wear
• Check all fasteners and bolts

Quarterly:

• Inspect safety accessories – safety valves, pressure gauges, level gauges, emergency shut-off valves, pipe joints, and static discharge devices
• Check for leaks or damage in all piping and valves

Annually:

• Conduct a comprehensive inspection by qualified technicians
• Test all safety systems
• Verify certifications and compliance

Additional Maintenance Tips

• Follow the manual – Adhere to manufacturer-specific maintenance recommendations
• Fix issues promptly – Address small problems early to avoid costly repairs
• Professional inspections – Schedule annual checks with qualified technicians
• Keep maintenance logs – Track repairs and replacements over time

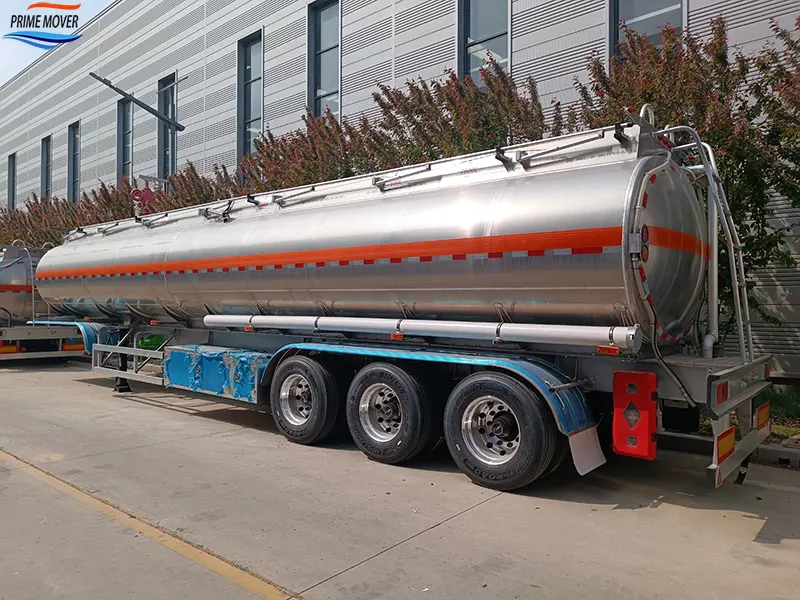

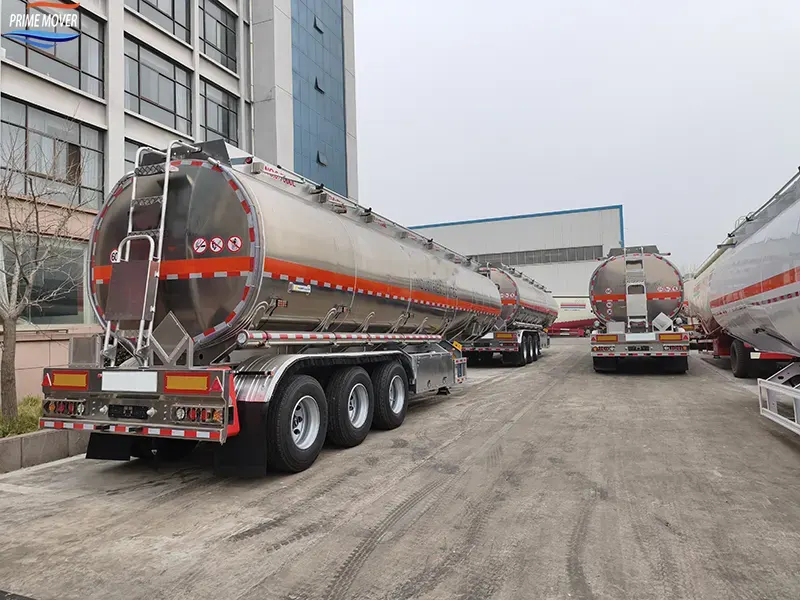

Logistics & Shipping

Prime Mover Industries has extensive experience in exporting aluminum alloy oil tanker semi-trailers to customers worldwide.

Shipping Methods

• Ro-Ro Ship (Roll-on/Roll-off) – Trailers are driven directly onto the vessel; the most common and cost-effective method
• Bulk Ship – Multiple trailers shipped together in a bulk carrier for large orders
• 40HC Container Ship – Trailers are partially disassembled and packed into high-cube containers
• Flat Rack Container – For oversized or heavy configurations

Major Export Destinations

Our aluminum alloy oil tanker semi-trailers have been exported to markets across:

• Africa – Including Nigeria, South Africa, Ghana, Sudan
• Southeast Asia – Including Indonesia, Malaysia, Philippines, Vietnam
• South America – Including Brazil, Argentina, Chile, Peru
• Middle East – Including Saudi Arabia, UAE, Qatar
• Europe – Including EU countries with ECE compliance

Lead Times

• Standard models – Ship within 20–30 days
• Custom builds – May take up to 45 days depending on specifications

Packaging & Protection

• Trailers are securely lashed and protected for ocean transport
• All vulnerable components are wrapped and protected against corrosion during transit
• Nude shipping or protective coating available

Port of Loading

Shipments are typically dispatched from major Chinese ports, including Qingdao, Shanghai, and Tianjin – with Qingdao being the primary export hub.

Documentation

Complete export documentation provided:

• Commercial invoice
• Packing list
• Bill of lading
• Certificate of origin
• Technical specifications
• Compliance certificates (ISO, CE, ECE, DOT, GCC, ADR)

8. After-Sales Service & Warranty

Prime Mover Industries is committed to providing comprehensive after-sales support to ensure your aluminum alloy oil tanker semi-trailer delivers reliable performance throughout its service life.

Warranty Coverage

• Standard Warranty – 12-month global warranty covering manufacturing defects
• Structural Warranty – Main structure warranty available
• Tank Warranty – Extended warranty options for aluminum alloy tank
• Component Warranty – Premium components (JOST, WABCO, FUWA/BPW) covered by manufacturer warranties

Technical Support

• 24/7 Online Technical Support – Video guidance and phone consultations for maintenance and troubleshooting
• Remote Diagnostics – Assistance in identifying and resolving issues
• Technical Documentation – Comprehensive manuals and guides provided with each trailer

Spare Parts Support

• Genuine Parts – Access to authentic replacement parts for all components
• Global Parts Network – Leveraging partnerships with JOST, WABCO, FUWA, and BPW for worldwide parts availability
• Rapid Dispatch – Quick shipping of urgent spare parts requirements

Service Options

• On-site Training – Available for large fleet orders
• Factory Service – Trailers can be returned to the factory for major repairs
• Authorized Service Centers – Network of service partners in key markets

Quality Commitment

• ISO 9001:2015 certified quality management system

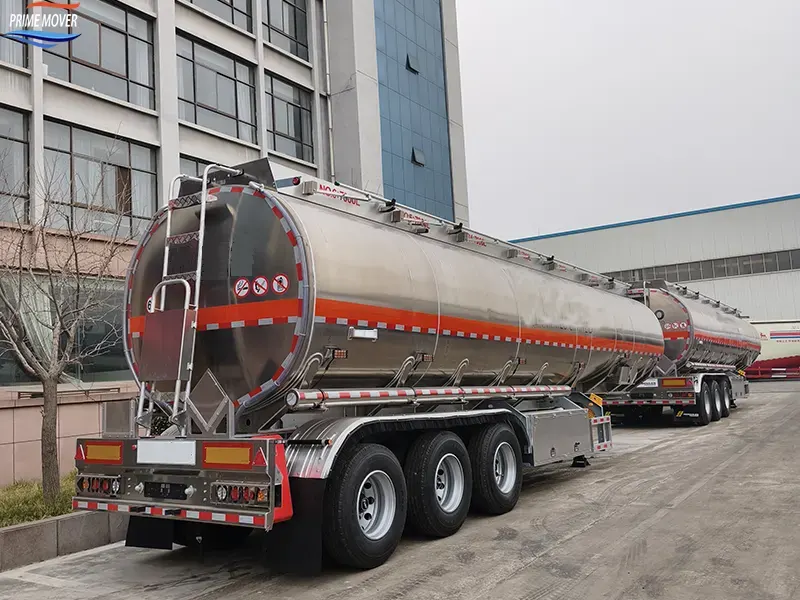

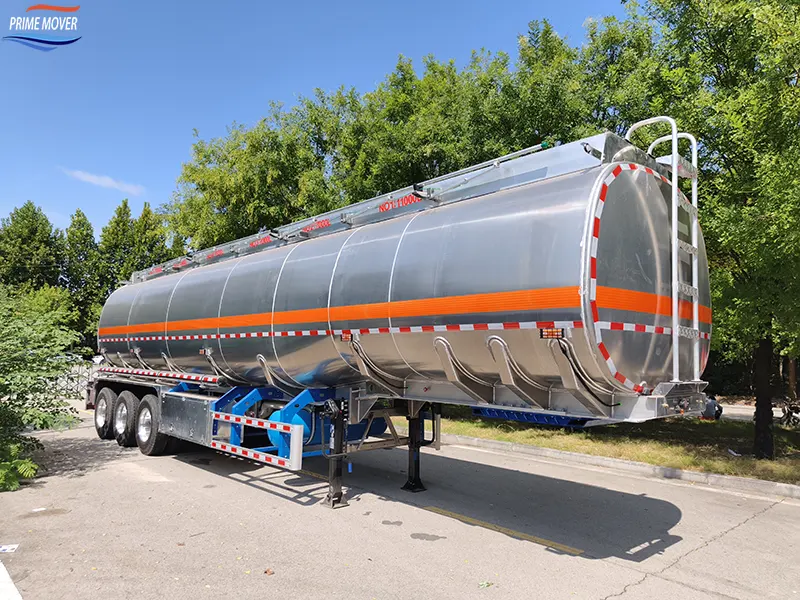

• 100% factory inspection – Every unit undergoes load test, brake test, and tank integrity verification before delivery
• Third-party inspection – Available via SGS, BV, or TÜV at customer request
• Stringent testing – Every tank successfully passes rigorous testing requirements – including liquid penetration, pneumatic pressure, and non-destructive flaw detection – and is accompanied by an official tank inspection report

Customer Service Philosophy

• 24-hour hotline service – Dedicated support team
• Rapid response – Professional service team to respond to customer needs promptly
• One-stop service – With heavy trucks, parts, and stand-by advice and support
• Full-cycle service – From pre-sale consultation to after-sale maintenance
