Carbon Steel Oil Tanker Semi-Trailer – The Cost-Effective Liquid Transport Solution

Engineered for petroleum, chemical, and bulk liquid transport with high-strength carbon steel construction and multi-compartment versatility

Product Overview

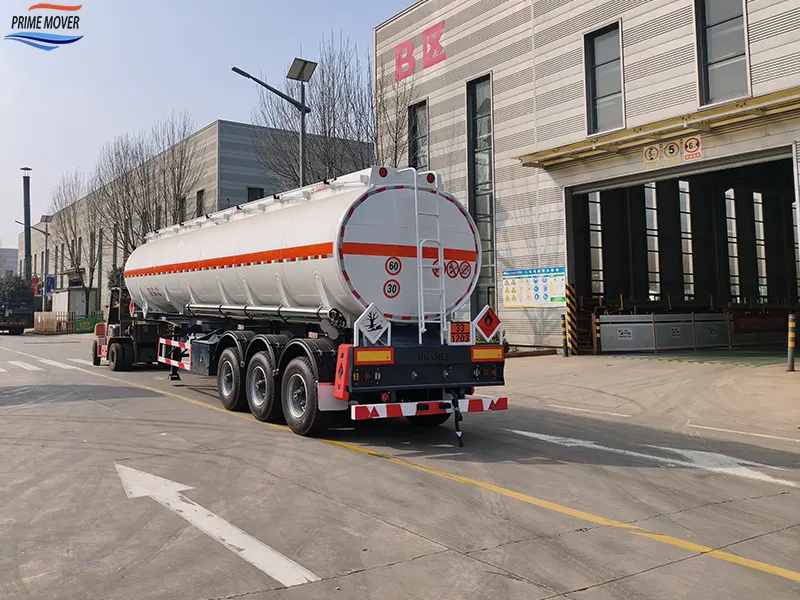

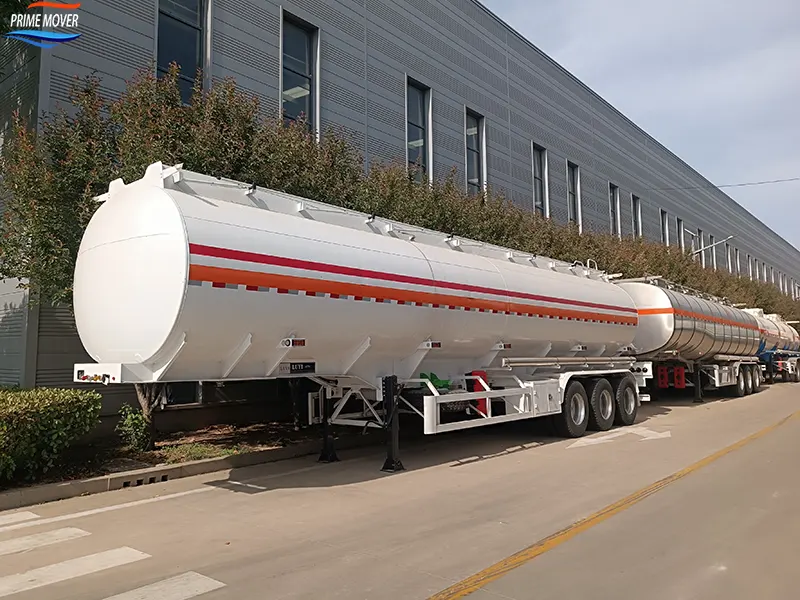

Prime Mover Industries presents its Carbon Steel Oil Tanker Semi-Trailer – a rugged, cost-effective liquid transport solution engineered for the safe and efficient movement of petroleum products, chemicals, and bulk liquids. Carbon steel remains the most widely used material for oil tank semi-trailers due to its exceptional strength, ease of fabrication, and affordability.

An oil tank trailer is a non-powered towed special-purpose vehicle specifically designed for transporting liquid petroleum products such as gasoline, diesel, lubricating oil, crude oil, and other liquid cargo. It needs to be used in conjunction with a tractor and serves as core transportation equipment in the petrochemical industry and energy transportation field, connecting oil and gas production, storage, and end consumption.

Carbon steel tank trailers are a cost-effective solution for transporting liquids across industries such as petroleum, chemicals, agriculture, and food. These trailers are recognized for their high strength, ease of manufacturing, and affordability. While carbon steel is less corrosion-resistant than stainless steel, proper anti-corrosion coatings and regular maintenance ensure safe and reliable transportation.

The global fuel tank semi-trailer market stood at approximately USD 4.2 billion in 2024 and is on a measured growth path toward USD 6.8 billion by 2033, expanding at a CAGR of roughly 5.5%. Carbon steel tankers continue to dominate this market, particularly in price-sensitive regions and for applications where cost-effectiveness is paramount.

2. Vehicle Parameters

Basic Specifications

Parameter	Specification
Overall Length	10,500 – 13,000 mm (customizable)
Overall Width	2,480 – 2,550 mm
Overall Height	3,500 – 3,900 mm
Total Weight (GVW)	40,000 – 80,000 kg
Curb Weight (Tare Weight)	7,000 – 10,500 kg
Rated Payload	30 – 60 tons
Tank Volume	20,000 – 60,000 liters (customizable up to 70,000L)

Tank Specifications

Component	Specification
Tank Material	Carbon steel – Q235 / Q345 high-grade steel
Tank Shell Thickness	4 – 6 mm (5mm standard)
Front & Rear Ends Thickness	6mm (ball shape / dished ends)
Baffle Thickness	5mm
Tank Shape	Elliptical / Round / Square
Compartment Configuration	1 – 9 compartments (2–6 compartments standard, customizable)

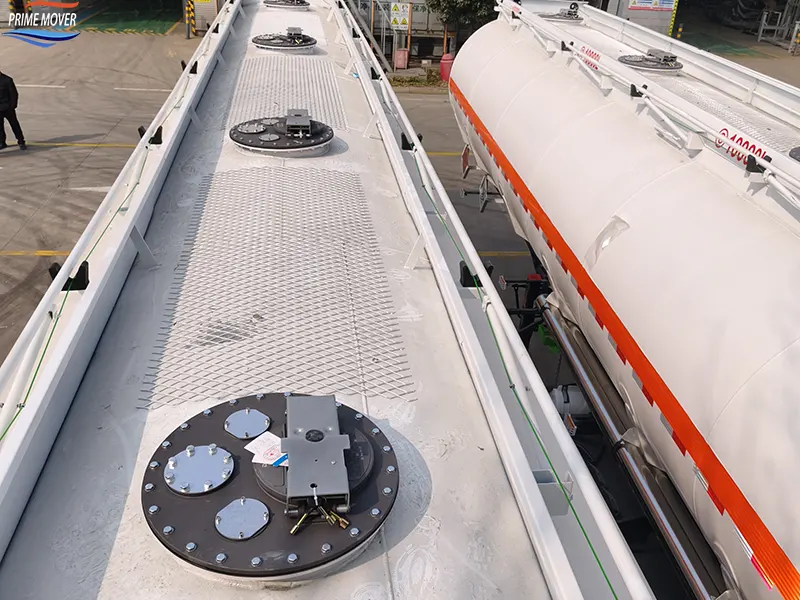

Manhole Cover	500mm explosion-proof manhole cover with breath valve
Anti-Wave Baffles	5mm thick multi-channel reinforced wave baffles

Chassis & Suspension

Component	Specification
Main Beam Material	Q345B high-strength low-alloy steel
Suspension	Mechanical leaf spring (standard) – Air suspension optional
Leaf Spring	10 layers × 90mm × 13mm
Axle Brand	FUWA / BPW / TITAN (13–16 ton capacity per axle)
Tires	12R22.5 (12 pcs for 3-axle configuration)
King Pin	JOST, 2″ or 3.5″, bolt-in type
Landing Gear	JOST, 28-ton capacity, two-speed
Number of Axles	2 – 4 axles (3-axle standard)

Brake & Electrical Systems

Component	Specification
Brake System	Dual-line pneumatic air brake, WABCO relay emergency valve
Brake Chamber	T30/30 spring brake chamber
ABS	Optional anti-lock braking system
EBS	Optional electronic braking system
Electrical System	24V LED lighting, 7-way ISO socket

Surface Treatment & Finish

Process	Specification
Preparation	Complete chassis sandblasting to clean rust
Primer	1 coat of anti-corrosive primer
Finish	2 coats of final paint

Certifications

Certification	Details
ISO 9001:2015	Quality Management System
ISO/TS16949	Automotive Industry Quality Management
CCC	China Compulsory Certification
ECE	European safety and lighting compliance
GCC	Gulf Cooperation Council market approval
DOT	US Department of Transportation compliance
CE	European conformity marking
ADR	European Agreement concerning the International Carriage of Dangerous Goods

3. Application Fields

The Carbon Steel Oil Tanker Semi-Trailer is the preferred solution for industries requiring cost-effective, durable liquid transport.

Petroleum & Fuel Transport

• Gasoline, diesel, and jet fuel – Distribution from refineries to fuel stations
• Crude oil – Long-distance transport from oil fields to refineries
• Kerosene and lubricating oil – Industrial and aviation fuel delivery
• Fuel oil and heavy oil – Industrial and marine fuel distribution
• Coal tar – Byproduct transport from coking operations

Chemical Transport

Carbon steel tankers are widely used for transporting a variety of chemicals and industrial liquids:

• Benzene and chemical solvents – Organic chemical transport
• Hydrofluoric acid – Industrial acid transport
• Phenol – Chemical intermediate transport
• Alcohol, aldehyde, and ether liquid substances

Agricultural Liquid Transport

• Liquid fertilizers – Transport to agricultural operations
• Pesticides – Chemical application support

Food-Grade Applications

Carbon steel tankers can transport certain food-grade liquids with appropriate internal coatings:

• Vegetable oil and edible oil
• Water and milk

Other Liquid Transport Applications

• Asphalt and bitumen
• Sulfur – Molten sulfur transport
• Cement and building materials
• Paint and coating transport
• Emergency and short-distance transport

4. Key Advantages

Cost-Effectiveness – Significantly Lower than Stainless Steel or Aluminum

Carbon steel is significantly more affordable compared to materials like stainless steel or aluminum alloys. This makes carbon steel tank trailers a highly cost-effective option for bulk and long-distance liquid transportation. The initial purchase price is substantially lower, providing a faster return on investment – making it ideal for companies prioritizing upfront cost savings.

High Strength & Impact Resistance

Carbon steel offers superior resistance to pressure and impact. The use of carbon steel tank semi-trailers provides a strong carrying capacity and high strength at the welds. In the process of long-time use, they can bear more load bearing weight, and the transport risk will be greatly reduced. Carbon steel at 4mm or 6mm wall thickness gives the tank body enough material to absorb impact and vibration over years of daily use.

Ease of Repair & Maintenance

Carbon steel is easier to repair and maintain compared to other materials. Local repair shops are more familiar with steel trailers; welding and repairs are usually simpler and cheaper for a carbon steel tank semi-trailer. The carbon steel material used can reduce the tare weight of the tank and has higher strength. This ease of repair translates to lower maintenance costs and reduced downtime.

Excellent Durability & Service Life

Manufactured using Q235 or Q345 carbon steel, the fuel tanker offers excellent durability and resistance to impact and high pressure. With proper maintenance, these units typically deliver 8–10 years of dependable service. Enhanced lifespan compared to conventional materials ensures long-term value.

Versatile Multi-Compartment Design

Available with 1 to 9 compartments, our tankers can transport different liquids simultaneously in a single trip – maximizing operational efficiency and reducing logistics costs. The tanker can be divided into 2, 3, 4, or more compartments which can transport different kinds of fuel in one time.

Safety-First Engineering

• Multi-channel reinforced wave baffles – Reduce fuel sloshing, enhancing road safety
• Emergency shut-off valves – Quickly close in case of emergency
• Explosion-proof manhole cover – Prevents ignition risk
• Anti-static devices – Electrostatic grounding wire eliminates static build-up
• API oil discharge valves – Industry-standard connection compatibility
• Oil and gas recovery system – Environmental protection and compliance
• Reduced tank pressure during discharge improves safety during operation
• Fire extinguisher holders – Safety equipment readily accessible
• Reflective strips and LED lighting – Maximum nighttime visibility

Customization Flexibility

Carbon steel is easy to process and can be welded, cut, and shaped precisely to create tanks of varying sizes, capacities, and configurations. Surface treatments like painting, spraying, and heat treatment improve durability and resistance to wear and tear, ensuring long-lasting performance in different environments.

How to Use – Operating Guide

Safe and efficient operation of a carbon steel oil tanker semi-trailer requires following proper procedures.

Pre-Operation Checks

Before each use, conduct a thorough inspection:

• Tank integrity – Inspect the tank for leaks, dents, or damage
• Valves and hoses – Check for wear, cracks, or loose connections
• Manhole cover – Ensure the explosion-proof manhole cover is securely sealed
• Static discharge device – Verify proper grounding connection
• Tires – Check tire pressure and inspect for damage
• Brakes and lights – Test brake performance and ensure all lights are functioning

Loading Procedure

• Position the trailer on level, stable ground
• Connect static discharge – Ground the trailer before loading flammable liquids
• Open manhole cover – Ensure proper ventilation
• Load the liquid – Follow proper loading procedures for the specific cargo
• Monitor fill levels – Do not overfill; leave appropriate vapor space
• Secure manhole cover – Close and seal after loading
• Inspect for leaks – Check all seals and connections

Unloading Procedure

• Position the trailer at the unloading point
• Connect static discharge – Ground the trailer before unloading

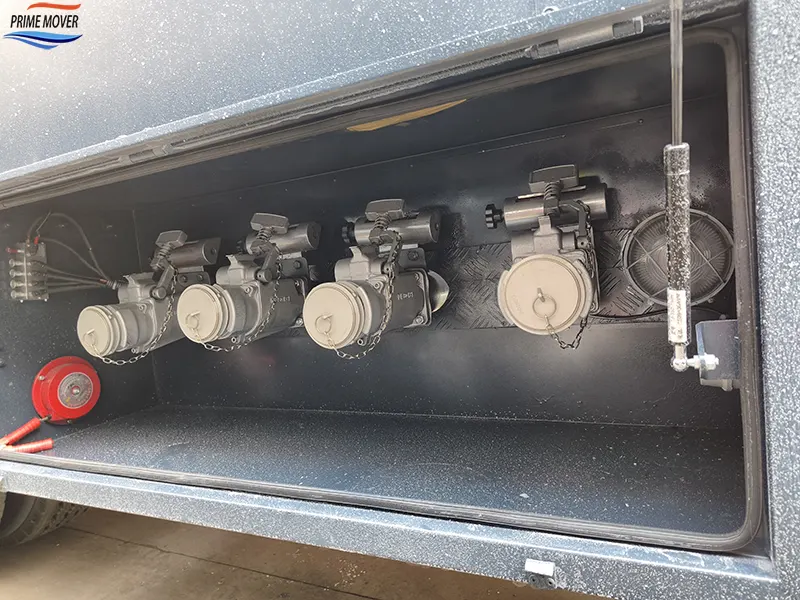

• Connect discharge hose – Securely attach to the discharge valve
• Open discharge valve – Control flow rate to prevent surging
• Monitor unloading – Ensure complete discharge
• Close valve – Securely close after unloading
• Disconnect and stow – Properly store hoses and equipment

Critical Safety Rules

• Always ground the trailer before loading or unloading flammable liquids
• Never smoke or use open flames near the tanker
• Never overfill – always leave appropriate vapor space
• Never transport incompatible materials – ensure cargo is compatible with carbon steel and any internal coatings
• Never leave valves open when not in use
• Never exceed rated payload capacity

Maintenance & Care

Regular maintenance is critical for carbon steel tanker trailers as it directly impacts safety, product purity, and longevity. Up to 50% of operational failures can be attributed to inadequate maintenance.

Corrosion Prevention – The #1 Priority

Carbon steel has lower corrosion resistance than stainless steel. However, with proper surface coatings (e.g., anti-corrosion coatings or galvanizing), carbon steel tank trailers can resist environmental factors like humidity and chemicals.

Key corrosion prevention measures:

• Regularly inspect the anti-corrosion coating for damage
• Touch up paint immediately if scratches or chips are found
• Clean the tank after each use to remove corrosive residues
• Store in a dry, covered environment when not in use

Tank Inspections

Visual Inspection:

• Regularly inspect the tank for cracks, dents, corrosion, or leaks
• Check weld seams and reinforcements for structural integrity
• Test the pump operation and pressure
• Check for oil leaks or abnormal noise

Valve, Pump, and Hose Inspection

• Strictly follow the pump's operation and maintenance instructions
• Inspect valves and hoses for wear
• Regularly inspect the delivery system components

Lubrication Schedule

It is recommended to lubricate the moving parts of an oil tank semi-trailer at regular intervals, such as every 10,000 to 15,000 miles or every six months.

Regular Inspections

Daily/Pre-Operation:

• Inspect the tractor and semi-trailer periodically for damage or signs of pending failure
• Damaged or broken parts must be repaired or replaced at once

Monthly:

• Check tire pressure at room temperature; if below standard, replenish promptly
• Inspect tires for cracks and abnormal wear
• Check all fasteners and bolts

Quarterly:

• Inspect safety accessories – safety valves, pressure gauges, level gauges, emergency shut-off valves, pipe joints, and static discharge devices
• Check for leaks or damage in all piping and valves

Annually:

• Conduct a comprehensive inspection by qualified technicians
• Test all safety systems
• Verify certifications and compliance

Additional Maintenance Tips

• Follow the manual – Adhere to manufacturer-specific maintenance recommendations
• Fix issues promptly – Address small problems early to avoid costly repairs
• Professional inspections – Schedule annual checks with qualified technicians
• Keep maintenance logs – Track repairs and replacements over time

Logistics & Shipping

Prime Mover Industries has extensive experience in exporting carbon steel oil tanker semi-trailers to customers worldwide.

Shipping Methods

• Ro-Ro Ship (Roll-on/Roll-off) – Trailers are driven directly onto the vessel; the most common and cost-effective method
• Bulk Ship – Multiple trailers shipped together in a bulk carrier for large orders
• 40HC Container Ship – Trailers are partially disassembled and packed into high-cube containers
• Flat Rack Container – For oversized or heavy configurations

Major Export Destinations

Our carbon steel oil tanker semi-trailers have been exported to markets across:

• Africa – Including Angola, Congo, Nigeria, South Africa, Sudan
• Southeast Asia – Including Indonesia, Malaysia, Philippines, Vietnam
• South America – Including Brazil, Chile, Peru
• Middle East – Including Saudi Arabia, UAE, Qatar
• Europe – Including EU countries with ECE and ADR compliance
• Mongolia – Customized units for specific market requirements

Lead Times

• Standard models – Ship within 20–30 days
• Custom builds – May take up to 45 days depending on specifications

Packaging & Protection

• Trailers are securely lashed and protected for ocean transport
• All vulnerable components are wrapped and protected against corrosion during transit
• Nude shipping or wax spray protection available

Port of Loading

Shipments are typically dispatched from major Chinese ports, including Qingdao, Shanghai, and Tianjin.

Documentation

Complete export documentation provided:

• Commercial invoice
• Packing list
• Bill of lading
• Certificate of origin
• Technical specifications
• Compliance certificates (ISO, CE, ECE, DOT, GCC, ADR)

After-Sales Service & Warranty

Prime Mover Industries is committed to providing comprehensive after-sales support to ensure your carbon steel oil tanker semi-trailer delivers reliable performance throughout its service life.

Warranty Coverage

• Standard Warranty – 12-month global warranty covering manufacturing defects
• Structural Warranty – Main structure warranty available
• Tank Warranty – Extended warranty options for carbon steel tank
• Component Warranty – Premium components (JOST, WABCO, FUWA/BPW) covered by manufacturer warranties

Technical Support

• 24/7 Online Technical Support – Video guidance and phone consultations for maintenance and troubleshooting
• Remote Diagnostics – Assistance in identifying and resolving issues
• Technical Documentation – Comprehensive manuals and guides provided with each trailer

Spare Parts Support

• Genuine Parts – Access to authentic replacement parts for all components
• Global Parts Network – Leveraging partnerships with JOST, WABCO, FUWA, and BPW for worldwide parts availability
• Rapid Dispatch – Quick shipping of urgent spare parts requirements

Service Options

• On-site Training – Available for large fleet orders
• Factory Service – Trailers can be returned to the factory for major repairs
• Authorized Service Centers – Network of service partners in key markets

Quality Commitment

• ISO 9001:2015 certified quality management system
• ISO/TS16949 automotive industry quality management

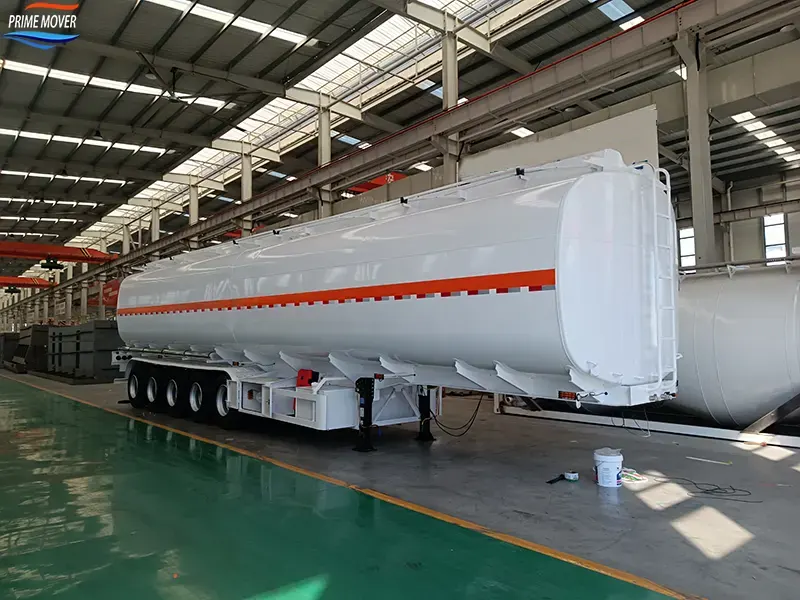

• 100% factory inspection – Every unit undergoes load test, brake test, and tank integrity verification before delivery
• Third-party inspection – Available via SGS, BV, or TÜV at customer request
• Stringent testing – Every tank successfully passes rigorous testing requirements – including liquid penetration, pneumatic pressure, and non-destructive flaw detection

Customer Service Philosophy

• 24-hour hotline service – Dedicated support team
• Rapid response – Professional service team to respond to customer needs promptly
• Full-cycle service – From pre-sale consultation to after-sale maintenance
