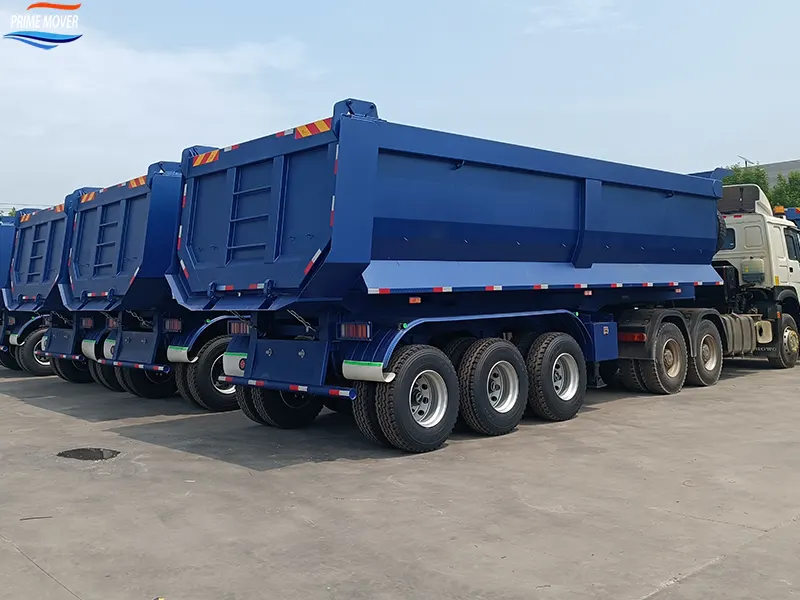

Rear Tipping Semi-Trailer – Heavy-Duty Dump Trailer for Bulk Material Transport

Engineered for rapid rear-discharge of coal, sand, gravel, and construction materials with hydraulic tipping mechanism and tri-axle stability

Product Overview

Prime Mover Industries presents its Rear Tipping Semi-Trailer – a specialized bulk material transport solution engineered for the rapid and efficient unloading of loose cargo. Unlike standard flatbed trailers, the rear tipper features a hydraulically actuated tipping mechanism that raises the front of the cargo box, allowing bulk materials to be discharged quickly and completely from the rear.

Rear tipping semi-trailers are the preferred choice for industries handling high volumes of bulk materials – from coal and ore in mining operations to sand, gravel, and construction debris on building sites. The rear-tipping design offers a significant advantage over side-tipping alternatives: it requires less unloading space, making it ideal for operations where workspace is limited.

Our rear tipping semi-trailer is built with a high-strength steel chassis and a robust hydraulic system designed to withstand extreme loads and demanding operating conditions. With payload capacities ranging from 33 to 60 tons and customizable configurations, this trailer delivers the durability, efficiency, and reliability that bulk material handlers demand.

Rear tipping semi-trailers are suitable for the transportation of bulk cargo such as coal, ore, building materials, etc.

2. Vehicle Parameters

Basic Specifications

Parameter	Specification
Overall Length	8,500 – 13,000 mm (customizable)
Overall Width	2,500 – 2,550 mm
Overall Height	1,500 – 3,440 mm (varies by configuration)

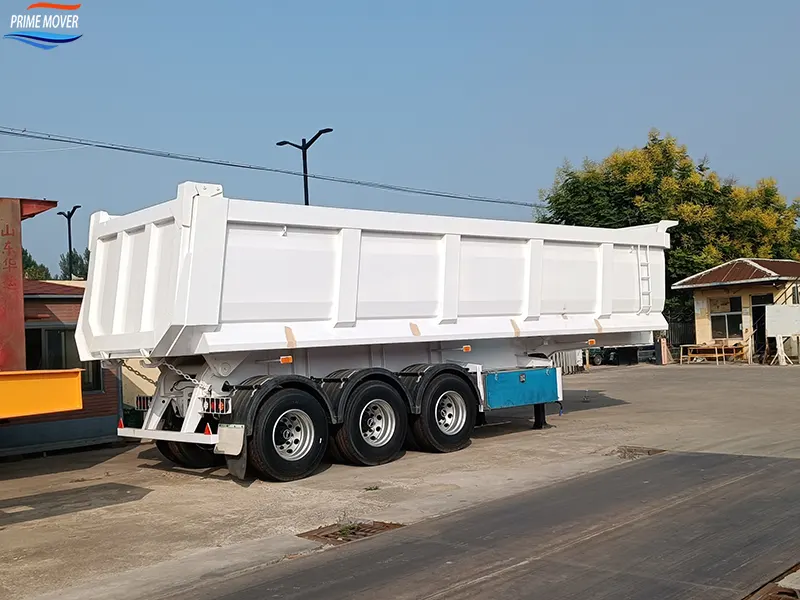

Number of Axles	3 (standard; 2 or 4 available)
Axle Capacity	3 × 13 – 16 tons
Max. Payload	33 – 60 tons
Tare Weight	Approx. 6,000 – 8,300 kg
Design Load	33 – 60 tons

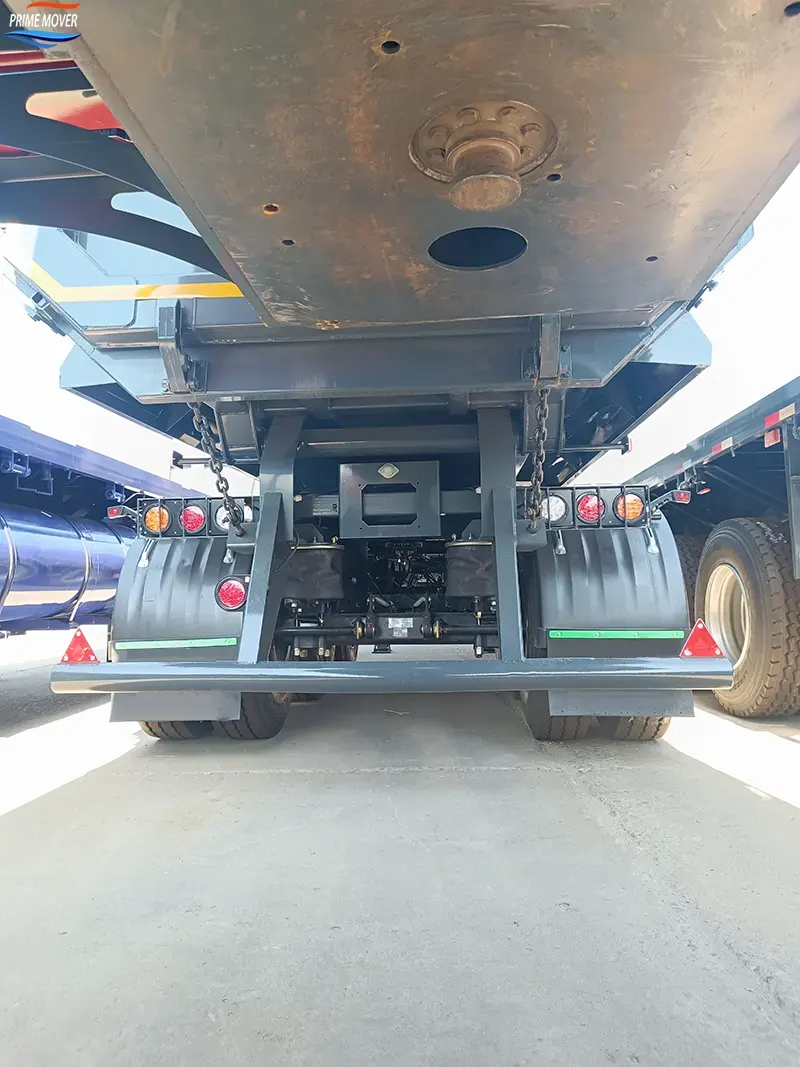

Chassis & Frame

Component	Specification
Main Beam Material	High-strength steel – T700 / T750 high-tensile steel
Main Beam Height	480mm (standard)
Upper Flange	7 – 8mm
Lower Flange	9 – 10mm
Web	5 – 6mm
Frame Construction	Fully welded, automatic submerged-arc welding process
Cargo Box Types	Dustpan and rectangular configurations

Suspension & Axles

Component	Specification
Suspension	Mechanical leaf spring suspension (standard); Air suspension optional
Leaf Spring	90mm(W) × 13mm(T) × 10 layers
Axle Brand	FUWA / HT / customer-specified
Axle Capacity	13 – 16 tons per axle
Tires	12R22.5 tubeless, 12 units
Landing Gear	28-ton capacity, two-speed
King Pin	2″ or 3.5″, bolt type

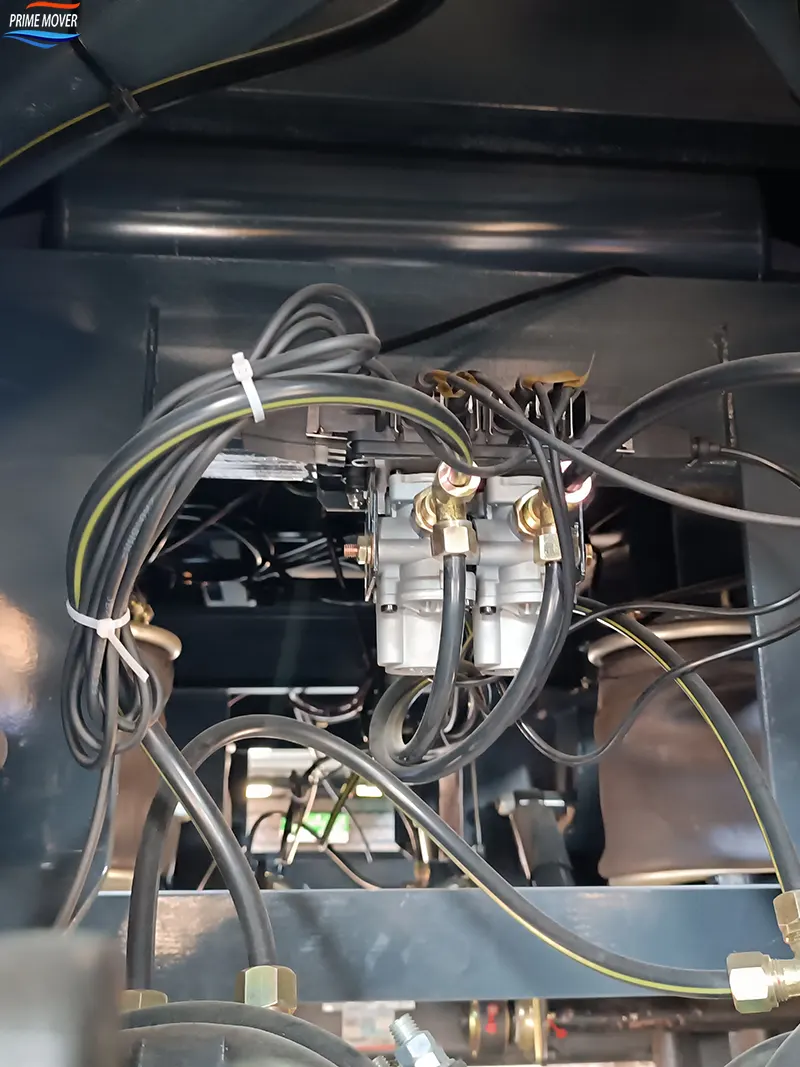

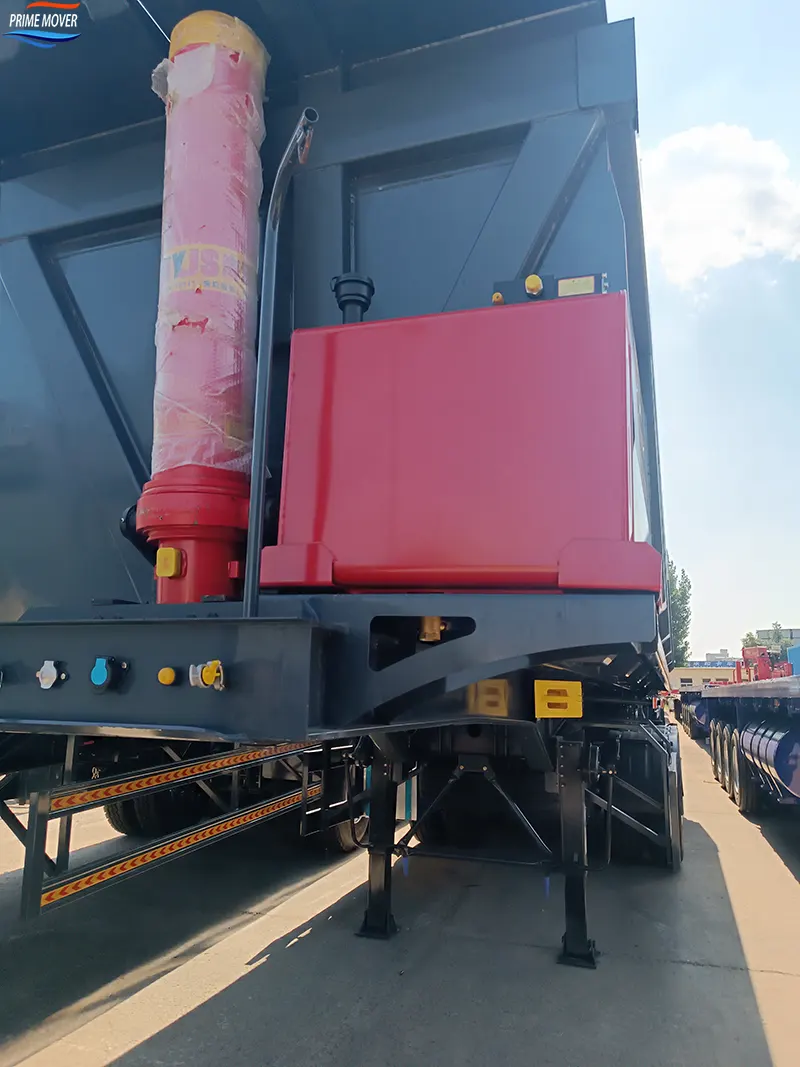

Hydraulic Tipping System

Component	Specification
Lifting System	Front-mounted telescopic hydraulic cylinders
Cylinder Brand	HYVA (optional)
Control	Driver-controlled from cab via pneumatic control valve
Tipping Angle	45 – 60 degrees (standard); up to 70 degrees (heavy-duty)
Operation	PTO-driven hydraulic pump

Electrical & Safety

Component	Specification
Lighting	24V LED lighting system
Brake System	Dual-line pneumatic air brake
ABS	Optional anti-lock braking system
EBS	Optional electronic braking system
Surface Treatment	Sandblasting + 1 coat primer + 2 finish coats
Certifications	ISO 9001, CCC, ECE, GCC, DOT

Application Fields

The Rear Tipping Semi-Trailer is the go-to solution for industries requiring efficient bulk material transport. Its rear-discharge mechanism enables rapid unloading in confined spaces where other tipping methods cannot operate safely.

Mining Operations

Rear tipping trailers are extensively used in mines and quarries for transporting coal, ore, overburden, and tailings. The rear-tipping design allows for quick unloading at processing plants or stockpiles, significantly reducing cycle times. They are typically used in conjunction with excavators and loaders for loading operations.

Construction & Infrastructure

On construction sites, rear tippers handle sand, gravel, crushed stone, asphalt, concrete debris, and demolition waste. The ability to unload precisely where needed – without extensive maneuvering – makes them invaluable for foundation work, road building, and earthmoving projects.

Bulk Material Logistics

Rear tippers are ideal for transporting coal, aggregates, and other bulk commodities from mines or quarries to processing facilities, power plants, or ports. Their high unloading efficiency translates directly into reduced operational time and increased productivity.

Agriculture

In agricultural applications, rear tippers handle grain, fertilizer, feed, and other bulk agricultural products. The rear-discharge mechanism enables rapid unloading at storage facilities or processing plants.

Waste Management

Rear tippers are also used in waste management for transporting construction and demolition waste, providing efficient unloading at recycling facilities or landfills.

Rear tipping semi-trailers are widely used in construction, mining, and agriculture for transporting aggregates, sand, gravel, and demolition debris.

Key Advantages

Rapid Unloading – Maximized Efficiency

The rear-tipping mechanism enables complete unloading in minutes. This dramatically reduces cycle times and increases operational efficiency compared to manual unloading methods.

Less Space Required

Unlike side-tipping trailers that require wide, open spaces for unloading, rear tippers can operate in tight, restricted areas – they only need the unloading area to be flat and clear of obstructions. This makes them ideal for urban construction sites and confined job sites.

High-Strength Construction

Built with T700/T750 high-strength steel and reinforced frame construction, our rear tippers are engineered to withstand the extreme loads and impact of bulk material handling. The cargo box is constructed with high-tensile steel, delivering high strength, strong lifting force, good rigidity and toughness, and strong bearing capacity.

Automatic Tilting & Unloading

The hydraulic system enables automatic tilting and unloading controlled entirely from the cab. The driver never needs to leave the vehicle during unloading – saving time and labor while improving safety.

Versatile Cargo Box Options

Available in both dustpan and rectangular configurations, the cargo box can be tailored to specific material handling requirements.

Reliable Hydraulic System

The front-mounted telescopic hydraulic system, featuring premium cylinders and optimized hydraulic design, ensures smooth and safe unloading. The system includes automatic locking valves to prevent accidental lowering.

Premium Components

We equip every rear tipper with world-class components – FUWA/HT axles, WABCO brake systems, and optional HYVA cylinders – ensuring reliable performance and easy parts availability worldwide.

Proven Durability

Every trailer undergoes sandblasting for surface preparation, followed by one coat of anti-corrosion primer and two finish coats – ensuring long-lasting protection against rust and corrosion in demanding environments.

5. How to Use – Operating Guide

Safe and efficient operation of a rear tipping semi-trailer requires following proper procedures. Proper training and adherence to safety protocols can significantly reduce tipping accidents.

Pre-Operation Checks

Before each use, conduct a thorough inspection:

• Hydraulic System – Check oil level and inspect for leaks; ensure hydraulic oil is clean and within recommended specifications
• Tires – Check tire pressure and inspect for damage or abnormal wear
• Lights – Ensure all lights, including brake and tail lights, are functioning
• Brakes – Test brake performance
• Fasteners – Ensure all bolts and fasteners are secure
• Safety Features – Ensure all safety features are functioning properly
• Rear Door – Ensure the rear door locking mechanism is operational

Loading Procedure

• Position the trailer on level ground before loading
• Ensure the load is evenly distributed – both front-to-back and side-to-side
• Do not overload – adhere to the trailer‘s rated payload capacity
• Avoid loading cargo too far forward, as this can over-stress the hydraulic system

Unloading (Tipping) Procedure

Step-by-step operation:

• Open the rear door – Release the rear door locking mechanism before tipping
• Position the vehicle – Ensure the trailer is on level, stable ground
• Engage PTO – Place transmission in neutral, engage the clutch for 5 seconds, engage the PTO
• Select low gear – Shift into a low gear (4th gear or below)
• Activate lift – Move the pneumatic control valve handle to the “raise” position
• *Begin lifting – Release the clutch – the trailer will begin to tip
• Control engine speed – Engine RPM should be kept below 1,500 RPM
• Monitor the tip – Ensure material flows evenly from the rear
• Full extension – When the cylinder reaches full travel, move the control valve to the “neutral” position

Lowering Procedure

Step-by-step lowering:

• Engage the clutch for 5 seconds
• Disengage the PTO
• Disengage the transmission gear
• Release the clutch
• Slowly move the pneumatic control valve from neutral to the “lower” position
• Control lowering speed – The valve is proportional; move it slowly for controlled descent
• Wait 30 seconds after the body is fully lowered before moving the valve back to neutral

Critical Safety Rules

• Never tip on a slope – Only tip on level ground
• Never move the vehicle while tipping – Moving during tipping creates instantaneous high pressure in the hydraulic system
• Never exceed 1,500 RPM during tipping operations
• Never use the hydraulic cylinder as a stable support for the body – it is for tipping only
• Do not leave the cylinder exposed for more than 2 hours (or 30 minutes in humid conditions) – this can cause oxidation and corrosion
• Never adjust the relief valve – This removes critical safety protection

Maintenance & Care

Regular maintenance is critical for rear tipping trailers as it directly impacts performance, safety, and longevity. Routine inspections help ensure all components function properly, extending the trailer‘s lifespan and reducing overall costs.

Hydraulic System Maintenance

The hydraulic system is the most critical component of a rear tipper. Up to 50% of operational failures can be attributed to hydraulic system issues. Follow these guidelines:

Task	Frequency	Details
Check hydraulic oil level	Daily/Weekly	Ensure oil is between MIN-MAX marks
Check oil quality	Weekly	If oil is cloudy or contains metal particles, replace immediately
Replace hydraulic oil	Every 300 lifts (break-in)	First change at ~300 lifts to remove break-in contaminants
Replace hydraulic oil	Every 10,000 maneuvers or 5 years	Regular replacement schedule
Replace hydraulic hoses	Every 2 years	High-pressure hoses must be replaced every 2 years
Inspect hoses for damage	Monthly	Check for leaks, bulges, cracks, or wear; replace immediately if found
Lubricate cylinder mounts	Every 120 lifts or 15 days	Apply grease to upper and lower cylinder支架
Clean hydraulic filters	Every 15 days	Clean return and air filters; replace every 6 months

Daily/Pre-Operation Checks

• Tires – Check pressure and inspect for damage
• Lights – Ensure all lights are functioning
• Brakes – Test brake performance
• Hydraulic System – Check fluid levels and inspect for leaks
• Fifth Wheel – Apply grease for smooth operation
• Wheel Hubs – Check oil levels and ensure nuts are tight
• Airlines – Inspect for damage and drain water from air tanks
• Rear Door – Ensure locking mechanism is operational

Break-In Period

First 300 lifting cycles are critical:

• Engine speed – Keep below 1,000 RPM during break-in; never exceed 1,500 RPM
• Oil change – Replace hydraulic oil and clean the tank after approximately 300 lifts
• Inspect – Check all hydraulic connections and fittings for leaks

Lubrication Schedule

• Cylinder mounts – Every 120 lifts or 15 days
• All pivot points – Monthly
• Fifth wheel – Weekly
• After extended storage – Re-lubricate all points before use

General Maintenance

• Cleaning – Clean the trailer thoroughly to prevent corrosion and debris buildup
• Welding inspection – Check frame and welding for cracks or damage
• Electrical system – Ensure wiring and lights are in good condition
• Fasteners – Check all bolts and fasteners regularly

Additional Maintenance Tips

• Follow the manual – Adhere to manufacturer-specific maintenance recommendations
• Fix issues promptly – Address small problems early to avoid costly repairs
• Professional inspections – Schedule annual checks with qualified technicians
• Keep maintenance logs – Track repairs and replacements over time

Logistics & Shipping

Prime Mover Industries has extensive experience in exporting rear tipping semi-trailers to customers worldwide. We offer flexible shipping options tailored to your destination and requirements.

Shipping Methods

• Ro-Ro Ship (Roll-on/Roll-off) – Trailers are driven directly onto the vessel – the most common and cost-effective method for most destinations
• Bulk Ship – Multiple trailers shipped together in a bulk carrier for large orders
• 40HC Container Ship – Trailers are partially disassembled and packed into high-cube containers (suitable for remote or inland destinations)
• Flat Rack Container – For oversized or heavy configurations

Major Export Destinations

Our rear tipping semi-trailers have been exported to markets across:

• Africa – Including Nigeria, Kenya, South Africa, Sudan, and Congo
• Southeast Asia – Including Indonesia, Malaysia, Philippines, Vietnam
• South America – Including Brazil, Chile, Peru
• Middle East – Including Saudi Arabia, UAE, Qatar
• Russia & CIS – With sales and service networks in Moscow, Novosibirsk, and other major cities
• Europe – Selected markets

Lead Times

• Standard models – Ship within 20–30 days
• Custom builds – May take up to 45 days depending on specifications

Packaging & Protection

Trailers are securely lashed and protected for ocean transport. All vulnerable components are wrapped and protected against corrosion during transit. The surface treatment – sandblasting, primer, and two finish coats – provides additional protection during ocean shipping.

Port of Loading

Shipments are typically dispatched from major Chinese ports, including Qingdao, Shanghai, and Tianjin – with Qingdao being the primary export hub.

After-Sales Service & Warranty

Prime Mover Industries is committed to providing comprehensive after-sales support to ensure your rear tipping semi-trailer delivers reliable performance throughout its service life.

Warranty Coverage

• Standard Warranty – 12-month global warranty covering manufacturing defects
• Structural Warranty – Main beams guaranteed against welding defects for 12 months
• Extended Warranty – Options available for critical components
• Component Warranty – Premium components (HYVA, JOST, WABCO, FUWA) covered by manufacturer warranties

Technical Support

• 24/7 Online Technical Support – Video guidance and phone consultations for maintenance and troubleshooting
• Remote Diagnostics – Assistance in identifying and resolving issues
• Technical Documentation – Comprehensive manuals and guides provided with each trailer

Spare Parts Support

• Genuine Parts – Access to authentic replacement parts for all components
• Global Parts Network – Leveraging partnerships with HYVA, JOST, WABCO, and FUWA for worldwide parts availability
• Rapid Dispatch – Quick shipping of urgent spare parts requirements

Service Options

• On-site Training – Available for large fleet orders – training for drivers and maintenance staff
• Factory Service – Trailers can be returned to the factory for major repairs
• Authorized Service Centers – Network of service partners in key markets, including Russia and Africa

Quality Commitment

• ISO 9001:2015 certified quality management system
• Compliant with QC/T 1218-2025 – China‘s self-unloading semi-trailer industry standard
• 100% factory inspection – Every unit undergoes load test, brake test, and hydraulic system verification before delivery
• Third-party inspection – Available via SGS, BV, or TÜV at customer request
• “Three Guarantees” Policy – Repair, replace, or refund for quality issues

Customer Service Philosophy

We uphold the principle of “Quality First, Customer Foremost” – committed to providing products that meet customer needs and service that exceeds expectations.
