Bulk Powder Material Semi-Trailer – The Pneumatic Discharge Specialist

Prime Mover bulk cement tank semi-trailer adopts V-shaped low-gravity tank, independent high-pressure air compressor & full fluidized bed system, 35–65m³ capacity. Lightweight aluminum optional, ultra-low residue rate < 0.3%, dedicated for dry powder like cement, fly ash, lime powder. Full global certification, complete operation & after-sales system for construction fleets worldwide.

Prime Mover bulk cement tank semi-trailer is professional dry powder pneumatic transport equipment with 35–65m³ optional V-type low gravity tank, independent diesel air compressor and full bottom fluidization bed system. The ultra-low residual rate ≤0.3% greatly reduces cement raw material waste, fully sealed dust-proof tank meets global environmental standards. Carbon steel and lightweight aluminum tank optional, aluminum version cuts tare weight by 1.6 tons to boost single-trip payload. 3/4 axle layout fully complies with international highway axle load regulations, suitable for cement, fly ash, lime powder transport between cement plants, mixing stations and construction sites. Backed by 6-year tank frame warranty, global spare parts warehouse and 24-hour multilingual technical support, the ideal cost-saving dry bulk transport solution for worldwide construction fleets.

1. Basic Product Introduction

Different from liquid heating asphalt tank trailers, the Prime Mover bulk cement tank semi-trailer is a specialized dry powder pneumatic transport equipment designed exclusively for loose granular industrial powders, with zero heating system required. It relies on compressed air fluidization technology to turn compacted cement powder into flowable fluid state for fully sealed automatic unloading to vertical silos at mixing plants, construction yards and cement warehouses.

The whole vehicle adopts an optimized inward-sloping V-shaped tank body structure, built with high-tensile wear-resistant steel or lightweight aluminum alloy. The bottom is fully laid with high-permeability fluidization canvas, matched with a heavy-duty self-contained air compressor unit, eliminating dependence on external air supply during unloading. The sealed fully-enclosed tank design completely avoids cement dust leakage, material moisture absorption and mixing pollution during transit. Multi-axle balanced chassis meets global highway axle weight limits, serving as the core cost-saving transport equipment for cement manufacturers, commercial concrete mixing stations, road infrastructure projects and mineral powder processing factories.

Complete Technical Specifications

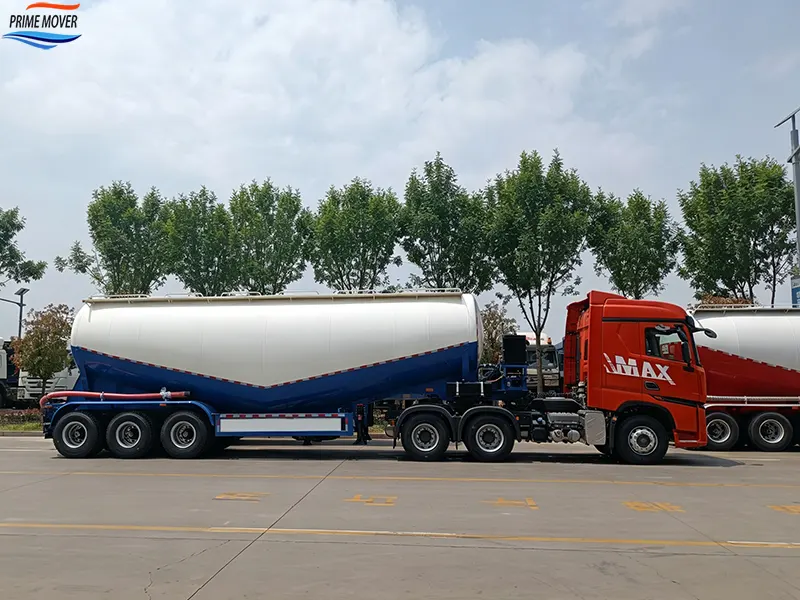

Standard 3-Axle V-Type Version, Customizable

Specification Item	Standard Factory Configuration	Optional Custom Upgrade
Overall External Dimension	12800 × 2500 × 3300 mm	11.5m–15m lengthened body for large capacity
Effective Tank Volume	42m³ (52 Ton rated powder load)	35/48/55/65 cubic meters multi-size selection
Tank Body Shape	V-type inward sloping low gravity tank	Horizontal cylindrical single/double compartment tank
Tank Wall Material	5mm Q345B wear-resistant carbon steel	4mm lightweight aluminum alloy (tare weight reduced by 1.6 tons)
Fluidization System	Full bottom 7-layer composite aeration canvas, independent front/rear air chambers	High-temperature anti-aging canvas for tropical humid areas
Air Compressor Unit	12m³/min diesel independent air compressor, 0.4MPa working pressure	Tractor PTO driven compressor to save fuel consumption
Unloading Speed	1.5 tons per minute continuous discharge	High-flow booster version up to 2.0 tons/min
Residual Material Rate	≤0.3% ultra-low leftover powder	Fully polished tank interior for ultra-fine mineral powder
Axle Layout	3 × 13T FUWA heavy-duty standard axles	4-axle super load / 1–2 lift airbag axles for empty trip energy saving
Tare Weight	8100 kg (carbon steel tank)	6500 kg aluminum lightweight tank
Suspension System	Reinforced mechanical leaf spring suspension	Full air suspension with load sensing height adjustment
Tire Model	12.00R22.5 dust-proof heavy-duty tubeless tires	315/80R22.5 wide-base single tires to reduce road damage
Discharge Pipeline	6-inch wear-resistant rubber unloading hose, quick coupling joint	Double outlet pipeline for simultaneous dual silo feeding
Kingpin	2-inch JOST bolted wear-resistant kingpin	3.5-inch reinforced kingpin for frequent long-distance haulage
Global Certifications	ISO9001, CE, DOT, GCC, bulk powder transport safety certificate	Regional compliance documents for Africa, Southeast Asia, Middle East

Exclusive Core Product Advantages

Distinct from Liquid Tank Trailers

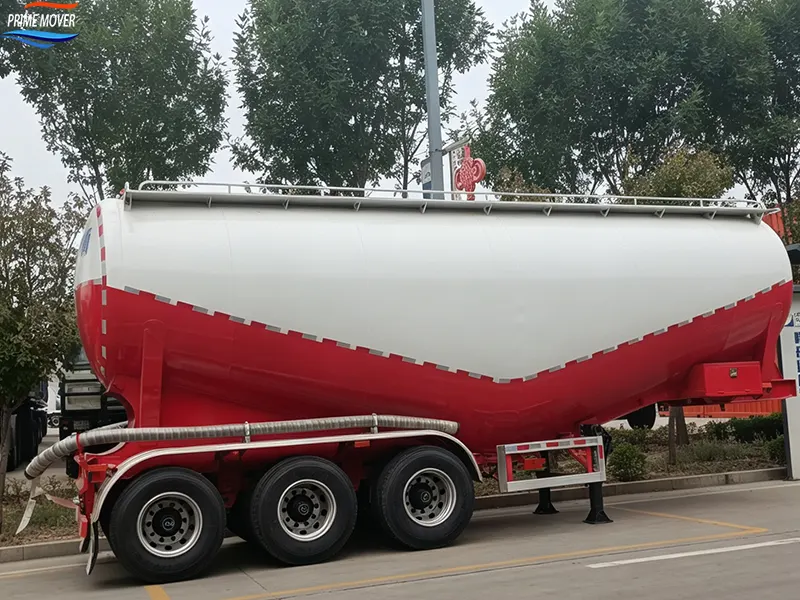

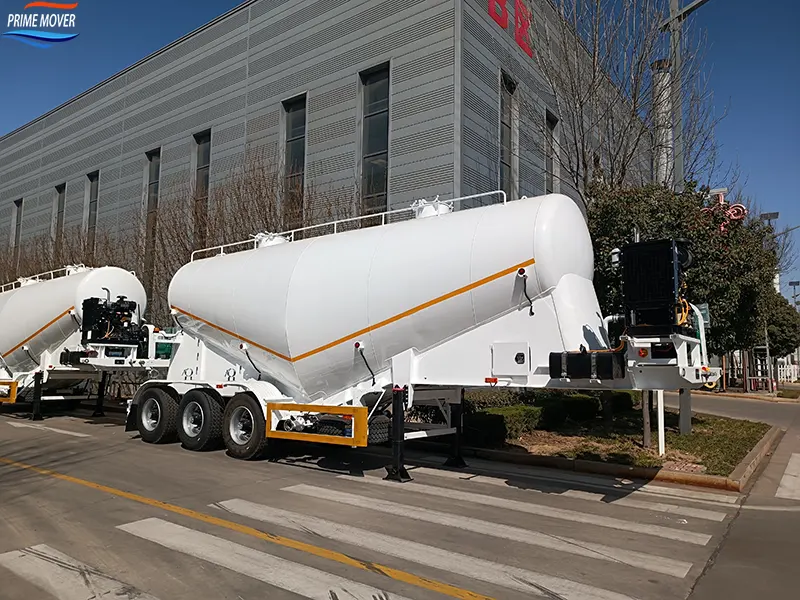

V-Type Low-Gravity Tank, Stable Anti-Sliding Transport

The inward-converging V-shaped tank bottom concentrates powder gravity to the central discharge pipeline, greatly lowering the vehicle’s overall center of gravity compared to horizontal cylindrical tanks. During high-speed driving, sharp turning and bumpy construction roads, powder sliding impact force is reduced by 40%, effectively avoiding rollover risks caused by powder uneven accumulation. All internal welding seams are polished smoothly without dead corners to prevent long-term powder caking and residue buildup.

3.2 Full Fluidized Bed Pneumatic Unloading, Ultra-Low Material Waste

The whole tank bottom is covered with breathable composite fluidization canvas. High-pressure air evenly penetrates powder particles to separate compacted cement into flowing fluid, forming pressure difference inside and outside the tank to push powder out automatically. The residual powder rate is controlled below 0.3%, almost no material loss after unloading, directly cutting raw material waste costs for fleets compared with ordinary powder trailers with high leftover rates. Independent front and rear air chambers support split unloading of two different powder materials in one tank without cross-contamination.

Dust-Tight Fully Sealed Structure, Zero Environmental Pollution

Fully sealed manhole covers, rubber buffer sealing strips and quick-lock discharge joints prevent cement dust overflow during loading and unloading, complying with global environmental emission standards. Unlike open fence trailers, there is no powder flying loss on the highway; internal tank anti-moisture coating isolates rain and humid air, avoiding cement hardening and scrapping caused by water absorption during long-distance cross-border transport in rainy tropical regions.

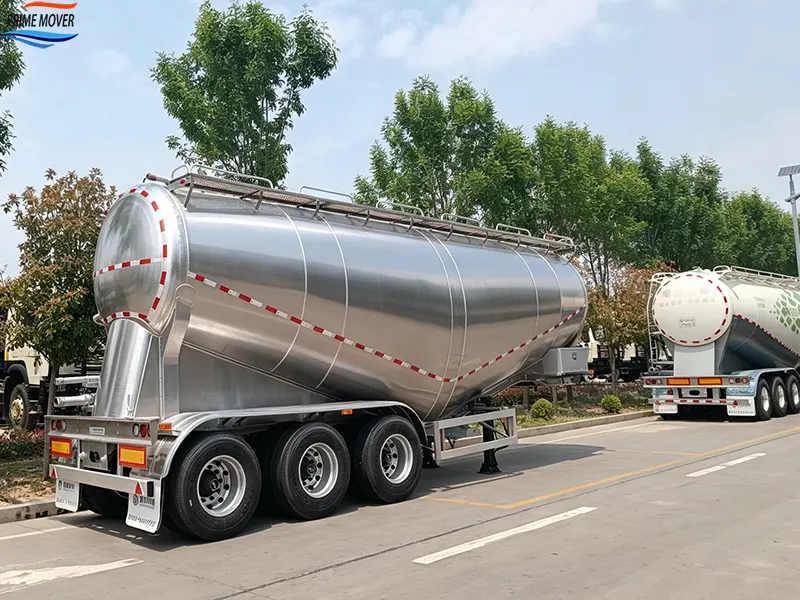

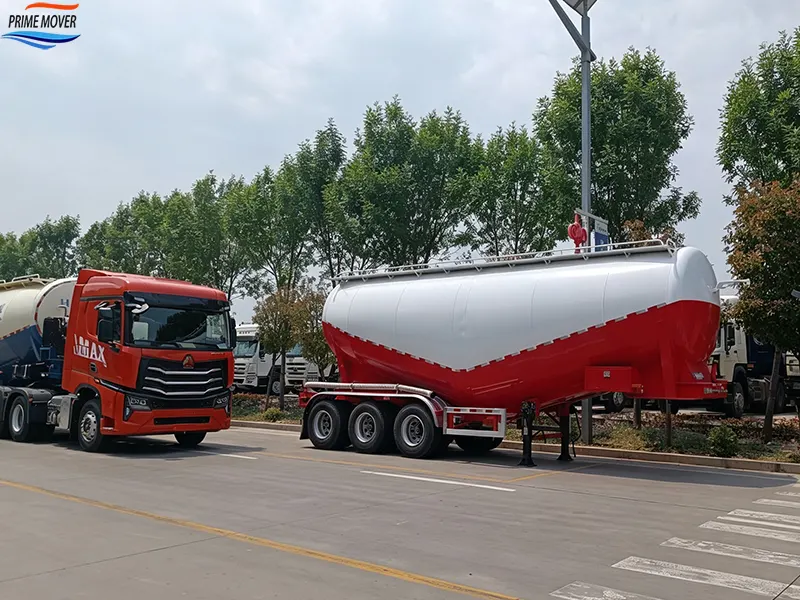

Lightweight Aluminum Tank Optional, Extra Payload Income

Aluminum alloy tank upgrade reduces self-weight by 1.6 tons, which can carry an additional 1.6 tons of cement per trip under the same total vehicle weight limit. Calculated by long-term fleet operation, the extra freight income offsets the aluminum tank premium within 8–10 months. Aluminum material naturally resists cement powder chemical corrosion, with no frequent rust touch-up maintenance required as carbon steel tanks, extending tank service life by over 6 years.

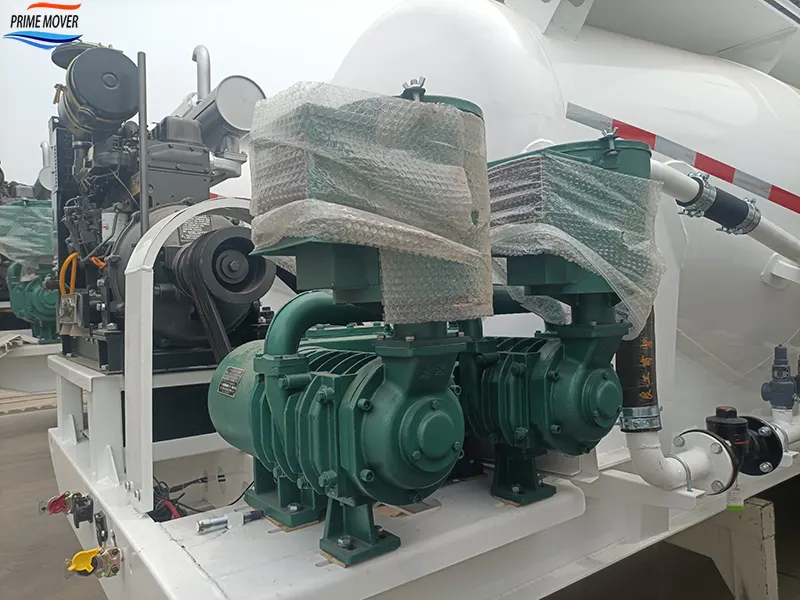

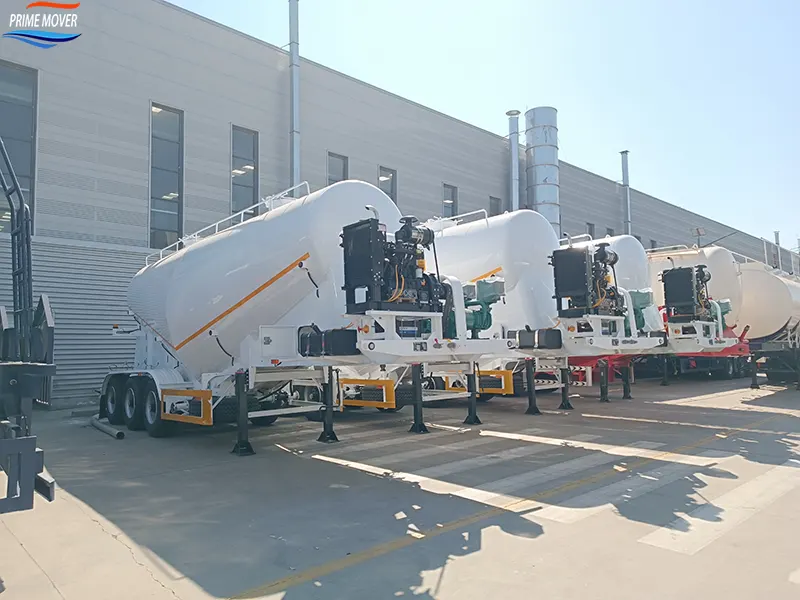

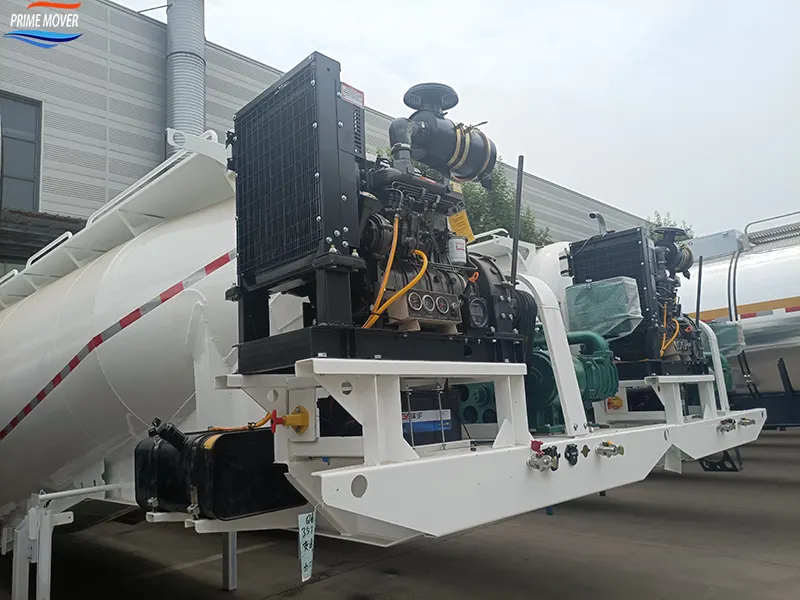

Independent Air Compressor Unit, Unrestricted Operation

Self-contained diesel air compressor does not rely on tractor power output. It can complete unloading operations independently at construction sites without supporting equipment, suitable for remote mountain construction yards without power supply. The compressor unit is equipped with noise reduction and dustproof housing, adapting to mine, desert and open-air construction harsh environments, with lower failure rate than PTO-driven air compressors.

Wide Application Fields

Cement Plant & Commercial Concrete Mixing Station Logistics

Main transport carrier for finished cement delivery from cement factories to mixing stations. Large-volume tank body realizes centralized bulk delivery, eliminating the labor cost of bagged cement packaging, loading and unpacking, improving material turnover efficiency of mixing plants and reducing comprehensive raw material procurement costs.

Large-Scale Infrastructure Construction Projects

Suitable for expressway, bridge, airport, port and municipal road construction sites. Bulk cement tank trailers can directly unload powder into vertical on-site storage silos, supporting uninterrupted concrete pouring construction, solving the supply shortage bottleneck of bagged cement in large-scale engineering projects.

Mineral & Industrial Dry Powder Transportation

Compatible with fly ash, lime powder, limestone powder, mineral filler and other dry industrial powder transport. Multi-compartment optional tank structure can separate two different powders in one trip, meeting the diversified raw material supply demands of building material factories and mineral processing plants.

Cross-Border Building Material Bulk Logistics

Fully compliant with axle load and environmental inspection standards in Africa, Middle East and Southeast Asia. Complete bulk powder transport certification supports smooth customs clearance without detention. The dust-proof sealed design adapts to long-distance desert cross-border transport, avoiding powder loss caused by strong wind erosion.

Complete Loading & Unloading Operation Flow

Step 1: Pre-Operation Preparation

Park the trailer on flat hard ground, lock tractor hand brake and place anti-slip triangular blocks at four tire groups; check air compressor diesel fuel level, fluidization canvas integrity and all pipeline quick joints for air leakage; confirm all tank bottom air chamber control ball valves are closed.

Step 2: Dust-Free Loading Process

Align the tank top manhole with the factory silo discharge pipeline, lock the manhole sealing buckle tightly to form closed loading space; open the silo feeding valve to fill cement powder evenly. After loading reaches rated volume, close the feeding valve first, then open the tank pressure relief valve to release internal residual pressure before unlocking the manhole cover.

Step 3: Start Pneumatic Unloading System

Connect the tank discharge pipeline to the vertical silo feeding port and lock the quick coupling; start the independent diesel air compressor, adjust throttle to maintain stable 0.35–0.4MPa working pressure; sequentially open front/rear air chamber ball valves to inflate the fluidization bed, wait 2–3 minutes for full powder fluidization.

Step 4: Continuous Automatic Discharge

Open the main discharge butterfly valve, fluidized cement powder flows into the storage silo with air flow. Adjust air chamber valve opening to control discharge speed according to silo storage capacity; monitor pressure gauge in real time to avoid overpressure damage to the tank body.

Step 5: Post-Unloading Tank Cleaning

After discharge is complete, close the discharge valve first, continue running the air compressor for 5 minutes to blow residual powder in the pipeline and tank bottom; shut down the compressor, open all pressure relief valves to release internal air pressure, disconnect the discharge pipeline and clean the pipeline interior of accumulated cement powder to prevent blockage after solidification.

Specialized Daily & Periodic Maintenance Specifications

Mandatory Daily Pre-Trip Inspection

• Fluidization system: Check canvas for wear, breakage and powder leakage; inspect air chamber ball valves for flexible switch and air tightness, replace aging sealing gaskets timely.
• Air compressor unit: Clean air filter dust screen, check diesel pipeline for oil leakage, test pressure output stability, drain water from compressor storage tank every day to avoid internal rust.
• Tank body & pipeline: Inspect tank welding seams for powder leakage, clean residual cement at discharge pipeline joints, prevent long-term solidification blocking pipelines.
• Chassis running gear: Calibrate consistent tire pressure of all three axles, tighten suspension U-bolts, test ABS brake system sensitivity, clean dust attached to tires and brake assemblies.

Scheduled Cycle Maintenance Standards

• Every 4,000 km: Lubricate axle bearings, kingpins and landing gear transmission gears; retighten all tank fixing brackets and chassis bolts; replace air compressor filter element.
• Every 18,000 km: Disassemble and clean all fluidization air chambers, replace severely worn aeration canvas; overhaul air compressor cylinder and pressure regulating valve; calibrate three-axle braking balance to prevent unilateral brake deviation.
• Every 45,000 km: Conduct full tank air tightness pressure test; carry out overall anti-rust recoating on carbon steel tank body; fully disassemble and clean discharge pipeline to remove cement blockages; overhaul tank internal anti-caking structure.

6.3 Forbidden Operation Rules To Extend Service Life

• Do not store damp cement in the tank for more than 48 hours; damp powder will harden and stick to the tank wall, causing permanent fluidization canvas blockage.
• Strictly prohibit overloading beyond rated tank volume; excessive powder accumulation leads to incomplete fluidization and ultra-high residual material rate.
• Do not stop the compressor suddenly during unloading; gradual pressure relief is required to avoid powder backflow blocking the air chamber pipeline.
• Avoid long-term parking of fully loaded trailer on uneven slopes, which causes powder unilateral accumulation and tank local stress deformation.
• Never clean the tank with water directly; water contact will solidify residual cement into hard blocks difficult to remove. Dry air blowing cleaning is the only approved method.

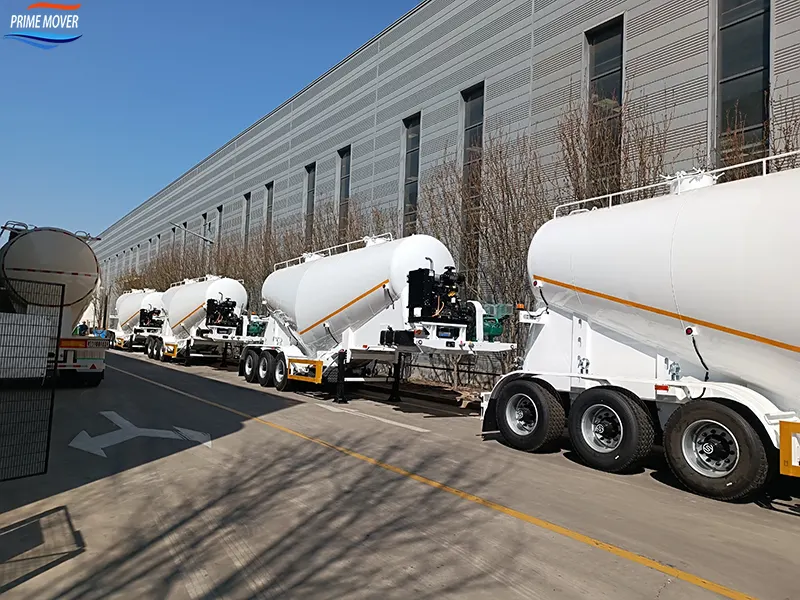

Global Logistics & Shipment Delivery Scheme

Pre-Shipment Anti-Dust Anti-Corrosion Packaging

The entire tank exterior is sprayed with weather-resistant protective wax; the precision air compressor unit is wrapped with multi-layer waterproof dustproof plastic film, with all pipeline joints sealed with plastic caps to prevent cement dust and sea salt fog corrosion during ocean transport. Fluidization canvas and vulnerable valve accessories are packed in independent shockproof cartons separately, fixed to the chassis with steel wire ropes to eliminate vibration collision damage during long-distance shipping.

Multi-Mode Global Shipping Solutions

• Single unit order: Flat rack container dedicated fixing transport, separate protection for tank body and compressor unit to avoid paint scratch and canvas damage.
• Bulk fleet orders: Ro-Ro whole vehicle direct shipment, no disassembly required, shorten port unloading and reassembly cycle.
• All trailers adopt dedicated anti-slip stowage brackets to fix axles and chassis, ensuring zero displacement during sea wave bumping.

Complete Customs Clearance Document Support

Before shipment, we provide factory pressure test report, bulk powder transport safety certification, commercial invoice, packing list, bill of lading and regional compliance certificates (CE/DOT/GCC etc.). Special document specialist tracks the whole logistics process, sends real-time shipping progress to customers, supports door-to-door delivery service at destination ports.

Port Unloading Operation Guidance

Multi-language dry powder tank trailer unloading operation manual is attached to each shipment; professional engineers provide remote video guidance for port vehicle docking, compressor startup and tank pre-inspection, avoiding improper operation damaging fluidization canvas and air compressor core parts.

Global Full-Cycle After-Sales Service System

Tiered Long-Term Warranty Policy

• Integral V-type tank body, chassis main bearing beam: 72-month / 320,000 km ultra-long warranty (longer than liquid tank trailers).
• Independent air compressor unit, full fluidization bed canvas, three heavy-duty axles: 24-month factory free warranty.
• Pneumatic control valves, discharge pipeline, brake and electrical components: 12-month warranty.
• Consumable spare parts (canvas, sealing gaskets, compressor filter elements, tires): 6-month limited warranty; damage caused by damp powder, overloading and improper manual cleaning is excluded from free replacement.

24/7 Multilingual Remote Technical Support

Global after-sales engineers provide WhatsApp, email and all-weather video fault diagnosis, responding to customer failure reports within 3 working hours. We deliver standardized driver training courses focusing on fluidization system maintenance and compressor fault troubleshooting, with English, French, Spanish and Arabic multi-language operation manuals attached for each shipment.

Regional Overseas Spare Parts Inventory Network

We establish dedicated bulk cement trailer spare parts warehouses in Nigeria, Kenya, UAE, Vietnam and Kazakhstan, stocking exclusive accessories including aeration canvas, air compressor components, discharge valves and tank sealing parts. Original factory spare parts are delivered by sea and air at factory direct price, greatly reducing fleet downtime losses caused by fluidization system failure.

Custom Modification & Bulk Order On-Site Service

Support personalized upgrades matching local transport demands: aluminum lightweight tank body, dual independent air compressors, multi-compartment split tank, double discharge pipeline and lift axle transformation. For bulk orders over 10 units, we dispatch overseas professional engineers to conduct port delivery inspection, compressor system commissioning and on-site driver maintenance training.

Product Closing Summary

Prime Mover Industries bulk cement tank semi-trailer adopts exclusive V-shaped low-gravity tank and full fluidized bed pneumatic unloading technology, solving core pain points of dry powder transport such as high residual rate, dust pollution, heavy self-weight and difficult unloading without auxiliary equipment. Compared with liquid asphalt heating tank trailers, it has no heating fuel consumption cost, simpler maintenance and wider dry powder material compatibility, becoming a high-profit low-consumption core transport equipment for global cement plants, construction fleets and mineral powder logistics enterprises.

Contact our international sales team now to obtain customized tank volume solutions, detailed technical drawings and factory direct preferential quotations for bulk orders.
