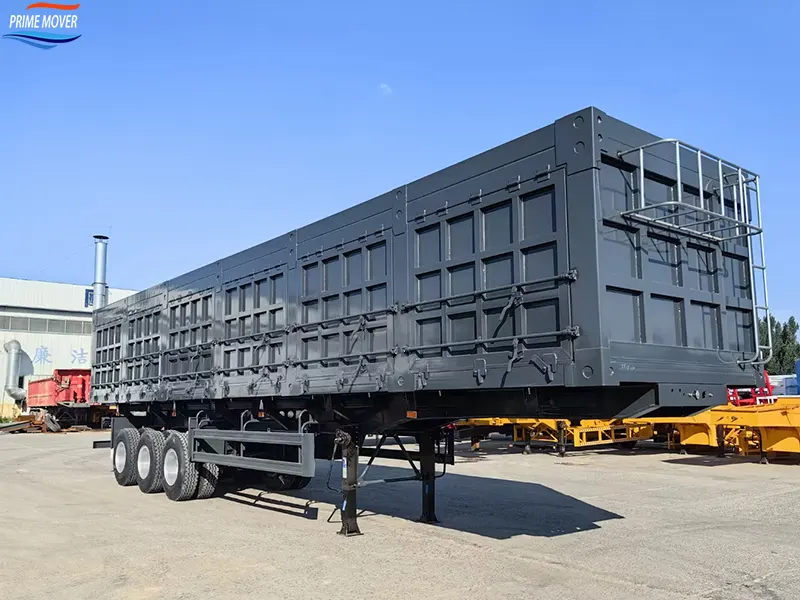

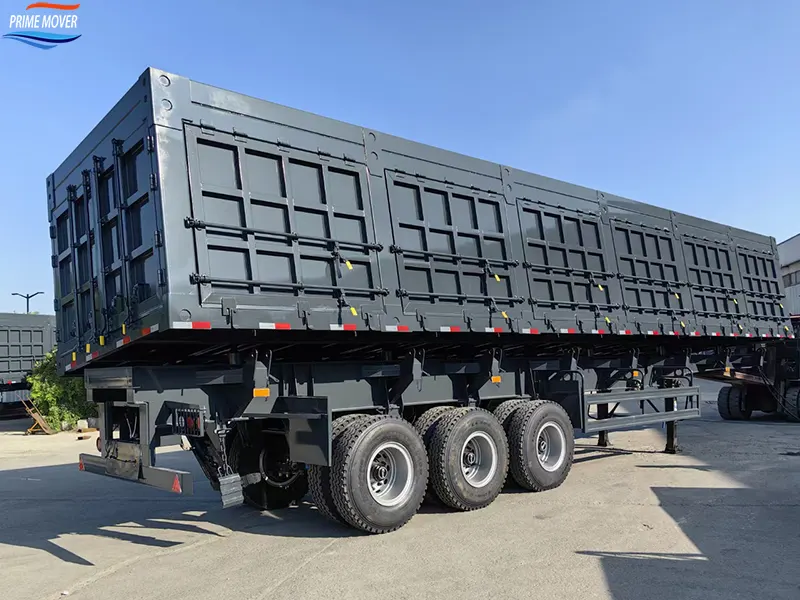

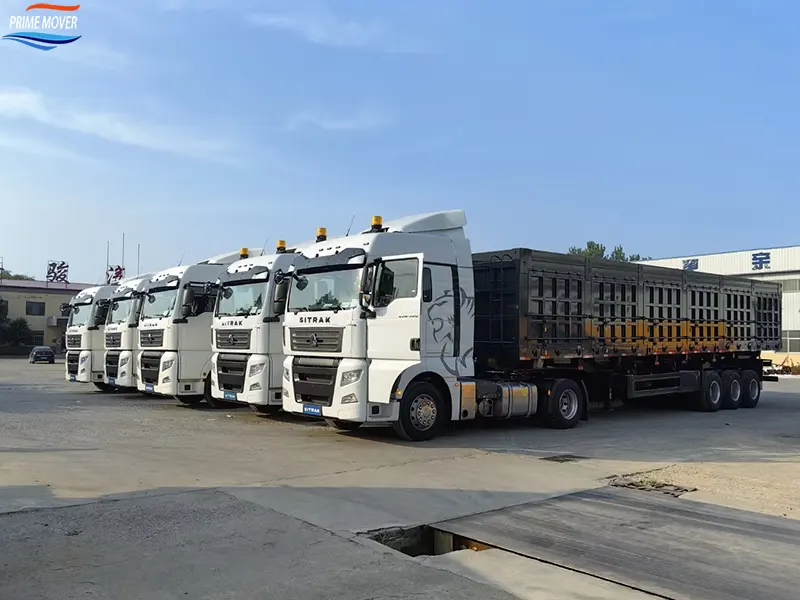

Side Tipper Semi-Trailer – the Bulk Material Handling Specialist

Engineered for rapid side-discharge of coal, ore, aggregates, and construction materials with hydraulic tipping mechanism and tri-axle stability

Product Overview

Prime Mover Industries presents its Side Tipper Semi-Trailer – a specialized bulk material transport solution engineered for the rapid and efficient unloading of loose cargo. Unlike conventional rear-dump trailers, the side tipper features a hydraulically actuated tipping mechanism that tilts the entire trailer body to one side, allowing bulk materials to be discharged quickly and completely without the need for maneuvering or repositioning.

Side tipper semi-trailers are the preferred choice for industries handling high volumes of bulk materials – from coal and ore in mining operations to sand, gravel, and construction debris on building sites. The side-tipping design eliminates the risk of tip-overs associated with rear-dump trailers in confined spaces, making it safer and more efficient for operations where workspace is limited.

Our side tipper semi-trailer is built with a high-strength steel chassis and a robust hydraulic system designed to withstand extreme loads and demanding operating conditions. With payload capacities ranging from 40 to 80 tons and customizable configurations, this trailer delivers the durability, efficiency, and reliability that bulk material handlers demand.

Side tipper trailers are mainly used for large-scale mines, engineering and other transportation tasks, and are usually used with excavators.

2. Vehicle Parameters

Basic Specifications

Parameter	Specification
Overall Length	12,500 – 13,000 mm
Overall Width	2,500 – 2,550 mm
Overall Height	2,200 – 3,300 mm
Number of Axles	3 (customizable to 4 or 5)
Axle Capacity	3 × 13 tons
Max. Payload	40 – 80 tons
Tare Weight	Approx. 6,300 – 8,000 kg
Design Load	40 – 60 tons (standard) / 80 tons (heavy-duty)

Chassis & Frame

Component	Specification
Main Beam	Q345B high-strength carbon steel, 'H' type
Frame Beam	Upper plate: 14mm; Lower plate: 16mm; Double middle: 8mm; Height: 500mm
Longitudinal Beams	High-strength structural steel, resistant to bending and impact
Sub-frame	High-strength 16Mn structural steel with integrated hydraulic system
Box Thickness	Bottom plate: 8mm; Side plate: 6mm
Cargo Box Types	Dustpan and rectangular configurations

Suspension & Axles

Component	Specification
Suspension	Mechanical suspension, reinforced type
Leaf Spring	90mm(W) × 16mm(T) × 10 layers
Axle Brand	FUWA / BPW (13-ton capacity)
Tires	12R22.5 or 315/80R22.5, 12 units
Landing Gear	JOST brand, 28-ton capacity
King Pin	2.0″ or 3.5″ inch

Hydraulic Tipping System

Component	Specification
Lifting System	“5+1” oil cylinder configuration
Control	Hydraulic control valve with movable jack
Tipping Angle	Sufficient to completely discharge bulk materials
Operation	Driver-controlled from cab or remote

Electrical & Safety

Component	Specification
Lighting	24V LED lighting system
Brake System	Dual-line pneumatic air brake, WABCO valves
ABS	Optional anti-lock braking system
Anti-skid Plates	Fitted as standard
Certifications	ISO 9001, CCC, ECE, GCC, DOT

Application Fields

The Side Tipper Semi-Trailer is the go-to solution for industries requiring efficient bulk material transport. Its side-discharge mechanism enables rapid unloading in confined spaces where rear-dump trailers cannot operate safely.

Mining Operations

Side tipper trailers are extensively used in large-scale mines for transporting coal, ore, and overburden. The side-tipping design allows for quick unloading at processing plants or stockpiles, significantly reducing cycle times. They are typically used in conjunction with excavators for loading operations.

Construction & Infrastructure

On construction sites, side tippers handle sand, gravel, crushed stone, and demolition debris. The ability to unload precisely where needed – without repositioning the tractor – makes them invaluable for foundation work, road building, and earthmoving projects.

Bulk Material Logistics

Side tippers are ideal for transporting coal, aggregates, and other bulk commodities from mines or quarries to processing facilities, power plants, or ports. Their high unloading efficiency translates directly into reduced operational time and increased productivity.

Agriculture

In agricultural applications, side tippers handle grain, fertilizer, and other bulk agricultural products. The side-discharge mechanism enables rapid unloading at storage facilities or processing plants.

Waste Management

Side tippers are also used in waste management for transporting construction and demolition waste, providing efficient unloading at recycling facilities or landfills.

Side tipper trailers are suitable for the transportation of bulk cargo such as coal, ore, building materials, etc.

4. Key Advantages

Rapid Unloading – Up to 15 Seconds

The side-tipping mechanism enables complete unloading in as little as 15 seconds. This dramatically reduces cycle times and increases operational efficiency by more than 50% compared to traditional unloading methods.

Safe Operation in Confined Spaces

Unlike rear-dump trailers that require significant space to maneuver and tip, side tippers can unload in tight, restricted areas. The side-discharge design eliminates the risk of tip-overs associated with rear-dumping on uneven ground.

High-Strength Construction

Built with Q345B high-strength steel and reinforced frame construction, our side tippers are engineered to withstand the extreme loads and impact of bulk material handling. The cargo box is constructed with excellent manganese plates, delivering high strength, strong lifting force, good rigidity and toughness, and strong bearing capacity.

Automatic Tilting & Unloading

The hydraulic system enables automatic tilting and unloading at a controlled angle, which greatly saves unloading time and labor. The “5+1” oil cylinder configuration ensures smooth and reliable operation.

Versatile Cargo Box Options

Available in both dustpan and rectangular configurations, the cargo box can be tailored to specific material handling requirements.

Reduced Material Spillage

The side-discharge design ensures complete and clean unloading of bulk materials, minimizing spillage and waste compared to rear-dump alternatives.

Durable Hydraulic System

The integrated hydraulic system, featuring a control valve and movable jack, delivers reliable performance even in demanding conditions. The turning point of the rollover body is wide, increasing stability, reliability, and safety during operation.

How to Use – Operating Guide

Safe and efficient operation of a side tipper semi-trailer requires following proper procedures. Proper training can reduce tipping accidents by up to 70%.

Pre-Operation Checks

Before each use, conduct a thorough inspection:

• Tires – Check tire pressure and inspect for damage or abnormal wear
• Lights – Ensure all lights, including brake and tail lights, are functioning
• Brakes – Test brake performance and check for wear or unusual noises
• Hydraulic System – Verify hydraulic fluid levels and inspect for leaks
• Fasteners – Ensure all bolts and fasteners are secure
• Airlines – Inspect for damage or kinks and drain water from air tanks
• Safety Features – Ensure all safety features are functioning properly

Loading Procedure

• Position the trailer on level ground before loading
• Ensure the load is evenly distributed within the cargo box
• Do not overload – adhere to the trailer’s rated payload capacity
• Secure the load if required for transport

Unloading (Tipping) Procedure

• Pull the handbrake before lifting and unloading
• Place triangular wooden pads (wheel chocks) to prevent movement
• Ensure the trailer is on level ground
• Avoid lifting on sloping roads
• Activate the hydraulic control valve to start the tipping system
• The “5+1” oil cylinders will lift the trailer body to the side
• Allow complete discharge of material
• Lower the trailer body smoothly
• Avoid sharp turns at high speeds when loaded

Post-Operation

• Lower the trailer body completely
• Conduct a visual inspection for any damage or leaks
• Clean the trailer to prevent corrosion

Maintenance & Care

Regular maintenance is critical for side tipper trailers as it directly impacts performance, safety, and longevity. Routine inspections help ensure all components function properly, extending the trailer’s lifespan and reducing overall costs.

Daily/Pre-Operation Checks

• Tires – Check pressure and inspect for damage
• Lights – Ensure all lights are functioning
• Brakes – Test brake performance
• Hydraulic System – Check fluid levels and inspect for leaks
• Fifth Wheel – Apply grease for smooth operation
• Wheel Hubs – Check oil levels and ensure nuts are tight
• Airlines – Inspect for damage and drain water from air tanks
• Safety Chains – Inspect for wear or damage

Regular Maintenance

• Lubrication – Apply grease to all moving parts regularly
• Wheel Bearings – Inspect and repack bearings as needed
• Brakes – Check brake components for wear and replace if necessary
• Frame & Welding – Inspect for cracks or damage and repair as needed
• Electrical System – Ensure wiring and lights are in good condition
• Hydraulic System – Replace hydraulic fluid and filters periodically; change fluid as per manufacturer’s schedule, usually every 1,000 operational hours
• Cleaning – Clean the trailer thoroughly to prevent corrosion and debris buildup

Hydraulic System Maintenance

Up to 50% of operational failures can be attributed to hydraulic system issues. Pay special attention to:

• Regularly check hydraulic oil level and quality
• Clean the filter screen periodically
• Inspect for leaks and ensure cylinders are functioning correctly
• Before performing maintenance between the tipper bridge and chassis, close the shut-off valve to prevent accidental lowering

Quarterly & Annual Service

• Quarterly – Analyze hydraulic fluid and replace worn components
• Annual – Conduct a full inspection and complete safety certifications

Additional Tips

• Follow the manual – Adhere to manufacturer-specific maintenance recommendations
• Fix issues promptly – Address small problems early to avoid costly repairs
• Professional inspections – Schedule annual checks with qualified technicians
• Keep maintenance logs – Track repairs and replacements over time

Logistics & Shipping

Prime Mover Industries has extensive experience in exporting side tipper semi-trailers to customers worldwide. We offer flexible shipping options tailored to your destination and requirements.

Shipping Methods

• Ro-Ro Ship (Roll-on/Roll-off) – Trailers are driven directly onto the vessel, suitable for most destinations
• Bulk Ship – Multiple trailers shipped together in a bulk carrier
• 40HC Container Ship – Trailers are partially disassembled and packed into high-cube containers
• Flat Rack Container – For oversized or heavy configurations

Major Export Destinations

Our side tipper semi-trailers have been exported to markets across:

• Africa – 2,500+ units per year
• Southeast Asia
• South America
• Middle East
• Europe

Lead Times

• Standard models – Ship within 30–45 days
• Custom builds – May take up to 60 days depending on specifications

Packaging

Trailers are securely lashed and protected for ocean transport. All vulnerable components are wrapped and protected against corrosion during transit.

Port of Loading

Shipments are typically dispatched from major Chinese ports, including Qingdao, Shanghai, and Tianjin – with Qingdao being the primary export hub for side tipper trailers.

After-Sales Service & Warranty

Prime Mover Industries is committed to providing comprehensive after-sales support to ensure your side tipper semi-trailer delivers reliable performance throughout its service life.

Warranty Coverage

• Standard Warranty – 12-month global warranty covering manufacturing defects
• Extended Warranty – Options available for critical components
• Component Warranty – Premium components (JOST, WABCO, FUWA/BPW) covered by manufacturer warranties

Technical Support

• 24/7 Online Technical Support – Video guidance and phone consultations for maintenance and troubleshooting
• Remote Diagnostics – Assistance in identifying and resolving issues
• Technical Documentation – Comprehensive manuals and guides provided with each trailer

Spare Parts Support

• Genuine Parts – Access to authentic replacement parts for all components
• Global Parts Network – Leveraging partnerships with JOST, WABCO, FUWA, and BPW for worldwide parts availability
• Rapid Dispatch – Quick shipping of urgent spare parts requirements

Service Options

• On-site Training – Available for large fleet orders
• Factory Service – Trailers can be returned to the factory for major repairs
• Authorized Service Centers – Network of service partners in key markets

Quality Assurance

• ISO 9001:2015 certified quality management system
• 100% factory inspection – Every unit undergoes load test, brake test, and hydraulic system verification before delivery
• Third-party inspection – Available via SGS, BV, or TÜV at customer request
