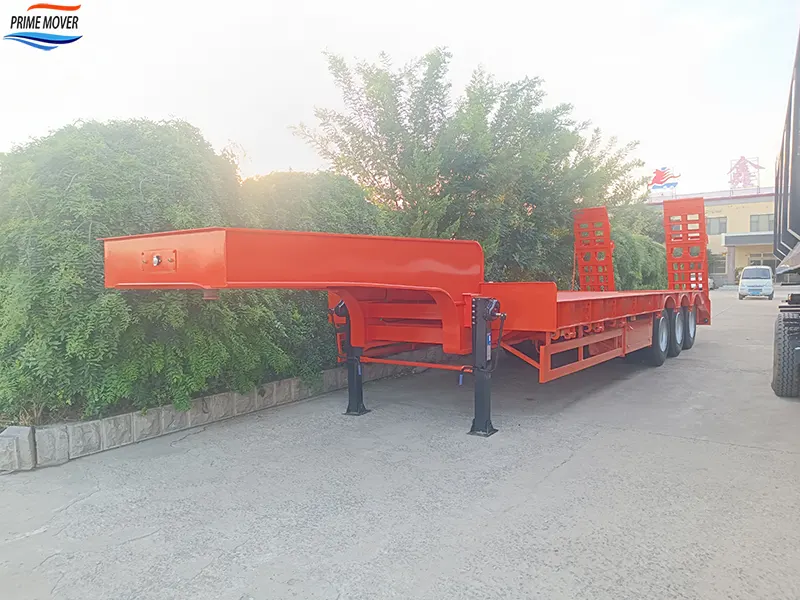

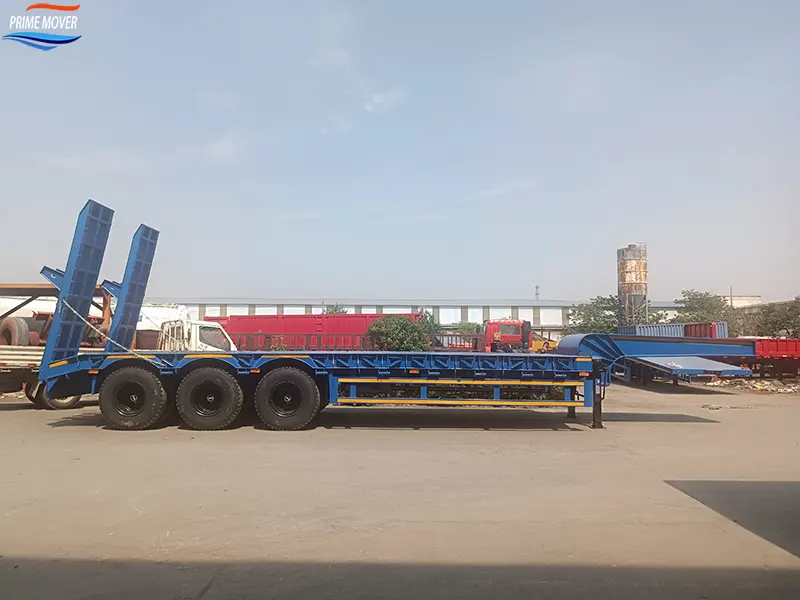

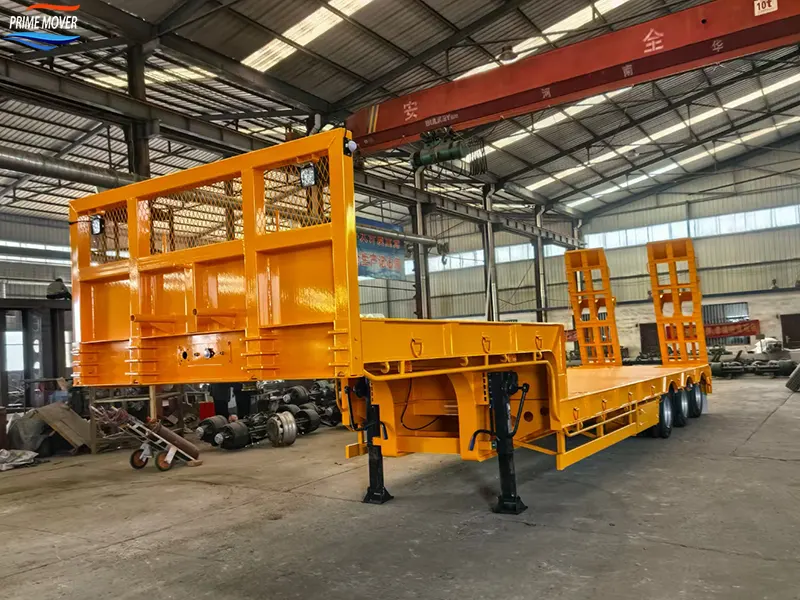

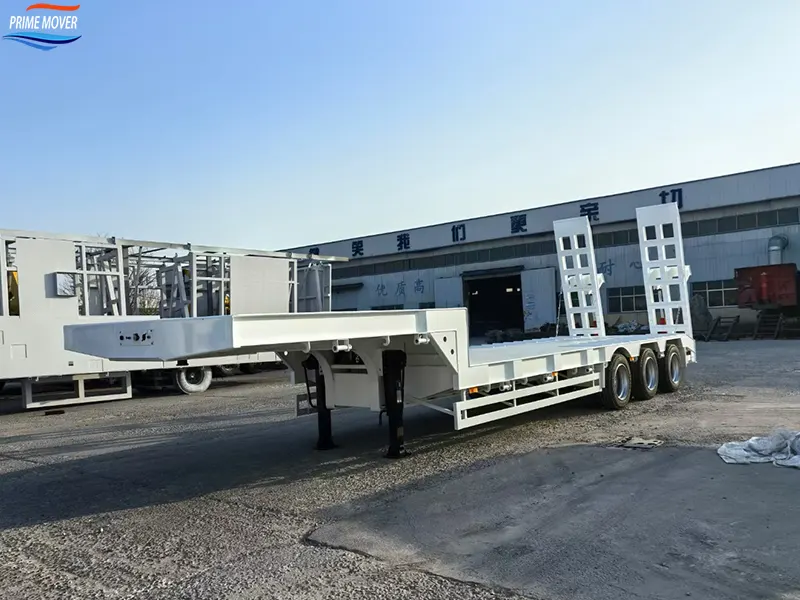

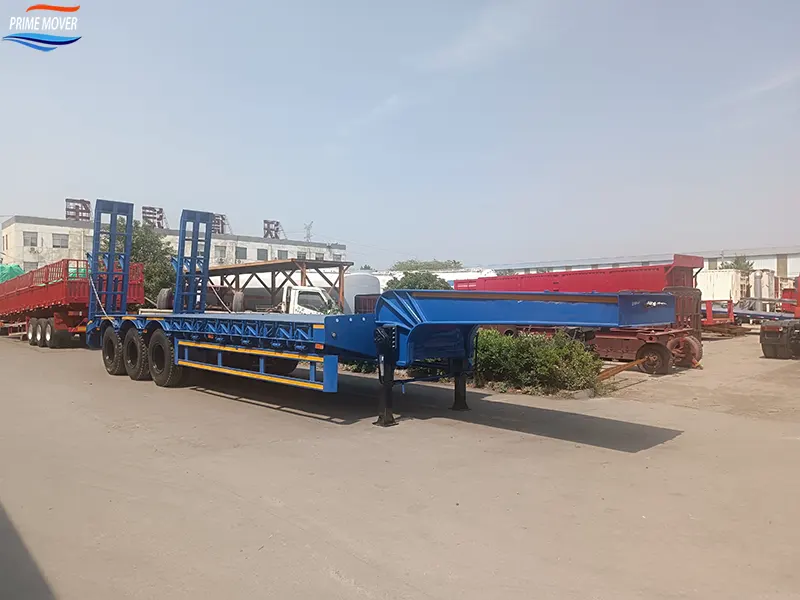

40-Ton 3-Axle 13-Meter Low Flatbed Semi-Trailer – The Heavy Equipment Transporter

Engineered for excavators, bulldozers, and oversized industrial cargo with a 13-meter low-profile platform

Product Overview

Prime Mover Industries presents its 40-Ton Three-Axle 13-Meter Low Flatbed Semi-Trailer – a purpose-built heavy transport solution designed for the safe and efficient movement of construction equipment, mining machinery, and oversized industrial cargo. Unlike standard flatbed trailers with higher deck heights, this low flatbed features a reduced platform height that significantly lowers the center of gravity, providing greater stability and the ability to transport super-tall loads through height-restricted roads and infrastructure.

With a 40-ton payload capacity, a 13-meter (42.6-foot) loading platform, and a tri-axle configuration delivering superior weight distribution, this low flatbed semi-trailer is the preferred choice for heavy equipment transport operators worldwide.

Low flatbed trailers are ideal for transporting heavy-duty vehicles such as tractors, excavators, bulldozers, rail vehicles, mining machinery, forestry equipment, and other heavily loaded goods. The low deck height not only improves stability but also makes loading and unloading significantly easier – heavy equipment can be driven or winched onto the platform with reduced ramp angles, minimizing the risk of damage during the loading process.

3-axle low flatbed semi-trailers are suitable for transporting heavy-duty vehicles such as tractors, special vehicles, rail vehicles, mining machinery, forestry machinery, and other heavily loaded goods.

Key Specifications

Specification	Details
Model	PM-3A-40T Lowbed
Overall Length	13,000 mm
Overall Width	3,000 mm
Overall Height	1,750 – 2,780 mm
Loading Platform Length	9,550 – 10,000 mm
Loading Platform Width	3,000 mm
Loading Platform Height	1,250 mm (reduced deck height)
Number of Axles	3
Axle Capacity	3 × 13 tons
Max. Payload	40 tons
Tare Weight	Approx. 8,500 – 10,500 kg
Main Beam Material	Q345B high-strength low-alloy steel
Main Beam Construction	Automatic submerged-arc welding
Main Beam Specification	Top flange: 14mm; Web: 6–8mm; Bottom flange: 16mm
Floor	3–5mm thick diamond/checkered plate
King Pin	JOST, 2″ (50mm) or 3.5″ (90mm), bolted
Landing Gear	28-ton capacity, two-speed
Suspension	Mechanical leaf spring (8–10 layers) – Air suspension optional
Axle Brand	FUWA 13-ton / BPW / customer-specified
Tires	12R22.5 / 315/80R22.5 / 12.00R20, 12 units
Brake System	Dual-line pneumatic, WABCO relay valve
Ramps	Mechanical or hydraulic loading ramps
Electrical System	24V with 7-pin ISO socket
Certifications	ISO 9001, CCC, ECE, GCC, DOT

Design & Construction

Low-Profile Platform – The Critical Advantage

The defining feature of this low flatbed semi-trailer is its reduced deck height – approximately 1,250mm from the ground. This low-profile design delivers several critical advantages for heavy equipment transport:

• Lower center of gravity – significantly improves vehicle stability during transit, reducing the risk of rollover when carrying tall, heavy machinery
• Height restriction compliance – enables transport of super-tall loads through bridges, tunnels, and overpasses with limited clearance
• Easier loading and unloading – reduced ramp angles make it safer and faster to drive or winch heavy equipment onto the trailer
• Improved fuel efficiency – lower profile reduces aerodynamic drag compared to higher-deck trailers

The platform features a 3–5mm thick diamond/checkered plate floor, providing superior grip for heavy equipment tracks and tires while preventing cargo shift during transit.

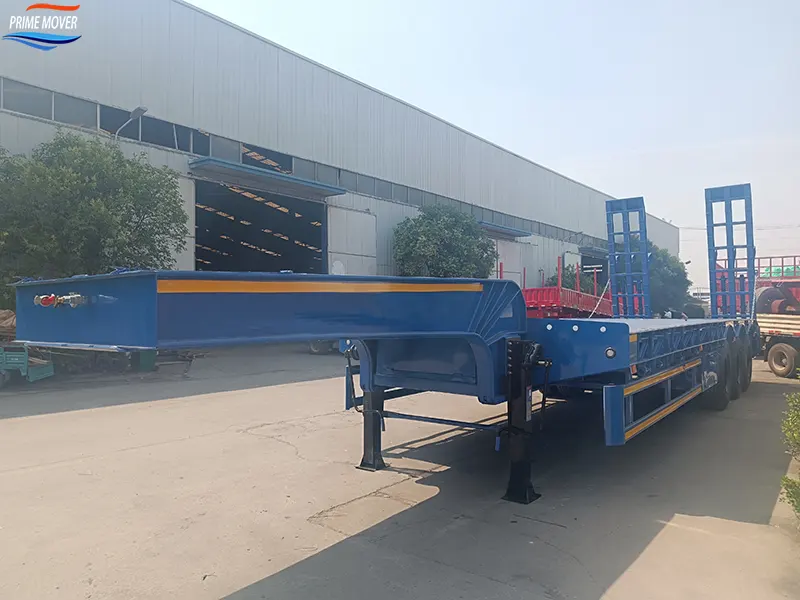

High-Strength Steel Chassis with Gooseneck Design

The chassis of our low flatbed semi-trailer features a gooseneck design – the front section of the frame rises to connect with the tractor’s fifth wheel, while the middle section forms the low-profile cargo platform. This concave or well-type frame structure is the hallmark of professional lowbed trailers, delivering the optimal balance between towing height and platform clearance.

The main beams are fabricated from Q345B high-strength low-alloy steel, with the following optimized plate thicknesses:

• Top flange: 14mm
• Web: 6–8mm
• Bottom flange: 16mm

The beams are welded using automatic submerged-arc welding processes, ensuring superior weld penetration, consistency, and strength compared to manual welding. The frame is designed with a through-beam structure – cross beams pass through the main beams and are welded integrally, providing exceptional torsional resistance and load-bearing capacity for heavy, concentrated equipment loads.

The step-type frame with I-section longitudinal beams delivers high rigidity and strength, capable of withstanding the extreme point loads imposed by heavy machinery.

Premium Component Integration

We equip every low flatbed semi-trailer with world-class components from trusted global brands:

Component	Specification	Brand
King Pin	2″ or 3.5″, bolted	JOST
Landing Gear	28-ton, two-speed	JOST
Axles	13-ton capacity	FUWA / BPW
Brake Relay Valve	Dual-line pneumatic	WABCO
Tires	12R22.5 / 315/80R22.5	12 units

These premium components ensure reliable performance, easy parts availability, and reduced total cost of ownership over the trailer’s lifetime.

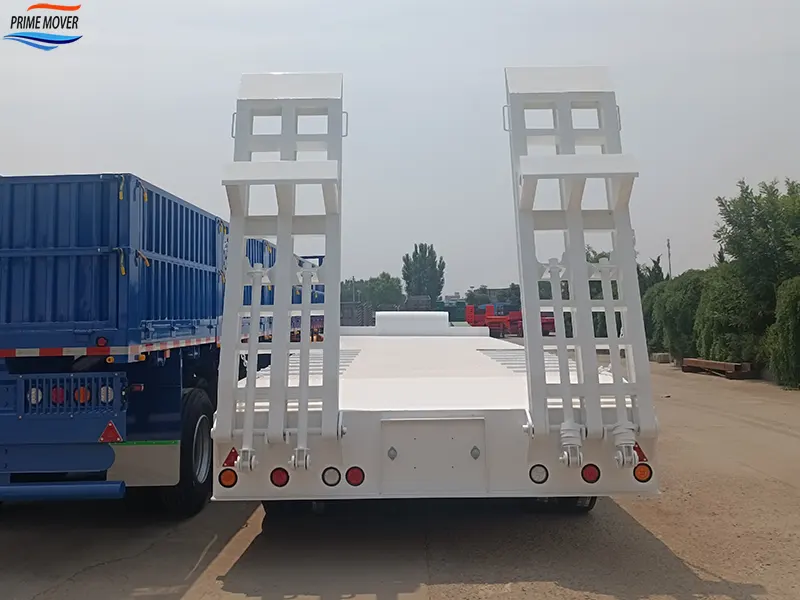

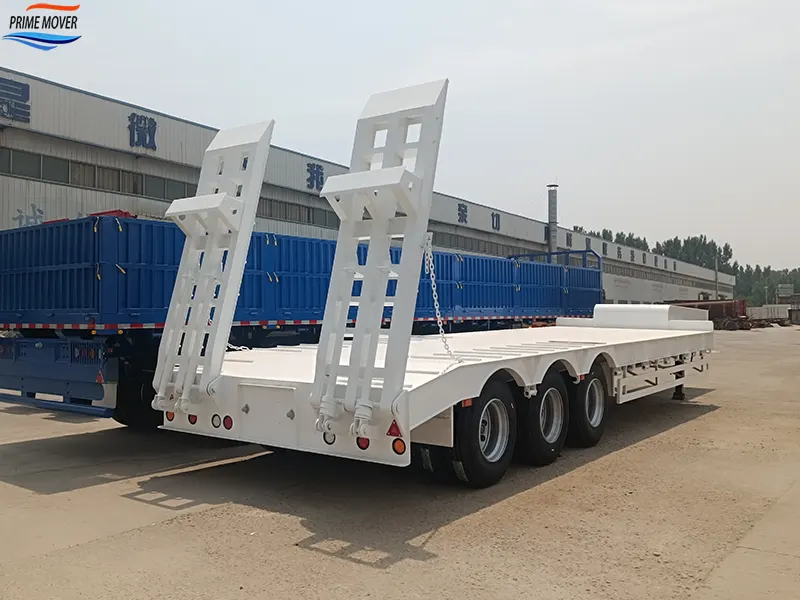

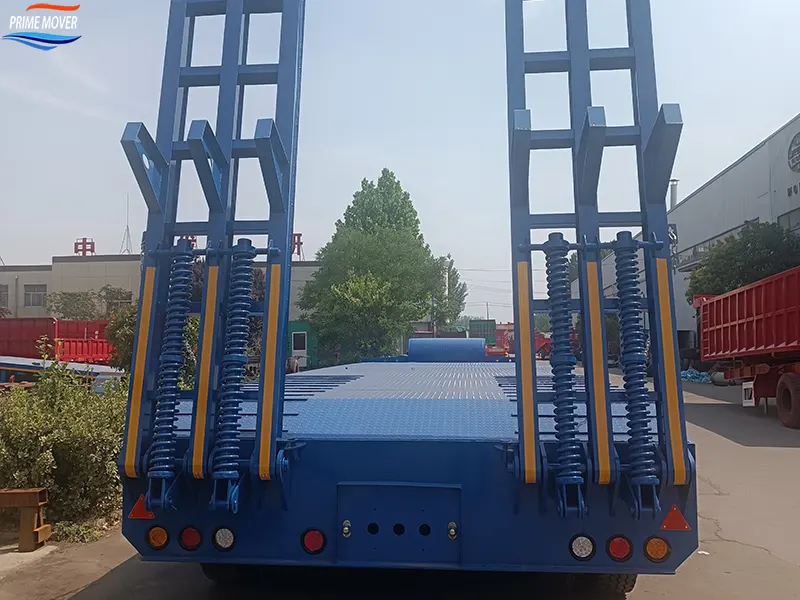

Loading Ramps – Mechanical or Hydraulic

The trailer is equipped with heavy-duty loading ramps at the rear, available in:

• Mechanical ramps – manually operated, robust and cost-effective
• Hydraulic ramps – powered operation for effortless loading and unloading of heavy equipment

The ramps are designed to accommodate the track width and ground clearance of excavators, bulldozers, and other heavy machinery, ensuring safe and efficient loading operations.

Comprehensive Surface Protection

Every trailer undergoes a thorough finishing process:

• Sandblasting/shot-blasting – for superior surface preparation
• Anti-corrosion primer – one coat
• High-durability top coats – two finish coats

This three-stage process ensures long-lasting protection against rust and corrosion – particularly important for trailers operating in construction, mining, and coastal environments.

3-Axle Configuration

The tri-axle configuration with three 13-ton axles delivers superior load distribution and stability for heavy equipment transport:

Feature	Benefit
Weight Distribution	Three axles distribute the 40-ton payload evenly, reducing stress on individual components and road surfaces
Road Stability	Enhanced stability for tall, heavy machinery – critical for highway transport
Braking Performance	Dual-line air brake system with WABCO valves across all three axles delivers superior stopping power
Tire Longevity	Load spread across 12 tires, extending service life and reducing replacement costs
Regulatory Compliance	Tri-axle configuration meets weight distribution requirements in most jurisdictions

Enhanced Suspension Options

The heavy-duty mechanical suspension features 8–10 layers of leaf springs, designed for heavy-duty loading and demanding road conditions. Optional air suspension is available, offering:

• Smoother rides – reducing fatigue on sensitive equipment
• Adjustable load leveling – maintaining optimal ride height under varying loads
• Reduced tare weight – improving payload efficiency

Optional Steering Axles

For enhanced maneuverability in tight job sites and construction yards, the rear two axles can be specified as steering axles. This configuration significantly reduces the turning radius, making it easier to navigate through restricted spaces – a critical advantage when delivering heavy equipment to urban construction sites or confined mining operations.

Applications – Where This Trailer Excels

The 40-Ton Three-Axle 13-Meter Low Flatbed Semi-Trailer serves a wide range of heavy transport applications:

Industry	Typical Cargo
Construction Equipment	Excavators, bulldozers, wheel loaders, backhoes
Mining	Crusher components, conveyor sections, mining machinery
Forestry	Forestry machinery, log loaders, heavy equipment
Agriculture	Large tractors, combines, agricultural machinery
Industrial Machinery	Generators, transformers, production equipment
Rail & Special Vehicles	Rail vehicles, special transport vehicles
Steel & Heavy Materials	Steel coils, heavy plates, pipe bundles
Power Generation	Wind turbine components, power plant equipment
Infrastructure	Bridge girders, precast concrete, highway construction equipment

Key Advantages

Low Center of Gravity – Superior Stability

The reduced deck height lowers the center of gravity, providing greater stability when transporting tall, heavy equipment. This is particularly critical for excavators and bulldozers with high centers of gravity, reducing the risk of rollover during cornering and crosswind conditions.

Height Restriction Compliance

The low-profile design enables transport of super-tall loads through bridges, tunnels, and overpasses with limited clearance – a capability that standard flatbed trailers cannot offer.

Easier Loading & Unloading

The low deck height reduces the loading ramp angle, making it safer and faster to drive or winch heavy equipment onto the trailer. This reduces the risk of damage during loading and minimizes turnaround time at job sites.

Versatile Heavy Equipment Transport

Purpose-built for the unique demands of heavy equipment transport, this low flatbed handles the concentrated point loads of tracked and wheeled machinery – capabilities that general-purpose flatbeds cannot match.

Durable Construction for Demanding Environments

Built with Q345B high-strength steel and automatic submerged-arc welding, the trailer withstands the rigors of construction sites, mining operations, and off-road conditions.

Customization Options

Prime Mover Industries offers extensive customization to match your specific operational requirements:

• Platform length - 9,500mm to 13,000mm working platform
• Platform width - 3,000mm standard or customized
• Deck height - reduced for specific clearance requirements
• Axle brands - FUWA (standard), BPW, or customer-specified
• Axle configuration - steering rear axles available
• Suspension - Mechanical leaf spring (standard) or air suspension
• King pin - 2″ or 3.5″, bolted or welded
• Tire specifications - 12R22.5, 315/80R22.5, or 12.00R20
• Brake system - Standard dual-line or EBS with ABS
• Ramps - Mechanical or hydraulic
• Color - Any RAL code
• Additional features - Toolboxes, spare tire racks, LED lighting, hydraulic gooseneck

Quality Assurance & Certifications

• ISO 9001:2015 - Quality Management System
• CCC - China Compulsory Certification
• ISO/TS16949 - Automotive Industry Quality Management
• ECE - European safety and lighting compliance
• GCC - Gulf Cooperation Council market approval
• DOT - US Department of Transportation compliance
• CE - European conformity marking
• 100% factory inspection - Every unit undergoes load test, brake test, and dimensional verification
• Third-party inspection - Available via SGS, BV, or TÜV at customer request

Why Choose Prime Mover Industries?

Advantage	Benefit
Heavy Equipment Specialists	Purpose-engineered for excavators, bulldozers, and mining machinery
Low-Profile Design	Lower center of gravity, height restriction compliance, easier loading
High-Strength Engineering	Q345B steel with gooseneck frame and automatic submerged-arc welding
Premium Components	JOST, WABCO, FUWA/BPW – lower TCO and readily available spare parts
Proven Durability	Sandblasted, primed, and double-coated for corrosion resistance
Global Export Track Record	Shipped to customers across 5 continents
Short Lead Times	25–35 days for standard orders
Competitive Pricing	Advanced manufacturing with cost-efficient production

Technical Specifications Summary

Parameter	Value
Overall Length	13,000 mm
Overall Width	3,000 mm
Platform Length	9,550 – 10,000 mm
Platform Width	3,000 mm
Deck Height	~1,250 mm
Tare Weight	~8,500 – 10,500 kg
Max Payload	40 tons
Axles	3 × 13T (FUWA/BPW)
Suspension	Mechanical / Air (optional)
Main Beam	Q345B steel, gooseneck frame
Flooring	3–5mm diamond plate
King Pin	JOST 2″ or 3.5″
Brake System	WABCO dual-line
Ramps	Mechanical / Hydraulic
Tires	12R22.5 / 315/80R22.5 (12 pcs)
Certifications	ISO 9001, CCC, ISO/TS16949, ECE, GCC, DOT, CE
