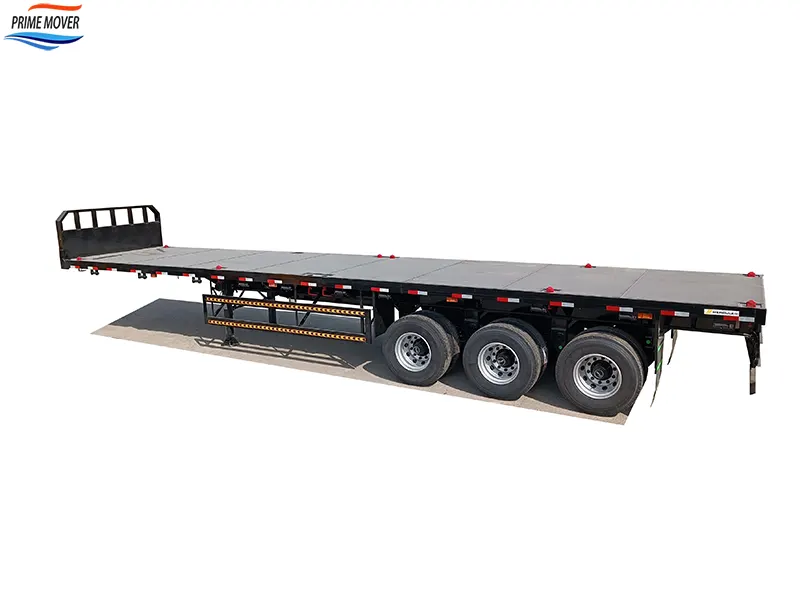

Flatbed Semi-Trailer with Front Axle Airbag Lift – Smart Efficiency, Maximum Versatility

1. Product Overview

Prime Mover Industries’ Front Axle Airbag Lift Flatbed Semi-Trailer redefines heavy-duty flatbed transportation by integrating intelligent pneumatic front axle lifting air suspension with a high-strength flatbed platform. Designed for cross-border logistics, construction, machinery and container haulage, this trailer balances fuel economy, cargo protection, road compliance and operational flexibility, perfectly matching the slogan Smart Efficiency, Maximum Versatility.

Key Unique Selling Points

Front Axle Airbag Pneumatic Lift System (Core Innovation)

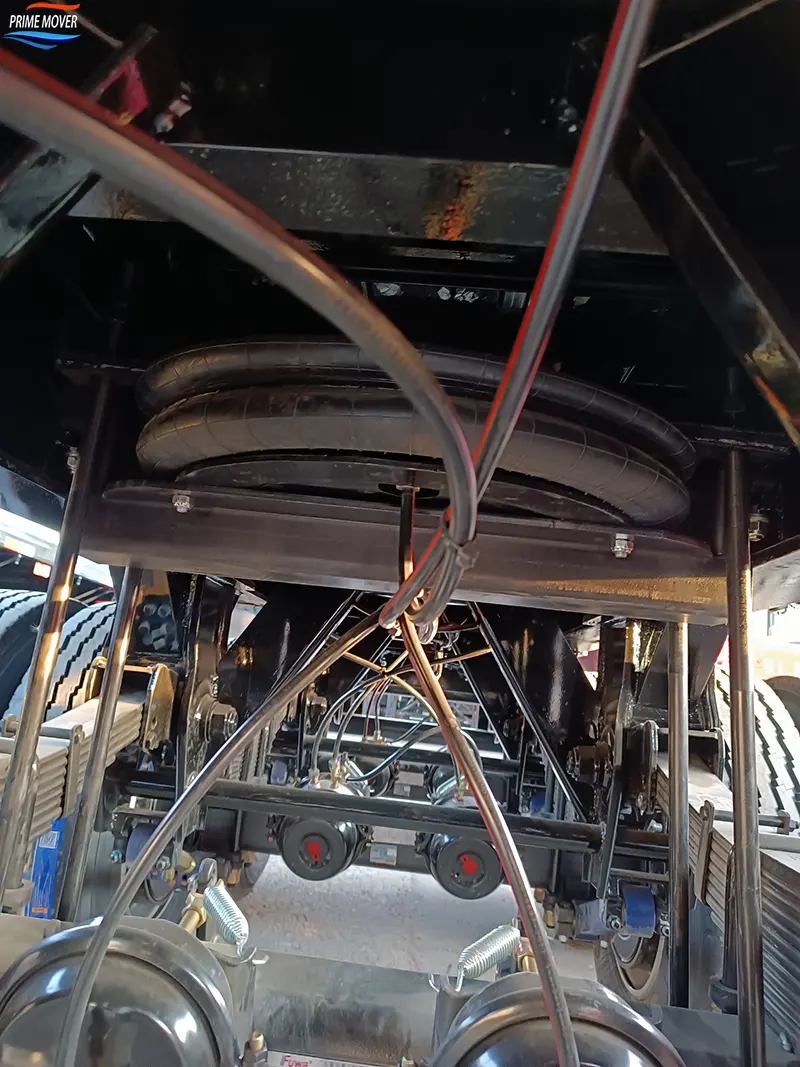

Independent airbag lift structure fitted on the front steer axle group. When running light-load or empty, operators inflate airbags to fully lift the front axle off the pavement, cutting rolling resistance drastically.

• Reduce tire wear by up to 40% and extend tire service life;
• Lower fuel consumption by 8–12% under empty/partial load trips;
• Less road surface abrasion, easier compliance with national axle weight limits across global markets;
• Improve low-speed maneuverability: fewer contact axles for tighter cornering in yards, ports and narrow construction roads.

Premium Full Air Suspension for Cargo Safety

European-standard multi-layer rubber airbags + heavy-duty hydraulic shock absorbers deliver constant chassis ride height regardless of load weight. Vibration isolation protects fragile machinery, steel coils, glass panels and precision equipment from bump damage on rough rural, mine or highway roads.

Ultra-Rugged Q345B High-Tensile Steel Frame

Deepened I-beam main girder with submerged arc full welding, 3mm anti-slip checkered steel flat deck. Heavy load-bearing capacity, anti-deformation, anti-corrosion sandblast + epoxy primer finish for coastal, humid and high-dust industrial environments.

Modular & Customizable Layout

Adjustable twist lock layout for 20ft/40ft containers; removable side stakes, lashing rings, and optional rear hydraulic loading ramps for excavator, forklift and wheeled machinery transport. All configurations can be customized to meet EU, GCC, DOT and African regional regulatory standards.

Complete Technical Specification Sheet (Standard 3-Axle Model)

Item	Standard Parameter	Optional Custom Upgrade
Overall Dimension	12400 × 2480 × 1580 mm	13m / 14.6m / 17m extended length
Tare Weight	6,800 kg	Lightweight high-strength steel (–500kg tare)
Max Payload	40 Ton (40,000 kg)	50–60T reinforced version for heavy machinery
Axle Configuration	3 × 13T heavy-duty axles (FUWA/BPW OEM)	4-axle / 5-axle upgrade for oversize loads
Suspension	Full air suspension + Front Axle Airbag Lift System	Height automatic leveling valve
Lift Airbag Spec	Imported European multi-convolution air springs, 12bar working pressure	Reinforced cold-resistant airbags for cold regions
Tires & Rims	12.00R22.5 tubeless tires, 9.00-22.5 steel rims	315/80R22.5 wide-base single tires
Main Beam	Q345B I-beam, 500mm depth; Top 14mm / Middle 8mm / Bottom 16mm plate	Q690 ultra-high strength steel for super-heavy transport
Flat Deck	3mm anti-slip checkered steel plate	Hardwood anti-slip floor for delicate cargo
Kingpin	JOST 2-inch bolted kingpin	3.5-inch kingpin for heavy-duty tractors
Landing Gear	Double-speed 28T heavy-duty landing legs	Hydraulic landing gear remote control
Brake System	WABCO relay valve, T30/30 brake chambers, ABS anti-lock	EBS electronic braking system
Air Tank & Circuit	45L air reservoir, full push-to-connect pneumatic pipeline	Corrosion-resistant stainless steel air pipes
Container Fittings	12 standard twist locks	Extra lashing rings, side stake pockets, removable guardrails

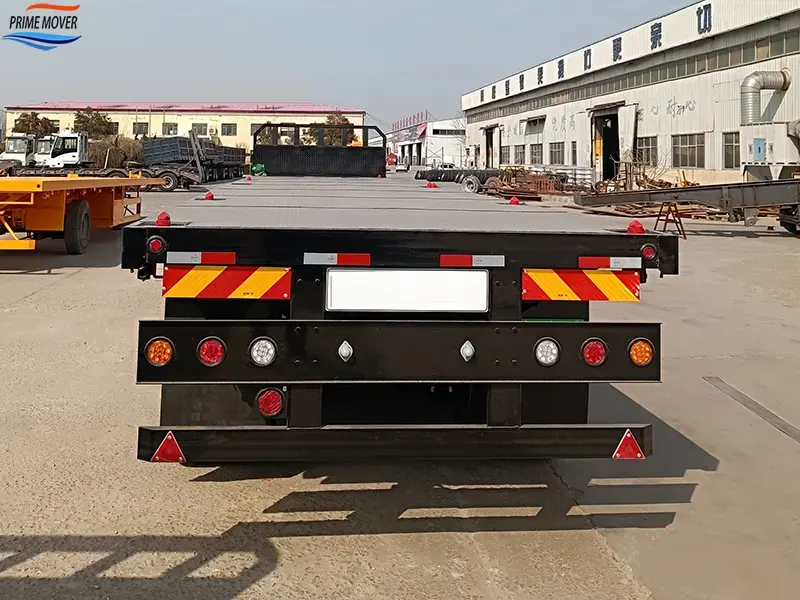

Lighting	Full LED waterproof light set with reflective marking	E-mark certified EU standard lamp kit
Certifications	ISO9001, CCC, DOT, GCC, CE, SGS	Custom regional certification for Africa/Middle East/Southeast Asia

3. Wide Application Scenarios – Maximum Versatility

The front axle airbag lift flatbed trailer fits multi-industry long-distance and short-haul transport, solving cost and compliance pain points for global fleet operators:

Container Logistics

Transport single 40ft or double 20ft shipping containers between ports, inland depots and distribution centers. Lift front axle when returning empty to slash tire and fuel costs for backhaul trips.

Construction & Engineering Machinery Haulage

Carry excavators, loaders, rollers, bulldozers, concrete mixers, generator sets and tower crane components. Smooth air suspension prevents precision hydraulic parts from vibration damage.

Steel & Heavy Industrial Cargo

Steel coils, steel plates, H-beams, aluminum ingots, precast concrete components, wind power accessories. Even load distribution from air suspension avoids local frame deformation.

General Bulk & Breakbulk Freight

Timber, stone slabs, glass panels, agricultural machinery, trucks, buses and oversized industrial equipment. Flexible flatbed surface supports cross lashing for irregular cargo shapes.

Cross-Border Regional Transport (Africa, Middle East, Southeast Asia)

Meet strict axle weight inspection standards at border customs. Lifting the front axle easily adjusts total axle load to avoid overweight fines on national highways.

4. Routine Maintenance Guide – Extend Service Life

Daily Pre-Trip Inspection (Mandatory Before Every Journey)

Airbag Lift System

• Visually check front lift airbags for cracks, bulges, oil contamination or abrasion; replace damaged airbags immediately.
• Test pneumatic control valve: confirm smooth lifting/lowering of front axle without air leakage from pipelines, joints or valves.
• Verify air pressure reaches 10–12bar when lifting axle; drain water from air tanks daily to avoid pipeline corrosion.

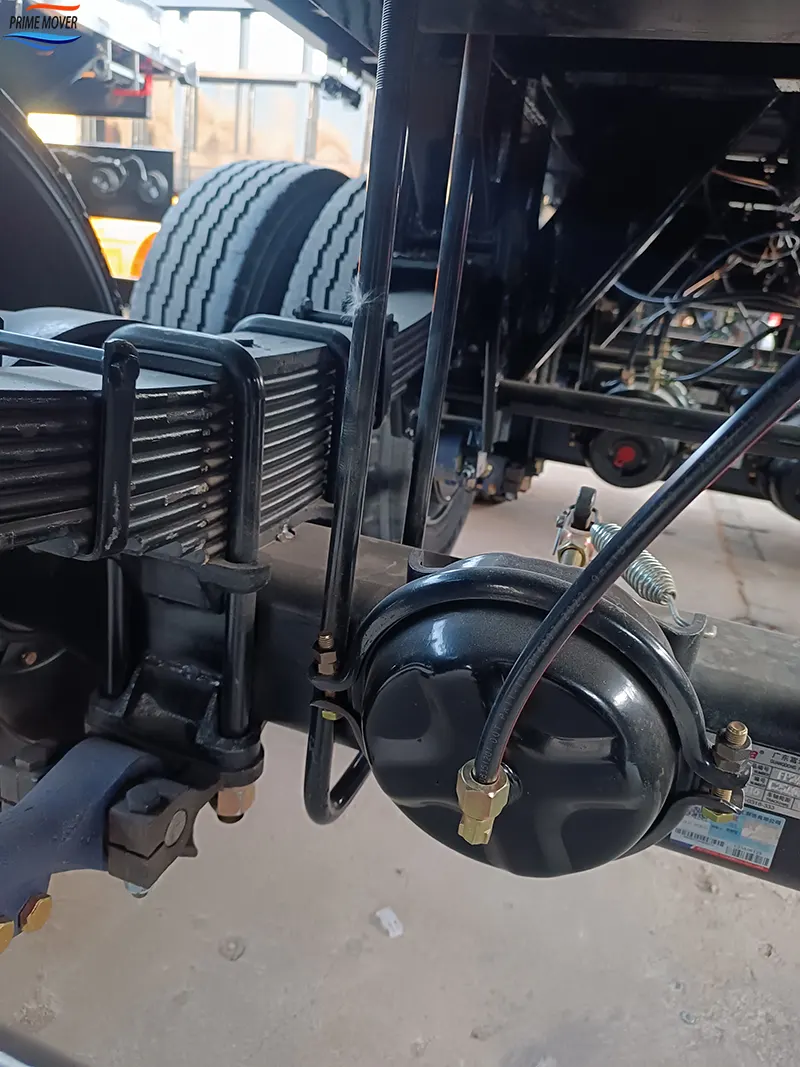

Suspension & Shock Absorbers

Inspect shock absorbers for oil leakage, loose suspension brackets and worn rubber bushings; tighten all U-bolt fasteners every 5,000km.

Tires & Axles

Check tire pressure, tread wear and sidewall damage; front axle tire wear will drop significantly if lift system works properly. Grease axle kingpins and wheel hubs weekly.

Brake & ABS System

Test ABS response, check brake chamber air leaks, clean dust from brake linings; replace worn brake pads timely.

Scheduled Periodic Maintenance

• Every 10,000 km: Full chassis bolt torque inspection, clean air filter of pneumatic control system, lubricate landing gear gears.
• Every 30,000 km: Dismantle and inspect front lift airbag brackets, replace aging air pipeline seals, full brake system overhaul.
• Every 100,000 km: Professional suspension calibration, airbag aging assessment, chassis anti-rust touch-up painting.

Forbidden Operations to Avoid Damage

• Do not overload beyond rated maximum payload; overload will permanently deform airbags and suspension arms.
• Do not lift front axle under full heavy load (only activate lift under ≤50% load or empty).
• Avoid long-term parking with front axle lifted; lower axle to ground to reduce airbag fatigue aging.

5. Prime Mover Industries Global After-Sales Service

We provide full-lifecycle support for all exported flatbed trailers, serving clients across 60+ countries including Africa, Middle East, Southeast Asia, Latin America and Europe:

Warranty Policy

• Main chassis frame, axles, air suspension lift structure: 60-month / 300,000 km warranty (whichever comes first).
• Core pneumatic components (airbags, control valves): 24-month warranty.
• Consumable parts (tires, brake pads, lamp bulbs, rubber seals): 6-month limited warranty.
• Damage from overloading, improper operation or natural wear is excluded from free warranty replacement.

24/7 Global Technical Support

Multilingual after-sales engineers online via email, WhatsApp and video call, responding to all fault reports within 4 working hours. Remote guidance for troubleshooting airbag lift, brake and suspension failures.

Global Spare Parts Supply Network

Central spare parts warehouse in China + regional stock points in Nigeria, Kenya, UAE, Vietnam and Kazakhstan. Fast sea/air delivery of all original OEM spare parts at factory cost for post-warranty maintenance.

On-Site Technical Service (Overseas Projects)

For bulk orders (≥10 units), we arrange professional engineers to conduct on-site delivery inspection, operation training and maintenance guidance at client’s yard or port. Custom operation & maintenance manuals (English, French, Spanish, Arabic versions) included with every shipment.

Customized Upgrade & Retrofit Service

Post-purchase modification available: add automatic air height control, hydraulic rear ramps, EBS braking system or extra lashing fixtures to match updated local transport regulations.

Closing Brand Slogan

Choose Prime Mover Industries Front Axle Airbag Lift Flatbed Semi-Trailer — Cut Operation Costs, Boost Transport Versatility, Secure Your Cargo, Maximize Long-Term Fleet Profit.

Contact our international sales team for customized drawings, quotation and regional compliance certification solutions.

Conclusion

Flatbed Semi-Trailer with Front Axle Airbag Lift – Smart Efficiency, Maximum Versatility

Prime Mover’s patented front axle airbag lift design slashes tire wear and fuel costs for empty backhauls, paired with full air suspension to safeguard all cargo types. Heavy-duty Q345 steel flatbed, customizable for containers, construction machinery and breakbulk freight. Global certification, long-term warranty and full after-sales spare parts support for worldwide fleet operators.
