Best 5 Axle Flatbed Trailer Specifications You Should Know

When it comes to heavy-duty cargo transportation, few trailer configurations match the capability of a 5-axle flatbed semi-trailer. Whether you are hauling steel coils, construction machinery, industrial equipment, or shipping containers, the 5-axle configuration delivers the payload capacity, weight distribution, and road stability that lighter trailers simply cannot provide.

But not all 5-axle flatbeds are created equal. From chassis materials to suspension systems, axle ratings to braking technology, the specifications you choose directly impact your payload capacity, fuel efficiency, maintenance costs, and overall ROI. Here are the best 5 axle flatbed trailer specifications you should know before making your next purchase.

Specification #1: Overall Dimensions — Length, Width & Deck Height

The physical footprint of your flatbed trailer determines what cargo it can carry and where it can legally operate. 5-axle flatbed trailers typically range from 40 to 53 feet in length, with width standardized at 8 feet 6 inches (2,540–2,550 mm) and deck height around 5 feet (1,550 mm) from the ground.

Key dimensional specifications to consider:

Dimension	Standard Range	Notes
Overall Length	40′ – 53′ (12,500 – 17,000 mm)	Extendable models up to 65′+ available
Trailer Width	8′6″ (2,540–2,550 mm)	Standard legal width in most markets
Deck Height	~5′ (1,550 mm)	Low-deck options down to 790 mm for specialized hauling
Deck Width (flatbed)	97–102 inches	Varies by manufacturer and configuration

The deck height is particularly critical — a lower deck height improves stability for tall cargo but may reduce ground clearance on rough terrain. Some manufacturers offer customizable dimensions, allowing buyers to specify length, width, and height based on their specific cargo profiles.

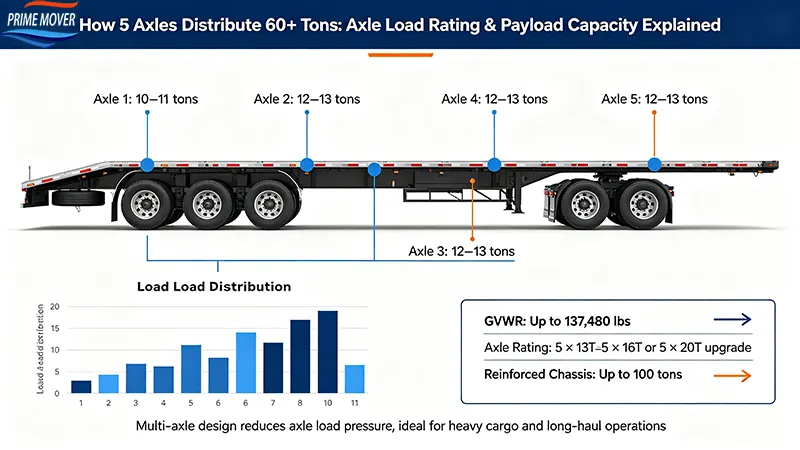

Specification #2: Load Capacity & Axle Ratings — The Payload Equation

The defining advantage of a 5-axle configuration is superior load distribution and higher payload capacity. By spreading the weight across five axles instead of three or four, the trailer reduces stress on individual axles, tires, and suspension components while maximizing legal payload.

Standard 5-axle flatbed specifications typically offer:

• Loading Capacity: Up to 60 tons (standard configuration)
• Axle Rating: 5 × 13-ton axles (FUWA / BPW or equivalent brands)
• Heavy-duty options: Reinforced chassis models can handle up to 100 tons
• GVWR (Gross Vehicle Weight Rating): Up to 137,480 lbs on high-spec models

A full-steel flatbed can weigh 15–25% more than an aluminum unit of similar length and axle package. That gap directly reduces your legal payload per trip. For fleets operating near weight limits, every pound saved on tare weight is a pound available for cargo.

The 5-axle advantage: Multi-axle designs significantly reduce axle load pressure, making them suitable for heavy cargo and long-haul logistics operations. The more axles there are, the greater the load capacity, ranging from 20 to 150 tons depending on configuration.

Specification #3: Chassis Material — Steel, Aluminum, or Combo

Material selection is one of the most consequential decisions you will make. It affects payload capacity, maintenance costs, corrosion resistance, and resale value.

Material	Weight	Cost	Durability	Best For
High-Strength Steel (Q345B)	Heaviest	Lowest	Highest impact resistance	Concentrated loads, rough roads, heavy machinery
Aluminum Alloy	Lightest (15–25% lighter)	Highest	Corrosion-resistant, deflects more	Long-haul, weight-sensitive freight
Combo (Steel + Aluminum)	Mid-range	Mid-range	Balanced	Mixed-use fleets

High-strength Q345B steel is the industry standard for 5-axle flatbed chassis, offering excellent resistance to bending and torsion under continuous heavy loads. Precision robotic welding and reinforced structural layout ensure long-term durability even in harsh operating environments.

Aluminum flatbeds are significantly lighter — a full-steel flatbed can weigh 15–25% more than an aluminum unit of similar length and axle package. As one industry expert notes, “If you’re close to maxing out your load with a steel trailer, that extra 2,000 to 2,500 pounds can be the difference between two trips or one”.

Combo designs pair a steel main beam (for strength where it matters most) with aluminum flooring, crossmembers, and side rails. You get beam strength where it matters and weight savings everywhere else.

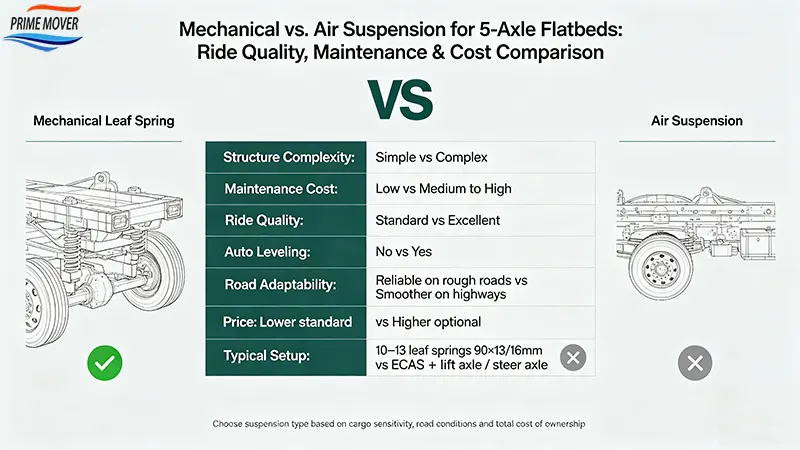

Specification #4: Suspension System — Mechanical vs. Air Ride

The suspension system determines ride quality, cargo protection, and maintenance requirements. 5-axle flatbeds typically offer two main suspension types:

Mechanical Suspension (Leaf Spring):

• Simple structure with low maintenance costs
• More reliable performance on bumpy and complicated road conditions
• Standard on most heavy-duty 5-axle configurations
• Typical specification: multi-leaf springs (10–13 layers) sized 90×13 mm or 90×16 mm

Air Suspension:

• Automatic height adjustment for load leveling
• Excellent shock absorption — reduces damage to fragile or precision cargo
• Smoother rides and reduced fatigue during long-haul operations
• Available as an optional upgrade on most 5-axle models

Advanced options include ECAS electronically controlled air suspension with lift axles and steering axles. Some high-end models feature five-axle air-suspended flatbed chassis with multiple lift and steering axles for maximum flexibility.

Specification #5: Braking System & Safety Features

Safety compliance is non-negotiable — and 2026 brings updated regulations across multiple jurisdictions.

Standard braking specifications for 5-axle flatbeds:

Component	Specification
Brake System	Dual-line pneumatic air-brake system
ABS (Anti-lock Braking System)	Optional on most models; WABCO brand 4S/2M available
EBS (Electronic Braking System)	Available on premium models; EBS 4S/3M configuration
Parking Brake	Spring-loaded on axles 1, 2, and 3 when stationary

EBS systems with spring brakes provide superior braking performance and meet European Standards. WABCO or Haldex brand ABS/EBS systems are commonly used for international road compliance.

Additional safety features to specify:

• 24V LED lighting system for improved visibility
• King Pin: 50 mm (2″) or 90 mm (3.5″) options
• Landing Gear: 28-ton two-speed heavy-duty
• Tires: 12R22.5 heavy-duty tubeless, 20 units

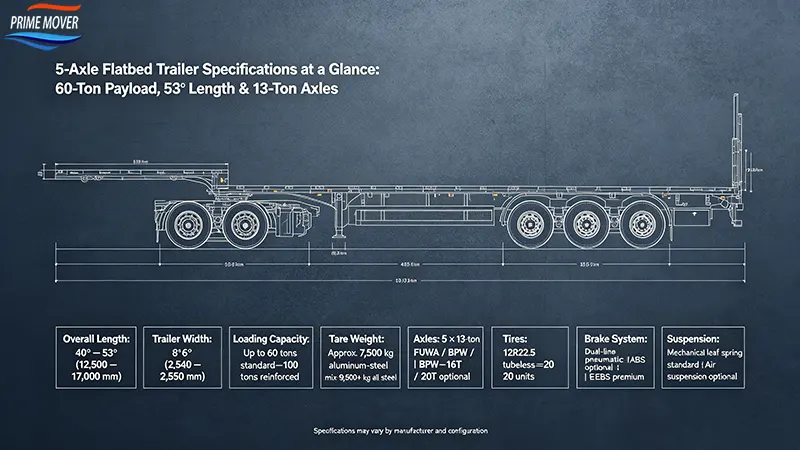

Putting It All Together: The Complete 5-Axle Flatbed Specification Sheet

A well-specified 5-axle flatbed trailer combines all of these elements into a cohesive package. Here is a representative specification from a leading manufacturer:

Specification	Detail
Trailer Type	5 Axle Flatbed Semi Trailer
Overall Dimensions	12,500 × 2,500 × 1,550 mm
Loading Capacity	Up to 60 tons
Tare Weight	Approx. 7,500 kg
Axles	5 × 13-ton FUWA / BPW
Suspension	Mechanical multi-leaf spring (air suspension optional)
Platform Plate	3 mm diamond plate
Tires	12R22.5 heavy-duty (20 units)
Wheel Rims	9.0 × 22.5 steel
Brake System	Dual-line pneumatic (ABS optional)
King Pin	50 mm or 90 mm
Landing Gear	28-ton two-speed
Lighting	24V LED system

For ultra-heavy applications, reinforced chassis options can handle up to 100 tons with upgraded axle ratings (16T or 20T per axle) and heavier main beam construction (beam height 500mm, top plate 20mm, bottom plate 24mm).

Prime Mover Industries: Your Partner in Heavy-Duty Flatbed Solutions

As a Hong Kong-based enterprise established in 2014, Prime Mover Industries has positioned itself as a specialized manufacturer and global exporter of semi-trailers, serving the diverse transportation needs of construction, logistics, agriculture, and heavy industry sectors worldwide.

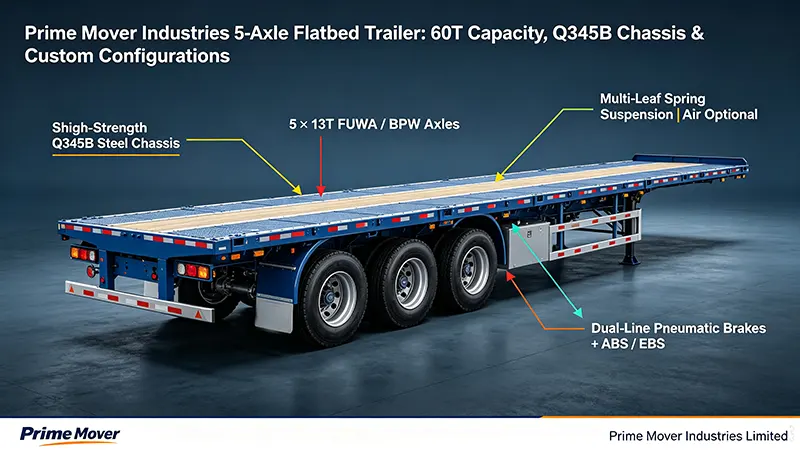

The company's 5-axle flatbed trailer product line is engineered with high-strength Q345B steel chassis, reliable FUWA or BPW axles, and customizable suspension and braking systems to meet international standards. Whether you need a standard 60-ton capacity model or a reinforced 100-ton heavy-haul configuration, Prime Mover Industries delivers cost-competitive, customizable solutions that maximize payload, reduce maintenance costs, and improve overall operational efficiency.

With a strategic headquarters in one of the world's busiest logistics hubs, Prime Mover Industries offers international clients access to Asia-Pacific's dynamic growth markets while facilitating efficient global exports. The company's commitment to quality control and customer-specific customization ensures that every 5-axle flatbed trailer meets the rigorous demands of heavy-duty logistics — from container transport and steel structures to construction materials and industrial equipment.
