Top 6 Flatbed Trailer Maintenance Tips to Extend Service Life in 2026

Flatbed trailers are the backbone of open-deck freight operations worldwide. They haul steel, lumber, machinery, containers, and construction materials across millions of miles every year. But unlike enclosed vans, flatbed trailers face direct exposure to rain, road salt, UV radiation, and physical impact from loading equipment — making them particularly vulnerable to premature wear and structural fatigue.

The financial stakes are significant. A new 3-axle flatbed trailer costs $10,000–$18,000 FOB China or $25,000–$45,000 in Western markets. With proper maintenance, that investment can deliver 12–15 years of reliable service. Without it, major structural repairs or premature replacement can cut that lifespan in half — destroying ROI and disrupting fleet operations.

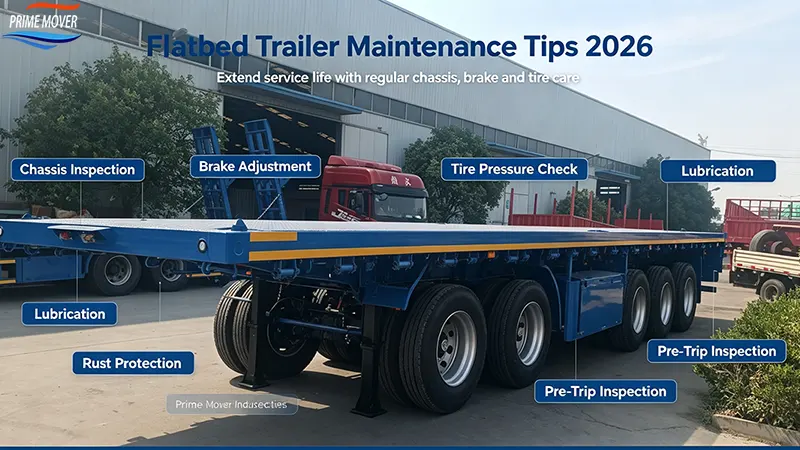

This guide covers the Top 6 flatbed trailer maintenance tips that fleet operators should implement in 2026 to extend service life, reduce downtime, and protect their investment. Each tip includes specific inspection intervals, cost data, and actionable procedures for flatbed trailer maintenance.

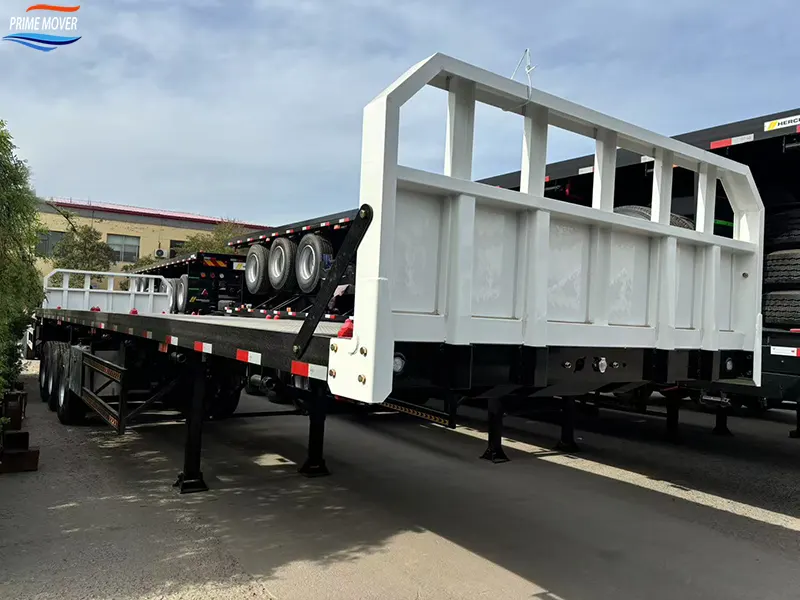

Tip #1: Chassis & Main Beam Inspection — The Structural Foundation

The chassis and main beam form the structural backbone of every flatbed trailer. They carry the entire payload and absorb the dynamic forces of braking, cornering, and road impacts. Main beam cracks are the single most expensive flatbed trailer repair — often costing $3,000–$8,000 or more depending on severity.

What to Inspect

How to Inspect

• Clean the chassis first. Dirt, grease, and road grime hide cracks and corrosion. Use a pressure washer before inspection.
• Use a flashlight and mirror. Inspect the entire main beam length — especially the web-to-flange weld zones where stress concentrates. These areas are the most common crack initiation points.
• Check for rust bleeding. Surface rust is normal. But orange-brown staining along a weld seam often indicates a crack underneath the paint. Tap the area with a hammer — a dull sound may indicate internal corrosion or delamination.
• Measure beam deflection. With the trailer empty, measure the distance from the bottom of the main beam to the ground at the center and at both ends. Excessive deflection (more than 10 mm difference) may indicate structural fatigue.
• Check all bolts. Kingpin bolts, suspension bracket bolts, and cross-member bolts should be torqued to manufacturer specifications. Loose bolts cause elongation of bolt holes and eventual structural failure.

The Corrosion Threat

The Q345B steel main beam used in most flatbed trailers has a yield strength of 345 MPa — excellent for load-bearing. But Q345B is not inherently corrosion-resistant. The West African fleet case study found that 4 out of 10 trailers from a supplier using thin paint films developed main beam cracks in less than 12 months, with corrosion beginning under the paint layer.

Prevention: Specify complete chassis sandblasting + 2 coats anticorrosive primer + 2 coats final paint at the time of order. If your trailer is already in service, inspect for paint blistering or peeling — these are early warning signs of corrosion.

Repair vs. Replace Decision

Pro Tip: Keep a maintenance log for each trailer. Track inspection dates, findings, and repairs. This documentation is invaluable when making repair-vs-replace decisions — and when selling the trailer.

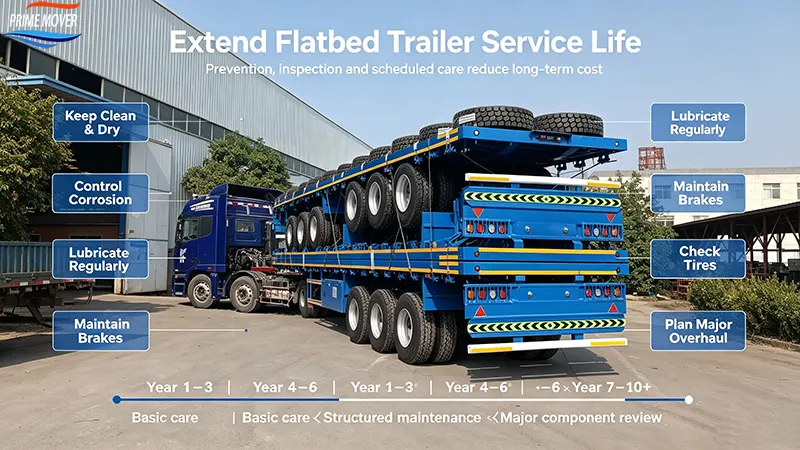

Tip #2: Brake System Maintenance — Safety & Compliance

The braking system is the most safety-critical component on any flatbed trailer. For trailers operating in the 25.1–50 ton capacity segment — which represents 35% of the global flatbed market — brake failure is not an inconvenience; it is a catastrophic risk.

Brake System Inspection Checklist

The Air Leak Test

Air leaks are the most common brake system deficiency. A single leaking brake chamber can reduce braking force by 15–20% — dramatically increasing stopping distance on a loaded trailer.

How to test for air leaks:

• Build system pressure to 100 psi (6.9 bar)
• Shut off the engine and apply the brakes fully
• Wait 5 minutes
• Maximum allowable pressure loss: 3 psi (0.2 bar) for a single vehicle; 4 psi (0.28 bar) for a tractor-trailer combination

If pressure loss exceeds these limits, use a soapy water solution to check all connections, hoses, and chambers. Bubbles reveal the leak location.

ABS & EBS Maintenance

Modern flatbed trailers increasingly specify ABS (Anti-lock Braking System) or EBS (Electronic Braking System) with RSS (Roll Stability System). These systems require specialized maintenance:

• ABS Sensors: Clean the sensor head and check the gap between sensor and tone ring. A gap of 0.5–1.5 mm is typical — consult your manufacturer's specification.
• EBS Diagnostics: Use a diagnostic tool to read fault codes at every PM service. Fault codes that are ignored can disable the entire EBS system.
• RSS Calibration: Roll stability systems require recalibration after suspension work or axle replacement.

The Data: Roadside breakdowns cost $500–$1,000 on average. Fleets that perform predictive maintenance based on brake system data can reduce maintenance costs by 25–40%.

Tip #3: Tire & Axle Maintenance — Where the Rubber Meets the Road

Tires are the second-largest operating cost for flatbed fleets after fuel. A typical 3-axle flatbed runs 12 tires (12R22.5 tubeless). At $300–$500 per tire, a full set represents a $3,600–$6,000 investment — and proper maintenance determines whether that investment lasts 40,000 miles or 80,000 miles.

Tire Inspection Protocol

The Pressure-Payload Connection

Underinflation is the number one cause of tire failure on flatbed trailers. A tire that is 20% underinflated runs 15% hotter and wears 25% faster than a properly inflated tire.

The data:

• Proper tire pressure monitoring can increase tire lifespan by up to 9%
• Fuel efficiency can improve by up to 4% when recommended pressures are maintained
• Even a 10% deviation in tire pressure increases fuel consumption by more than 250 liters over 120,000 km

For flatbed trailers specifically: The uneven load distribution common in flatbed operations (steel coils on one side, machinery on the other) makes regular pressure checks even more critical.

Axle Maintenance

The 3-axle configuration that dominates the flatbed market — 42% market share — uses three axles to distribute load. Each axle requires:

• Wheel Bearing Inspection: Check for play, noise, and grease condition. Repack or replace bearings every 50,000–60,000 miles.
• Axle Alignment: Misaligned axles cause uneven tire wear and increased rolling resistance. Check alignment every 12 months or after any impact.
• Axle Seals: Leaking seals allow grease to escape and water to enter. Replace immediately — a $20 seal prevents a $500 bearing replacement.
• Spindle Condition: Inspect for scoring, pitting, or corrosion. Light polishing is acceptable; deep scoring requires axle replacement.

Pro Tip: Use a laser alignment tool for axle alignment. This provides precision far beyond string-and-tape methods and typically costs $200–$400 for a full trailer alignment — a fraction of the cost of a single prematurely worn tire set.

Tip #4: Suspension System Maintenance — Ride Quality & Load Management

The suspension system determines how the trailer handles loads, absorbs road impacts, and protects both cargo and chassis. For flatbed trailers, suspension choice — mechanical leaf spring vs. air ride — significantly impacts maintenance requirements.

Mechanical Leaf Spring Maintenance

Most heavy-duty 3-axle flatbeds use multi-leaf spring suspension with 10–13 layers of 90×13 mm or 90×16 mm spring steel. Maintenance requirements:

Common failure point: The center bolt that holds the leaf spring pack together. A broken center bolt allows the leaves to shift, causing misalignment and accelerated wear. Inspect this bolt at every PM service.

Air Suspension Maintenance

Air suspension systems are increasingly popular for their superior ride quality and 2–3× longer service life compared to leaf springs. However, they require different maintenance:

The ROI of air suspension: Based on 2025 fleet audits across Germany, Poland, and UAE, the breakeven point for air suspension occurs at 18 months for fleets averaging >75,000 km/year.

Suspension Lubrication

• Leaf spring bushings: Grease every 10,000 miles
• Equalizer bushings: Grease every 10,000 miles
• Air suspension pivot points: Grease every 15,000 miles
• Use lithium-complex grease — it resists water washout and maintains viscosity across temperature extremes

Tip #5: Corrosion Prevention & Coating Maintenance

Corrosion is the silent killer of flatbed trailers. Unlike a crack or broken spring — which announces itself immediately — corrosion works slowly, invisibly, and relentlessly. By the time rust is visible on the surface, the structural damage underneath may already be significant.

The Corrosion Cost

The West African fleet case study documented that trailers with inadequate paint protection developed main beam cracks in less than 12 months — cracks that began as corrosion under the paint layer. The repair costs were 3–5× higher than the cost of proper initial coating.

Coating System Specifications

Annual Corrosion Inspection

Touch-Up Best Practices

• Clean the area thoroughly. Remove all dirt, grease, and loose paint. Use a wire brush or grinder to expose bare metal.
• Apply primer immediately. Bare steel begins to rust within hours in humid conditions. Don't leave bare metal exposed overnight.
• Use the correct primer. Epoxy primer for bare metal; zinc-rich primer for areas subject to heavy abrasion.
• Apply topcoat within the recoat window. Most primers have a maximum recoat time (typically 7–30 days). If exceeded, sand the primer before applying topcoat.
• Don't paint over rust. Painting over rust traps moisture and accelerates corrosion. Remove all rust before painting.

Pro Tip: Schedule a full chassis repaint every 3–4 years for trailers operating in coastal or northern climates with road salt. The cost ($1,500–$3,000) is far less than the cost of structural repair or premature replacement.

Tip #6: Electrical System & Lighting Maintenance

Electrical failures are the most common cause of roadside inspections and out-of-service violations for flatbed trailers. A single non-functioning brake light or turn signal can result in a $100–$500 fine and a delayed load.

Electrical System Inspection

The 24V LED Advantage

Modern flatbed trailers increasingly use 24V LED lighting systems instead of incandescent bulbs. LED advantages:

• Longer life: 50,000+ hours vs. 2,000–5,000 hours for incandescent
• Lower power draw: Reduces alternator load and improves fuel efficiency
• Vibration resistance: No filament to break — critical for flatbed trailers operating on rough roads
• Instant illumination: Faster response time improves safety

The trade-off: LED lights cost more upfront ($15–$40 per light vs. $3–$8 for incandescent) but last 10–25× longer, making them more cost-effective over the trailer's service life.

Wiring Best Practices

• Use loom or conduit. Exposed wires chafe against the chassis and short out. Protect all wiring with split loom or conduit.
• Seal all connections. Use heat-shrink connectors with adhesive lining — not crimp connectors. Moisture is the enemy of electrical connections.
• Ground properly. A poor ground causes dim lights, flickering, and intermittent failures. Clean the frame ground point and use star washers for solid contact.
• Test with a multimeter. Don't just visually inspect — measure voltage at each light. A reading below 12V (for a 12V system) indicates resistance in the circuit.
• Keep a spare kit. Carry spare bulbs, fuses, and connectors. A $20 spare kit can prevent a $500 roadside repair bill.

Preventive Maintenance Schedule: The Complete Calendar

Consolidating all six tips into a practical flatbed trailer maintenance calendar:

The ROI of Preventive Maintenance

The data supports preventive maintenance: Fleets that move to a "preventative health" model have slashed maintenance costs by an average of 24%. Predictive maintenance based on data can reduce maintenance costs by 25–40% and has saved one fleet over $1.3 million in a single year across a 3,000-trailer fleet.

Prime Mover Industries: Built for Maintainability

Prime Mover Industries — a Hong Kong-based manufacturer and global exporter established in 2014 — builds flatbed trailers engineered for long service life and easy maintenance. The company serves construction, logistics, agriculture, and heavy industry clients across Africa, Southeast Asia, the Middle East, and beyond.

Maintenance-friendly design features across the Prime Mover flatbed trailer line:

Prime Mover Industries offers factory-direct pricing, third-party inspection support (SGS, BV), and full export documentation. For fleet operators seeking a flatbed trailer that delivers 12–15 years of reliable service with proper maintenance, Prime Mover delivers the build quality and specification flexibility to match your operating profile.

Conclusion

The Top 6 flatbed trailer maintenance tips outlined in this guide — chassis inspection, brake system care, tire and axle maintenance, suspension service, corrosion prevention, and electrical system upkeep — form a comprehensive preventive maintenance program that can extend trailer service life from 6–8 years to 12–15 years.

The math is compelling: preventive maintenance costs $1,200–$2,000 per year but saves $13,000–$20,000 over 10 years compared to reactive repairs and premature replacement.

The most important takeaway: Maintenance is not an expense — it is an investment in asset longevity. A flatbed trailer that receives regular inspection, timely lubrication, proper tire care, and corrosion protection will outlast and outperform a neglected trailer by 5–7 years. For fleet operators in 2026, that difference is the definition of ROI.
